Midmark M9 - M9; M9 D Control PC Board

SECTION VI
PARTS LIST
M9 / M9D
Page 6-10
© Midmark Corporation 2002 SF-1827 Rev. 9/10 Printed in U.S.A.

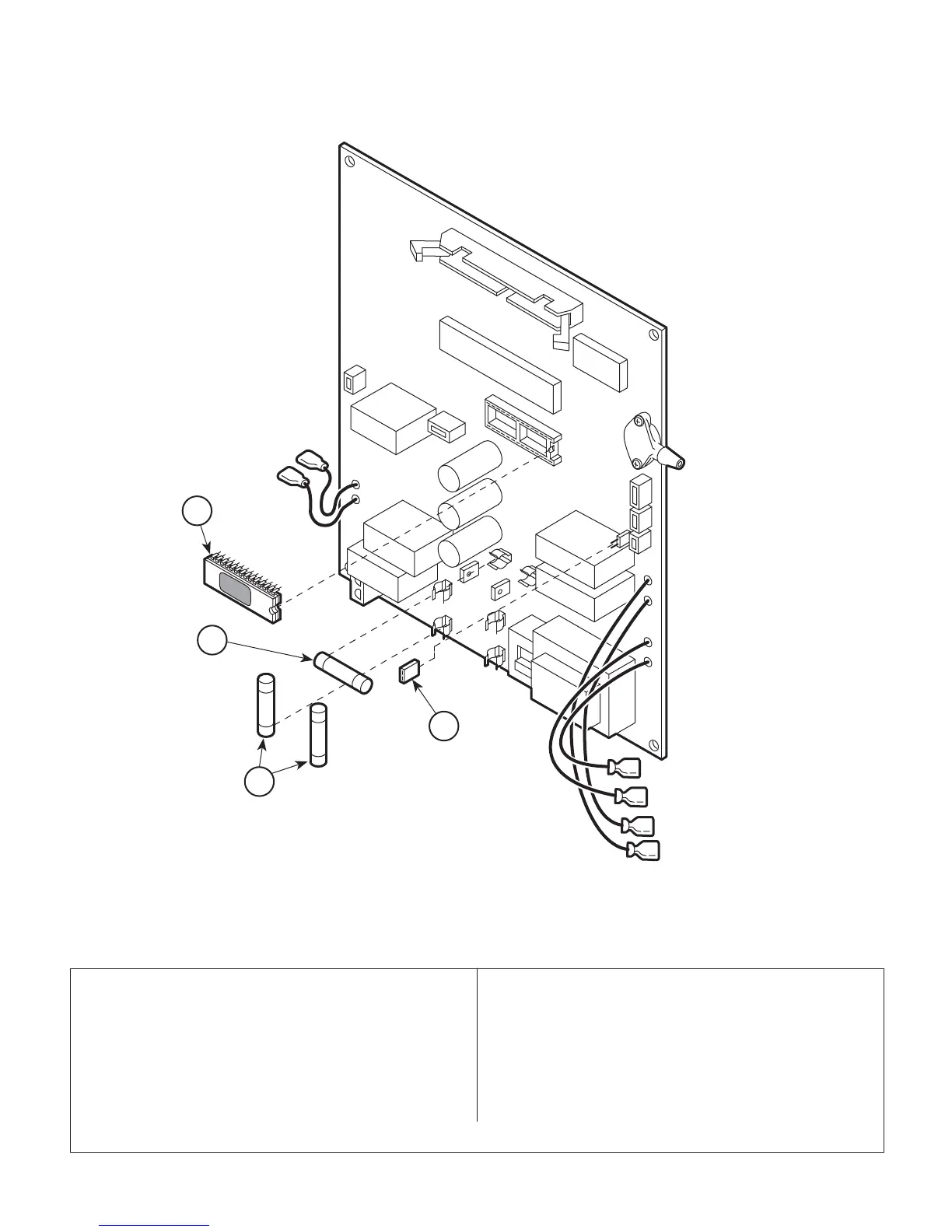

M9 / M9D Control PC Board
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
• Control PC Board {115 V Domestic}
(Includes Item 1thru 3) .......................... 1
• Control PC Board {230 V Export}
(Includes Item 1 thru 3) ......................... 1
• Control PC Board {100 V Export}
(Includes Item 1 thru 4) ......................... 1
1 • • M9 EPROM ...................................... Ref
2 • 015-0346-08 • Printer Fuse (3 amp/250 V) ................. 1
3 • 015-0346-07 • Line Fuse (15 amp/250 V) {Used on
115 V Domestic Units Only} ................ 2
• 015-0346-11 • Line Fuse (8 amp/250 V) {Used on
230 V Export Units Only} ..................... 2
• 015-0346-06 • Line Fuse (20 amp/250 V) {Used on
100 V Export Units Only} ..................... 2
4 • 015-0880-00 • 2 Position Jumper {Used on 230 V &
100 V Export Units Only} ..................... 1
MA2220-01
1
2
3
4
ATTENTION
Control PC board is no longer available.
Please contact Midmark Technical Service for information about the PC board rebate program.
(Some restrictions may apply)
