SECTION VI
PARTS LIST
M9 / M9D

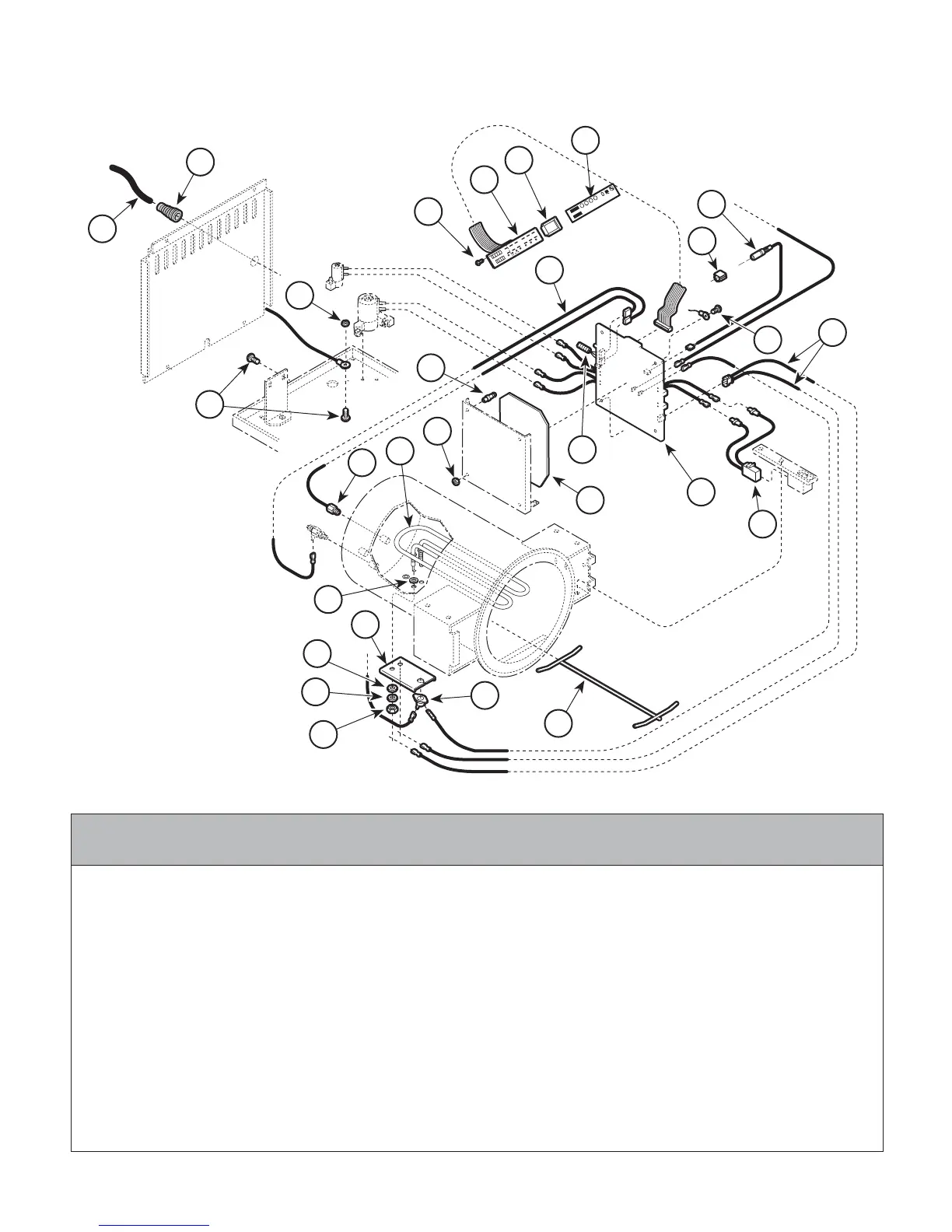

Electrical Components
Always Specify Model & Serial Number
Item Part No. Description Qty.
1 Cordset (Refer to Wiring Diagram) ........ 1
2 015-1137-00 Strain Relief Bushing ............................. 1
3 002-0370-00 Thermostat ........................................... 1
4 057-0425-00 Spacer Assembly .................................. 1
5 040-0010-75 Screw ................................................... 1
6 H225617 Bracket ................................................. 1
7 040-0006-04 Screw ................................................... 6
8 002-0369-02 Display PC Board .................................. 1
9 053-0454-00 Display Gasket ..................................... 1
10 061-0531-00 Display Overlay .................................... 1
11 PCB/Printer Harness (Refer to "Printer
Components" Elsewhere) ...................... 1
12 H97949 Nut ....................................................... 2
13 040-0010-46 Screw ................................................... 1
14 015-0657-00 PCB/Heater Harness ............................ 1
15 002-0362-00 Switch Assembly ................................... 1
16 Control PC Board (Refer to "Control PC
Board" Elsewhere) ............................. Ref
17 015-0257-02 Flex Guard Tubing ................................ 1
18 015-0654-00 Chamber Level Sensor Harness ........... 1
19 045-0001-56 Lockwasher .......................................... 2
20 053-0455-00 Insulator ................................................ 1
21 053-0295-01 Standoff ................................................. 3
22 041-0010-04 Locknut ................................................. 1
23 002-0357-00 Temperature Probe Assembly ............... 1
24 H98137 Gasket .................................................. 2
25 002-0367-00 Heat Element (Includes Item 24) ............ 1
26 H97971 Washer ................................................. 2
27 015-1395-00 Tubing Flex Guard ................................. 1
Item Part No. Description Qty.
Used on Units with Serial Numbers:
FF1055 and FG1138 - thru Present
MA442901
© Midmark Corporation 2002 SF-1827 Rev 9/07 Page 6-9.4 Printed in U.S.A.
4
11
6
3
12
18
15
14
7
8
9
10
2
1
26
25
24
23
22
21
20
19
17
16
13
5
22
27
