SECTION VI
PARTS LIST
M9 / M9D
Page 6-9.3

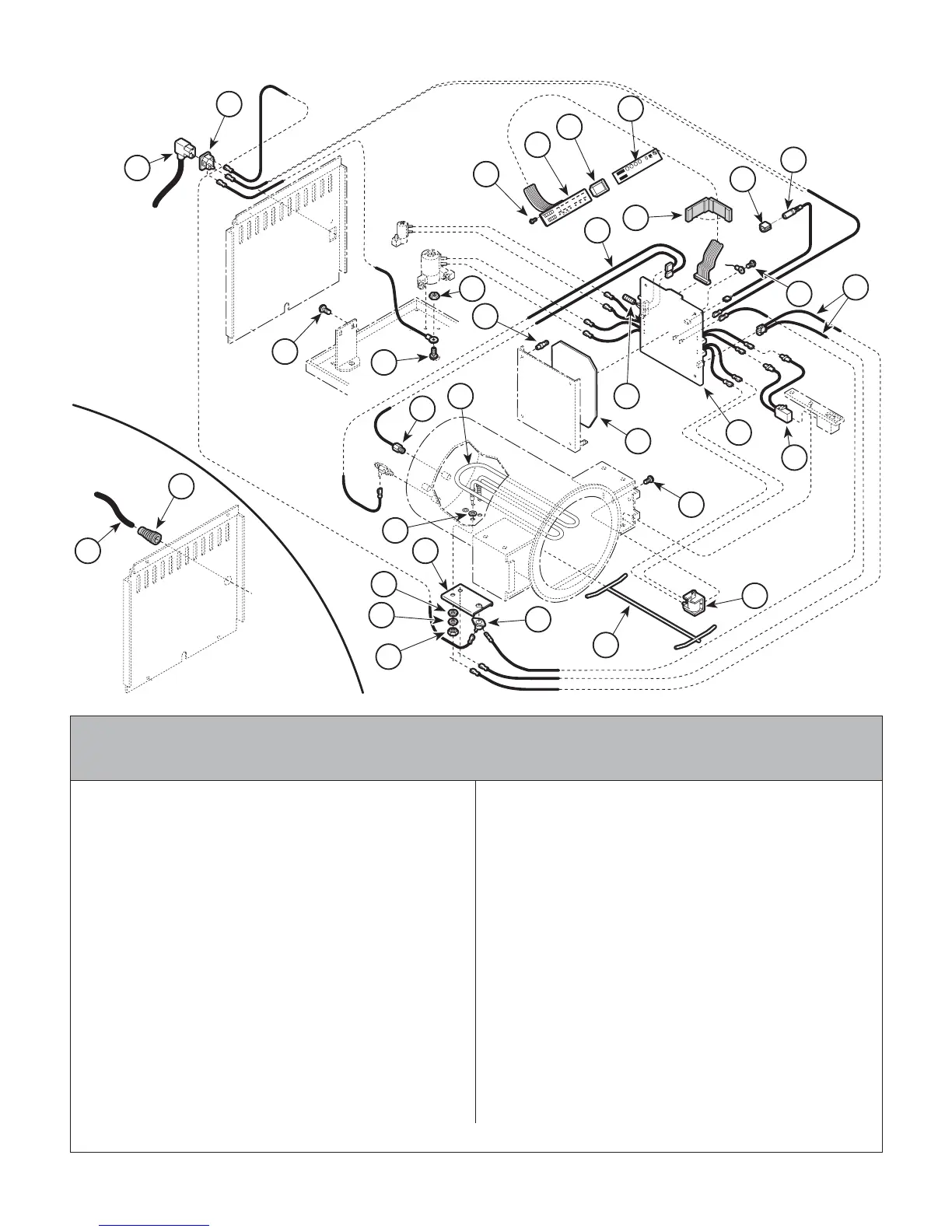

Electrical Components
Always Specify Model & Serial Number
Item Part No. Description Qty.
1 Cordset (Refer to Wiring Diagram) ........ 1
2 015-0639-00 AC Connector Receptacle ..................... 1
3 002-0370-00 Thermostat ........................................... 1
4 057-0425-00 Spacer Assembly .................................. 1
5 040-0010-75 Screw ................................................... 1
6 002-0363-00 Solenoid-{120V} .................................... 1
002-0363-01 Solenoid-{240V} .................................... 1
002-0363-02 Solenoid-{100V} ..................................... 1
7 040-0006-04 Screw ................................................... 6
8 002-0369-02 Display PC Board (Domestic) ................ 1
002-0369-03 Display PC Board (Export ) ................... 1
9 053-0454-00 Display Gasket ..................................... 1
10 061-0272-01 Display Overlay (Domestic ) ................. 1
061-0272-00 Display Overlay (Export) ....................... 1
061-0272-02 Display Overlay (French) ...................... 1
061-0702-18 Display Overlay (Polish) ........................ 1
11 PCB/Printer Harness (Refer to "Printer
Components" Elsewhere) ...................... 1
12 015-1096-00 Flat Cable EMI Suppression (Used
Only On Certain Export Units) ............... 1
13 040-0010-46 Screw ................................................... 1
14 015-0657-00 PCB/Heater Harness ............................ 1
15 002-0362-00 Switch Assembly ................................... 1
16 Control PC Board (Refer to "Control PC
Board" Elsewhere) ............................. Ref
17 015-0257-02 Flex Guard Tubing ................................ 1
18 015-0654-00 Chamber Level Sensor Harness ........... 1
19 040-0010-74 Screw ................................................... 2
20 053-0455-00 Insulator ................................................ 1
21 053-0295-01 Standoff ................................................. 3
22 041-0010-04 Locknut ................................................. 1
23 002-0357-00 Temperature Probe Assembly ............... 1
24 H98137 Gasket .................................................. 2
25 002-0367-00 Heat Element-{120V}(Includes Item 24) . 1
002-0367-01 Heat Element-{230V}(Includes Item 24) . 1
002-0367-02 Heat Element-{100V}(Includes Item 24) . 1
26 H97971 Washer ................................................. 2
27 045-0001-56
Lockwasher ..........................................
2
28 H97949 Nut ........................................................ 2
29 050-3503-00 Bracket ................................................. 1
30 015-1137-00 Strain Relief Bushing (120 V. Units Only) 1
31 053-0389-01 Printer Harness Clip ............................... 1
Item Part No. Description Qty.
Used on Units with Serial Numbers:
MA376103
11
1
4
5
6
16
24
3
2
23
29
27
28
18
15
13
7
8
9
10
12
1
30
26
25
22
21
20
19
17
14
13
31
© Midmark Corporation 2002 SF-1827 Rev. 9/07 Printed in U.S.A.
CZ4591, DA1005, DB1150, DX1970, DY1139, FD1000,
FK1000, FL1000, LA1000, and OM14724 - thru Present
