Midmark M9 - M11 Manifold Components

SECTION VI
PARTS LIST
M11 / M11D
Page 6-22© Midmark Corporation 2002 SF-1827 Rev. 1/11 Printed in U.S.A.

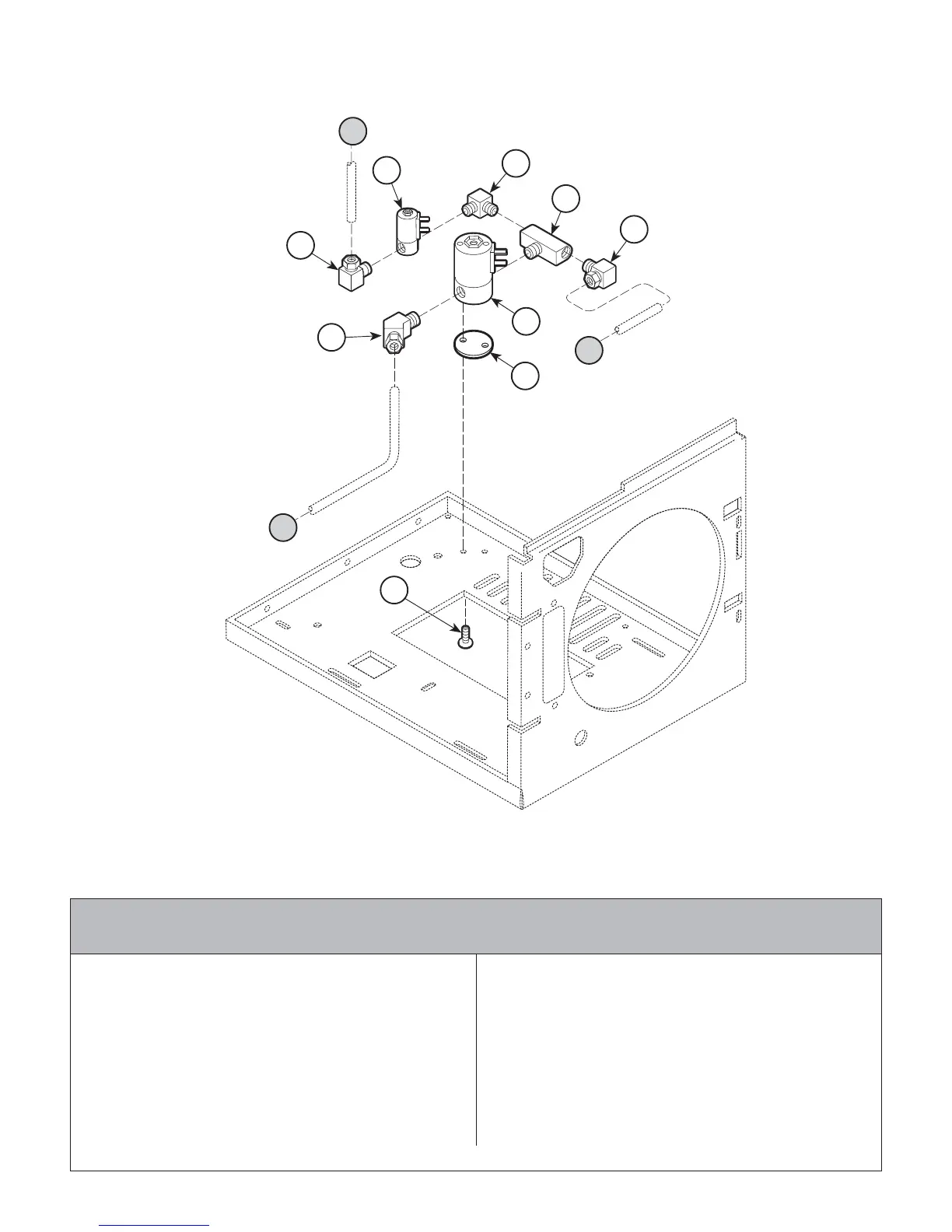

M11 Manifold Components
1
2
3
4
5
6
7
8
A
B
C
9
NOTE
When replacing components in the sole-
noid, examine the existing valve to deter-
mine if it was Full Wave Rectified (if so will
be marked FWR).
Always Specify Model & Serial Number
5 • 014-0184-01 Male 90° Elbow ...................................... 1
6 • 002-0365-00 Solenoid Valve (120V/60Hz) [Fill] ........... 1
• 002-0365-01 Solenoid Valve (230V/50Hz) [Fill] ........... 1
• • 014-0236-08 • Replacement Coil (120V/60Hz) ........... 1
• • 014-0236-10 • Replacement Coil (120V/50-60 FWR).. 1
• • 014-0236-09 • Replmt. Plunger (120V/60Hz) .............. 1
• • 014-0236-11 • Replmt. Plunger (120V/50-60 FWR) .... 1
7 • 014-0201-00 Male 45° Elbow ...................................... 1
8 040-0010-74 Screw (Apply Loctite #042-0024-02) ..... 2
9 050-2657-00 Spacer .................................................. 1
Item Part No. Description Qty.Item Part No. Description Qty.
002-1428-00 Manifold Assembly (120V/60Hz)
(includes items 1 thru 7)
002-1428-01 Manifold Assembly (230V/50Hz)
(includes items 1 thru 7)
1 • 014-0184-00 Male 90° Elbow ...................................... 1
2 • 002-0366-00 Solenoid Valve (120V/60Hz) [Vent] ........ 1
• 002-0366-01 Solenoid Valve (230V/50Hz) [Vent] ........ 1
• • 014-0235-03 • Replacement Coil (120V/60Hz) ........... 1
• • 014-0235-04 • Replacement Plunger .......................... 1
3 • 014-0218-01 Male Elbow ............................................ 1
4 • 014-0234-00 Male Branch Tee ................................... 1
MA202201
Used on Units with Serial Numbers
ES1000 thru ES1346 ET1000 thru ET1094
