SECTION VI
PARTS LIST
M11 / M11D
Page 6-22.1
© Midmark Corporation 2002 SF-1827 Rev. 1/11 Printed in U.S.A.

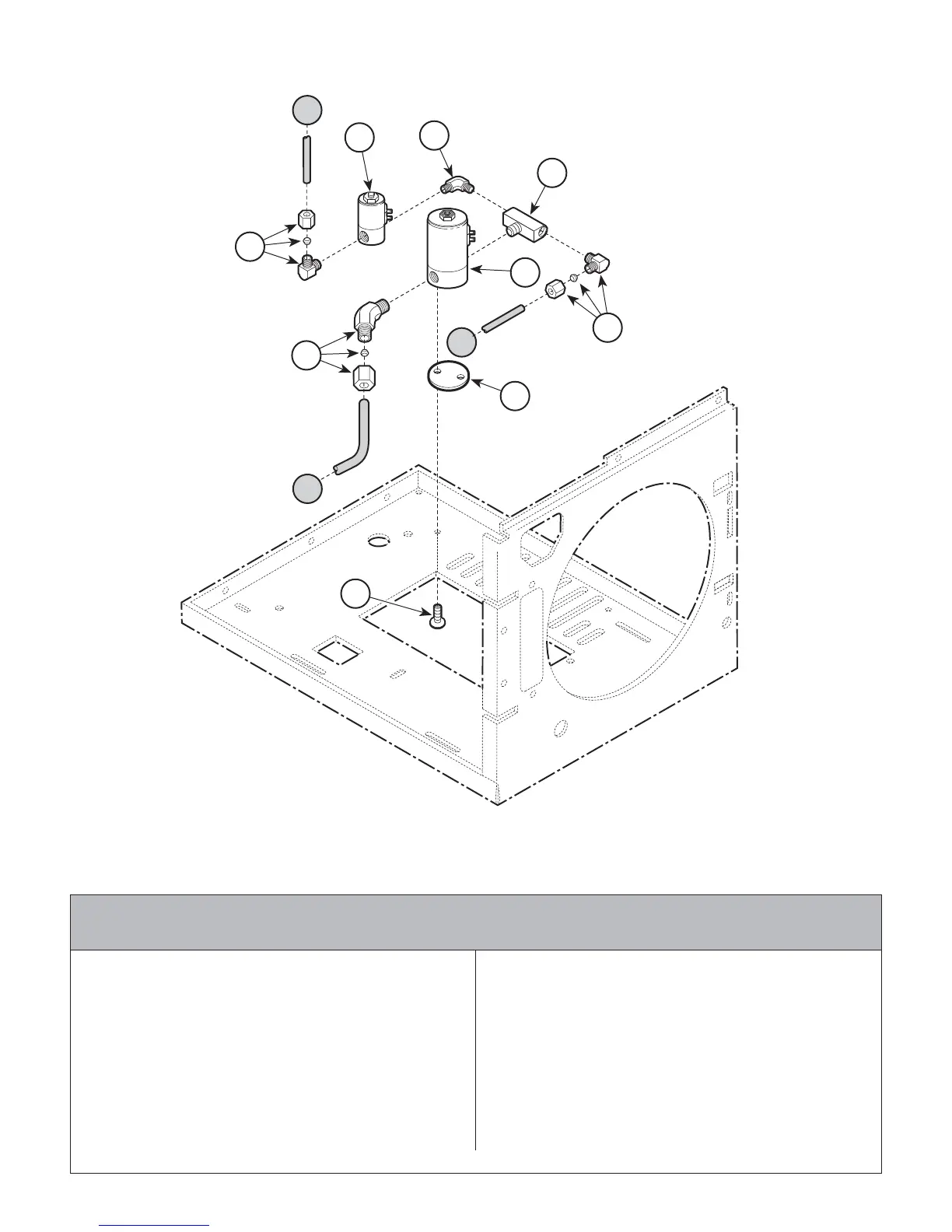

M11 Manifold Components
A
B
C
2
6
8
7
5
4
3
9
1
NOTE
When replacing components in the sole-
noid, examine the existing valve to deter-
mine if it was Full Wave Rectified (if so, will
be marked FWR).
Always Specify Model & Serial Number
002-1428-00 Manifold Assembly (120V/60Hz)
(includes items 2 thru 8)
002-1428-01 Manifold Assembly (230V/50Hz)
(includes items 2 thru 8) ...........................
1 040-0010-74 Screw (Apply Loctite #042-0024-02) ...... 2
2 • 014-0184-00 Male 90° Elbow ...................................... 1
3 • 002-0366-00 Solenoid Valve (120V/60Hz) [Vent] ........ 1
• 002-0366-01 Solenoid Valve (230V/50Hz) [Vent] ........ 1
• • 014-0235-03 • Replacement Coil (120V/60Hz) ........... 1
• • 014-0235-04 • Replacement Plunger .......................... 1
4 • 014-0218-01 Male Elbow ............................................ 1
5 • 014-0234-00 Male Branch Tee ................................... 1
6 • 014-0184-01 Male 90° Elbow ...................................... 1
7 • 002-0365-00 Solenoid Valve (120V/60Hz) [Fill] ........... 1
• 002-0365-01 Solenoid Valve (230V/50Hz) [Fill] ........... 1
• • 014-0236-08 • Replacement Coil (120V/60Hz) ........... 1
• • 014-0236-10 • Replacement Coil (120V/50-60 FWR).. 1
• • 014-0236-09 • Replmt. Plunger (120V/60Hz) .............. 1
• 014-0236-11 • Replmt. Plunger (120V/50-60 FWR) .... 1
• • 002-0694-00 • Replmt. Plunger & Coil (FWR) .............. 1
8 • 014-0201-00 Male 45° Elbow ...................................... 1
9 050-2657-00 Spacer .................................................. 1
Item Part No. Description Qty.Item Part No. Description Qty.
MA202206
ES1347 thru ES5751 ET1095 thru ET7341 FP1000 thru FP1075
FR1000 thru FR1246 GB1000 thru GB1129
Used on units with Serial Numbers:
To Next Page
