SECTION VI
PARTS LIST
M11 / M11D
Page 6-19
© Midmark Corporation 2002 SF-1827 Rev. 2/11 Printed in U.S.A.

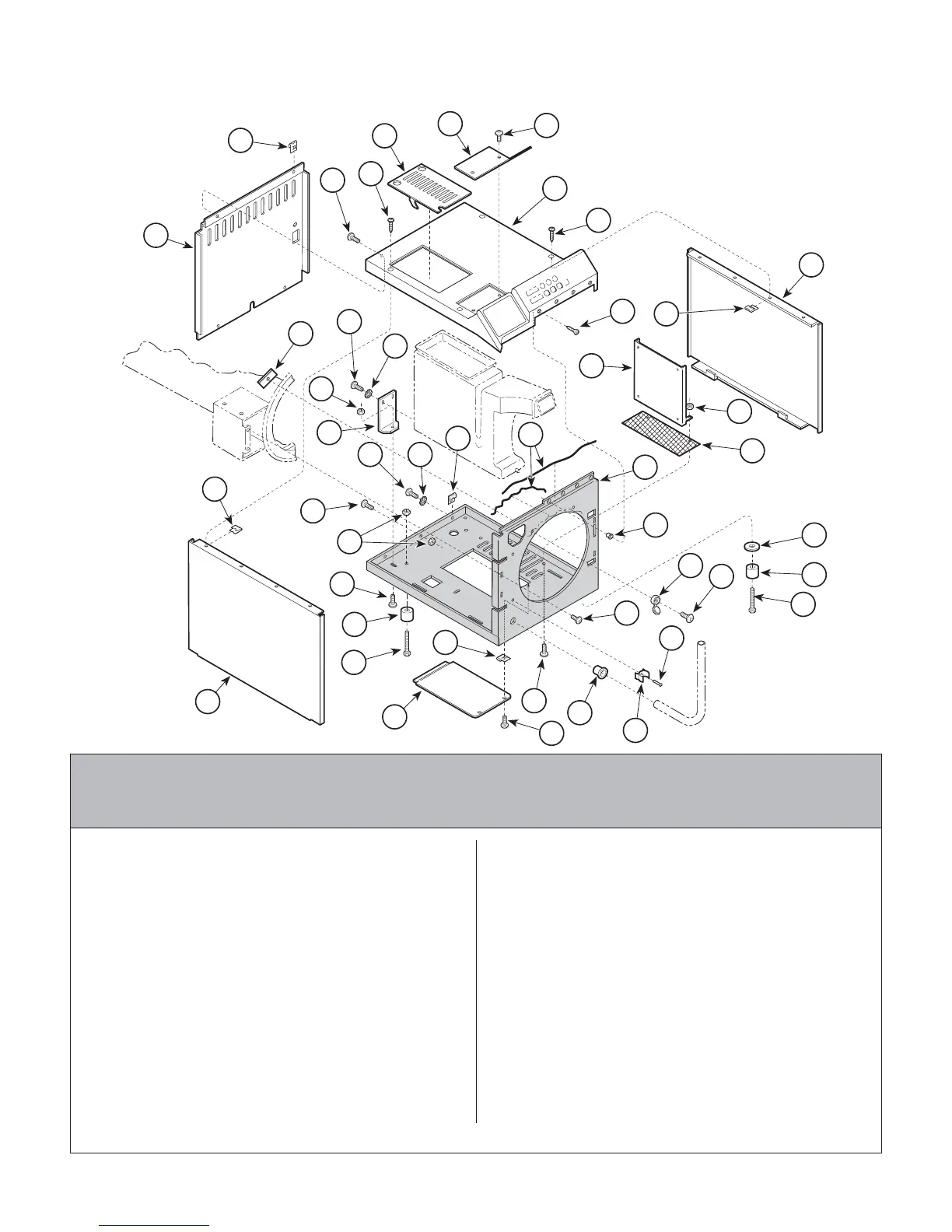

Main Enclosure
Components
Always Specify Model & Serial Number
Item Part No. Description Qty.
Item Part No. Description Qty.
1 030-1117-00 Top Inspection Cover ............................ 1
2 050-2638-00 Cover Plate - Printer .............................. 1
3 040-0008-87 Screw ................................................... 2
4 040-0010-88 Screw ................................................... 4
5 Top Cover Assembly Kit (includes all
Decals and Display Gasket)
002-0503-00 M11 ..................................................... 1
002-0503-01 M11D ................................................... 1
6 045-0001-00 Washer .............................................. AR
7 050-2589-00 Side Panel ............................................. 2
8 H352623 Tinnerman Clip .................................... 11
9 040-0010-112 Screw ................................................... 4
10 050-3996-00 Control PCB Bracket ............................. 1
11 040-0010-75 Screw ................................................... 3
12 016-0428-04 Screen .................................................. 1
13 050-2588-00 Base ..................................................... 1
14 040-0010-125 Screw ................................................... 6
15 041-0010-02 Nut ....................................................... 6
16 053-0068-11 Snap Bushing ........................................ 1
17 050-4326-01 Base Inspection Cover .......................... 1
18 002-0963-00 Leveler Foot .......................................... 4
19 050-1778-00 Condensing Tank Bracket ..................... 1
20 050-2587-00 Back Panel ............................................ 1
21 040-0010-44 Screw ................................................... 4
22 053-0388-01 Hose Clip .............................................. 2
23 042-0010-11 Pop Rivet .............................................. 2
24 040-0010-74 Screw ................................................... 2
25 040-0010-124 Screw ................................................... 2
26 053-0723-00 Screw Cover ......................................... 2
27 045-0001-31 Lockwasher .......................................... 3
28 050-4750-00 Flange Clamp ........................................ 2
29 042-0021-00 Adhesive ............................................ AR
30 042-0045-01 Nutsert .................................................. 4
31 040-0010-95 Screw ................................................... 4
32 041-0010-04 Nut - w/Starwasher ............................... 2
MA225405
15
1
2
4
5
7
32
13
11
16
17
20
23
7
8
8
14
31
14
18
21
26
28
24
27
19
14
27
8
14
8
18
21
22
6
25
12
9
8
3
4
10
30
29
11
15
Used on units with Serial Numbers:
ES1347 thru ES3020 ET1095 thru ET3317
GC1000 thru GC1018 GD1000 thru GD1015
