SECTION VI
PARTS LIST
M11 / M11D
Page 6-23

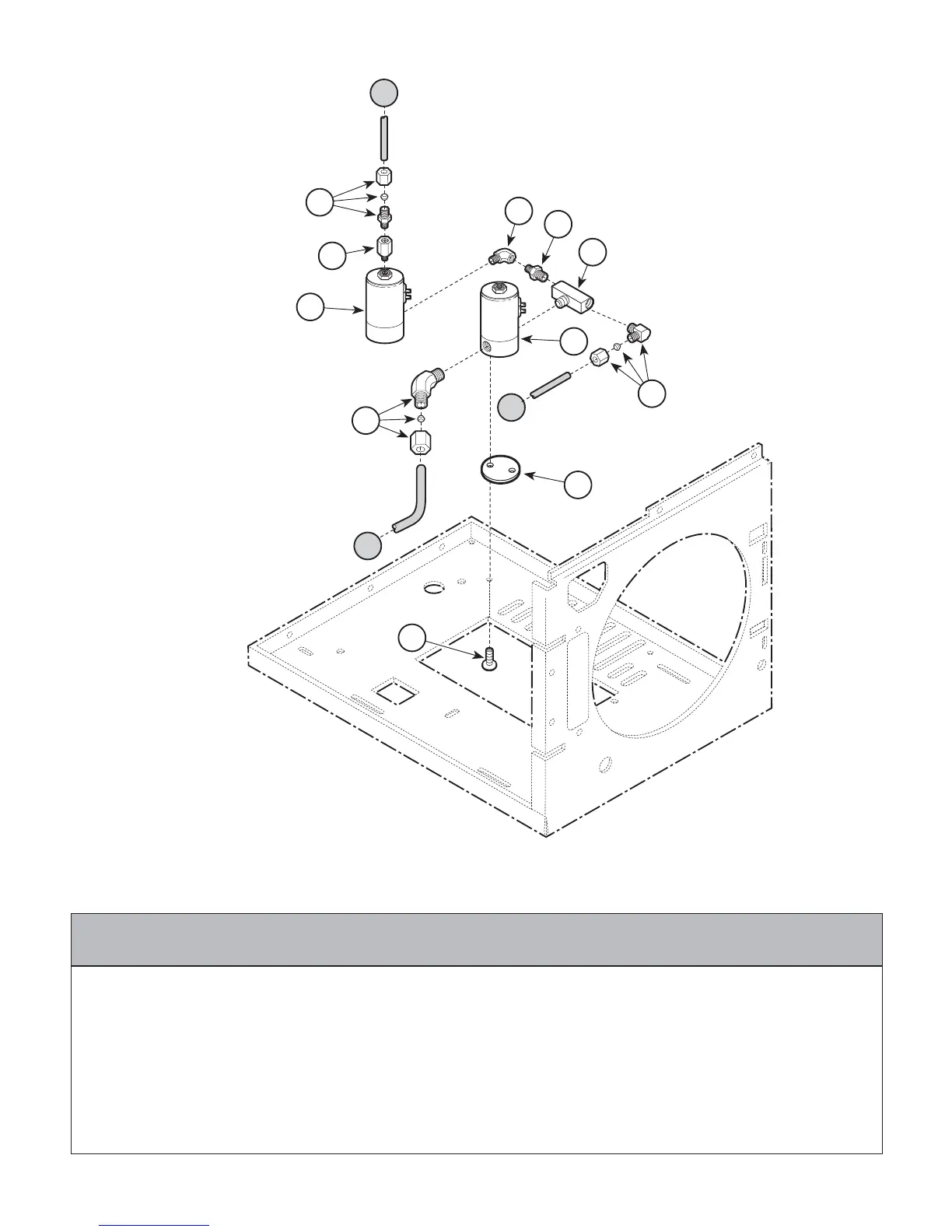

M11D Manifold Components
Always Specify Model & Serial Number
1 014-0183-01 Male Connector ..................................... 1
2 Reducer Fitting ...................................... 1
3 002-0519-00 Solenoid Valve {120V/60Hz} (Includes
Item 2 ................................................... 1
• 014-0275-02 • Replacement Coil & Plunger ................. 1
4 014-0194-00 Street Elbow .......................................... 1
5 014-0276-00 Reducer Nipple ..................................... 1
6 014-0234-00 Male Branch Tee ................................... 1
7 014-0184-01 Male 90° Elbow ...................................... 1
8 002-0365-00 Solenoid Valve{120V/60Hz} ................... 1
• 014-0236-08 • Replacement Coil (120V/60Hz) ........... 1
• 014-0236-10 • Replacement Coil (120V/50-60 FWR).. 1
• 014-0236-09 • Replmt. Plunger (120V/60Hz) .............. 1
• 014-0236-11 • Replmt. Plunger (120V/50-60 FWR) .... 1
• 002-0694-00 • Replmt. Plunger & Coil (FWR) .............. 1
9 050-2657-00 Spacer .................................................. 1
10 014-0201-00 Male 45° Elbow ...................................... 1
11 040-0010-74 Screw (Apply Loctite #042-0024-02) ...... 2
Item Part No. Description Qty.Item Part No. Description Qty.
MA202207
10
8
B
C
9
3
4
1
7
6
5
A
2
11
NOTE
When replacing components in the sole-
noid, examine the existing valve to deter-
mine if it was Full Wave Rectified (if so, will
be marked FWR).
Used on Units with Serial Numbers
GC1000 thru GC1093 GD1000 thru GD1102
