SECTION VI
PARTS LIST
M9 / M9D
Page 6-9.2
© Midmark Corporation 2002 SF-1827 Printed in U.S.A.

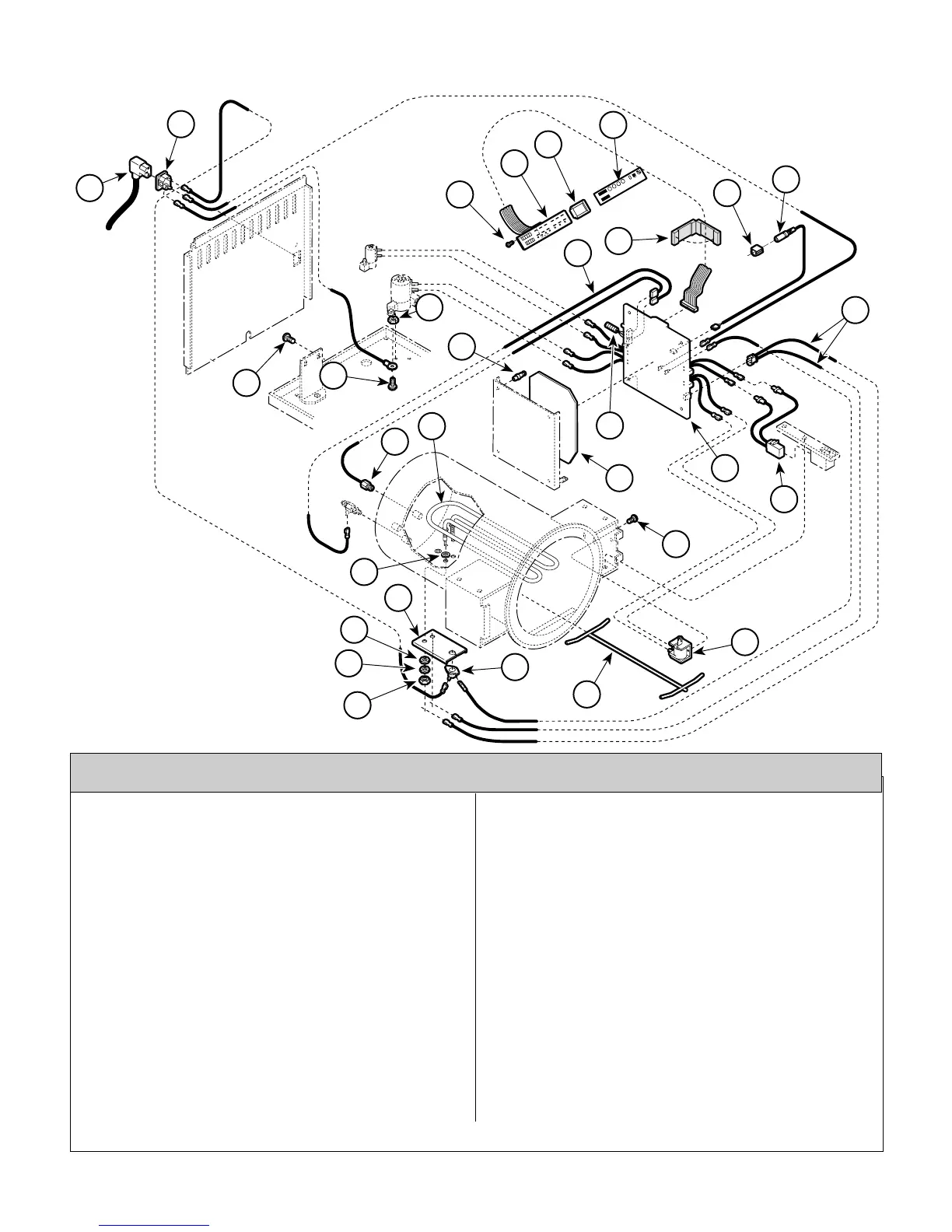

Electrical Components
Always Specify Model & Serial Number
Item Part No. Description Qty.
1 Cordset (Refer to Wiring Diagram)........ 1
2 015-0639-00 AC Connector Receptacle..................... 1
3 002-0370-00 Thermostat ........................................... 1
4 057-0425-00 Spacer Assembly.................................. 1
5 040-0010-75 Screw ................................................... 1
6 002-0363-00 Solenoid-{120V} (M9 only)..................... 1
002-0363-01 Solenoid-{240V} (M9 only)..................... 1
002-0363-02 Solenoid-{100V} (M9 only)...................... 1
7 040-0006-04 Screw ................................................... 6
8 002-0369-02 Display PC Board (Domestic)................ 1
002-0369-03 Display PC Board (Export).................... 1
9 053-0454-00 Display Gasket ..................................... 1
10 061-0272-01 M9 Display Overlay (Domestic)............. 1
061-0272-00 M9 Display Overlay (Export )................ 1
061-0272-02 M9 Display Overlay (French )............... 1
061-0531-00 M9D Display Overlay............................. 1
11 PCB/Printer Harness (Refer to "Printer
Components" Elsewhere)...................... 1
12 015-1096-00 Flat Cable EMI Suppression (Used
Only On Certain Export Units)............... 1
13 053-0389-01 Printer Harness Clip.............................. 1
14 040-0010-46 Screw ................................................... 1
15 015-0657-00 PCB/Heater Harness ............................ 1
16 002-0362-00 Switch Assembly ................................... 1
17 Control PC Board (Refer to "Control PC
Board" Elsewhere) ............................. Ref
18 015-0257-02 Flex Guard Tubing................................ 1
19 015-0654-00 Chamber Level Sensor Harness........... 1
20 040-0010-74 Screw (M9 only).................................... 2
21 053-0455-00 Insulator ................................................ 1
22 053-0295-01 Standoff ................................................. 3
23 041-0010-04 Locknut ................................................. 1
24 002-0357-00 Temperature Probe Assembly............... 1
25 H98137 Gasket .................................................. 2
26 002-0367-00 Heat Element-{120V}(Includes Item 25). 1
002-0367-01 Heat Element-{230V}(Includes Item 25). 1
002-0367-02 Heat Element-{100V}(Includes Item 25). 1
27 H97971 Washer ................................................. 2
28 045-0001-56 Lockwasher .......................................... 2
29 H97949 Nut ........................................................ 2
30 H225617 Bracket ................................................. 1
Item Part No. Description Qty.
MA202309
1
4
5
6
16
17
19
20
21
22
24
25
26
30
3
2
29
27
28
18
15
13
7
8
9
10
12
11
23
14
Used on units with Serial Numbers:
CZ2457 thru CZ4590 FF1000 thru FF1054 FG1000 thru FG1137 OM9449 thru OM14723
