SECTION VI
PARTS LIST
M9 / M9D
Page 6-9.1
© Midmark Corporation 2002 SF-1827 Printed in U.S.A.

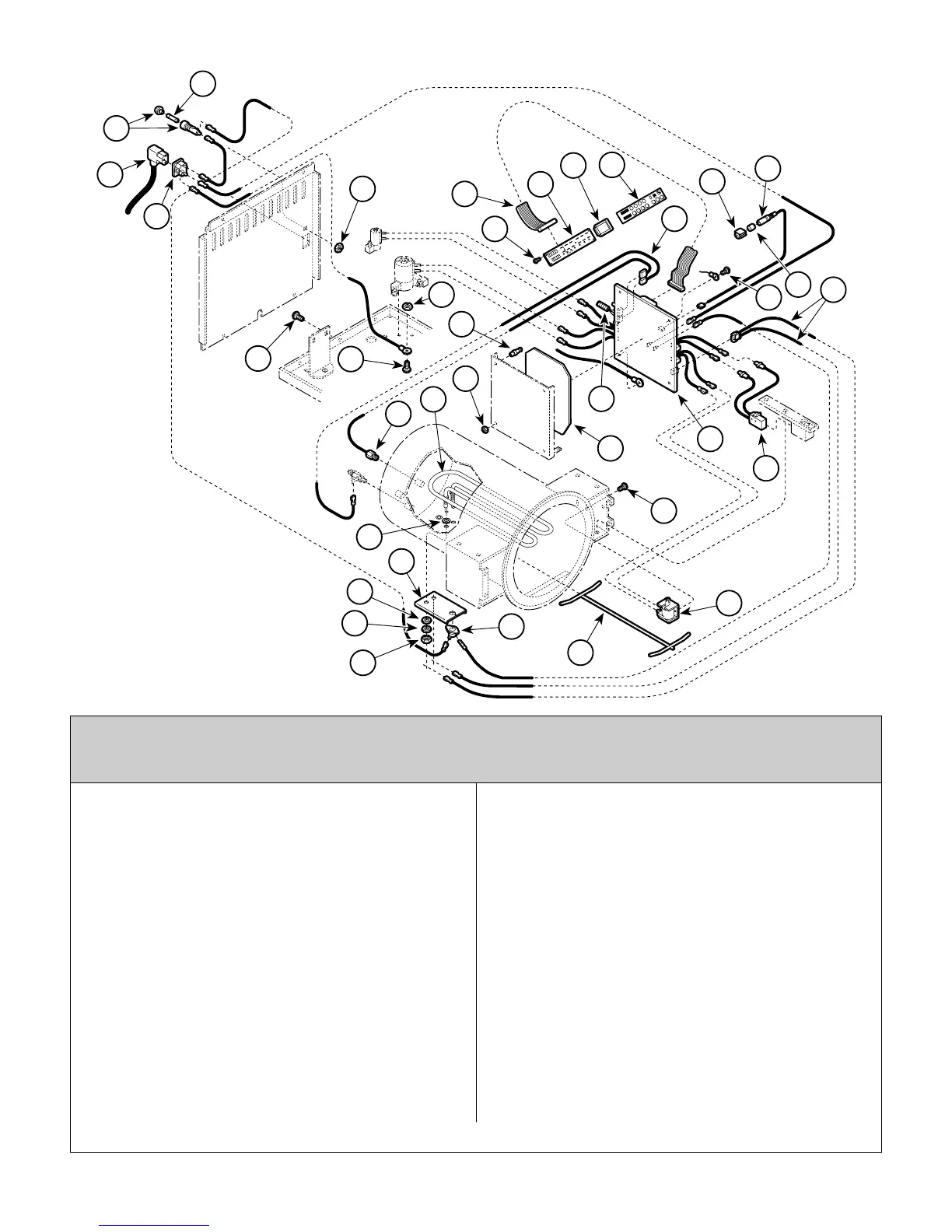

Electrical Components
Item Part No. Description Qty.
Always Specify Model & Serial Number
1 Cordset (Refer to Wiring Diagram)........ 1
2 015-0639-00 AC Connector Receptacle..................... 1
3 A128003 Fuse Holder w/Nut (Early Units Only).... 1
4 Fuse ..................................................... 1
5 040-0010-75 Screw ................................................... 1
6 015-0646-00 Ribbon Connector ................................. 1
7 040-0006-04 Screw ................................................... 6
8 002-0369-00 Display PC Board (Domestic)................ 1
002-0369-01 Display PC Board (Export).................... 1
9 053-0454-00 Display Gasket ..................................... 1
10 061-0272-01 Display Overlay (Domestic).................. 1
061-0272-00 Display Overlay (Export)....................... 1
11 015-0978-00 Harness - PCB/Printer........................... 1
12 053-0440-00 Cap Plug ............................................... 1
13 053-0389-00 Printer Harness Clip .............................. 1
14 040-0010-46 Screw ................................................... 1
15 015-0657-00 PCB/Heater Harness ............................ 1
16 002-0362-00 Switch Assembly................................... 1
17 Control PC Board (See Breakdown
Elsewhere) ......................................... Ref
18 015-0257-02 Flex Guard Tubing................................ 1
19 015-0654-00 Chamber Level Sensor Harness........... 1
20 040-0010-74 Screw ................................................... 2
21 053-0455-00 Insulator ................................................ 1
22 053-0295-01 Standoff ................................................. 3
23 041-0010-04 Locknut ................................................. 1
24 002-0357-00 Temperature Probe Assembly............... 1
25 H98137 Gasket .................................................. 2
26 002-0367-00 Heat Element-{120V}(Includes Item 25). 1
002-0367-01 Heat Element-{230V}(Includes Item 25). 1
002-0367-02 Heat Element-{100V}(Includes Item 25). 1
27 H97971 Washer ................................................. 2
28 045-0001-56 Lockwasher .......................................... 2
29 H97949 Nut ........................................................ 2
30 H225617 Bracket ................................................. 1
31 002-0370-00 Thermostat ........................................... 1
32 030-0769-00 Spacer Assembly .................................. 1
33 002-0363-00 Solenoid-{120V} .................................... 1
002-0363-01 Solenoid-{240V} .................................... 1
002-0363-02 Solenoid-{100V} ..................................... 1
Item Part No. Description Qty.
MA2023-02
3
1
2
4
22
5
3
7
8
9
10
11
19
13
6
15
12
14
16
17
20
21
24
26
23
18
25
30
31
32
33
29
27
28
23
14
CZ1685 thru CZ2456 DA1002 thru DA1004 DB1011 thru DB1149
DX1171 thru DX1969 DY1008 thru DY1138 OM5131 thru OM9448
Used on units with Serial Numbers:
