SECTION VI
PARTS LIST
M11 / M11D
Always Specify Model & Serial Number
N.L.A. Denotes "No Longer Available
Page 6-20.3
© Midmark Corporation 2002 SF-1827 Rev. 2/11 Printed in U.S.A.

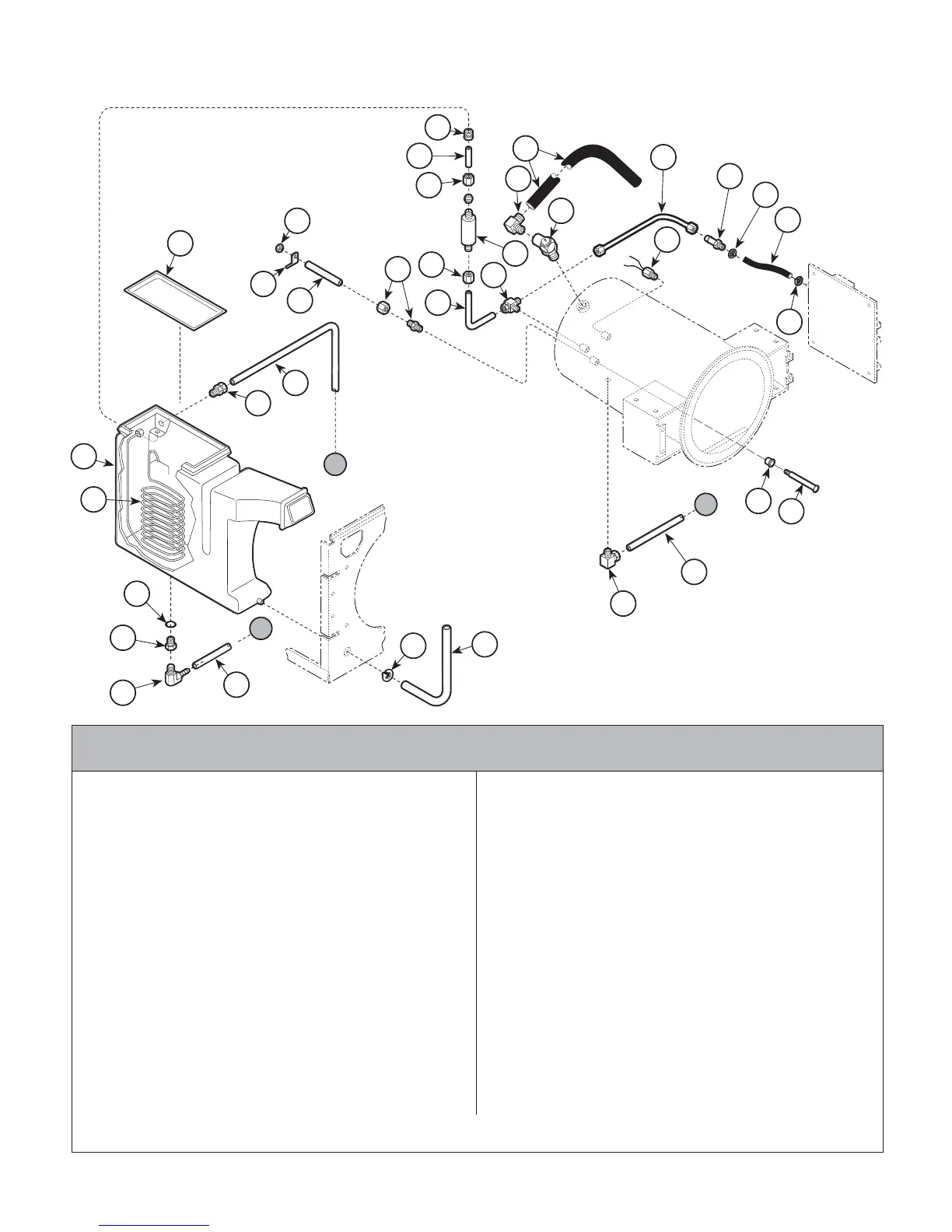

Plumbing & Sensor Components
Item Part No. Description Qty.Item Part No. Description Qty.
1 053-0580-00 Condensing Tank (Includes Item 15) ..... 1
2 014-0216-00 Bulkhead Union ..................................... 1
014-0392-00 Compression Nut Only ........................ AR
3 014-0251-00 Tube (M11) ........................................... 1
014-0279-00 Tube (M11D) .......................................... 1
4 016-0748-01 Nylon Hose Clamp ................................ 1
5 052-0173-00 Condensing Coil .................................... 1
6 053-0391-01 Hose ..................................................... 1
7 002-0358-00 Level Sensor Tube (Includes items
8,9,15,29,and 30) ................................ 1
8 015-0595-00 Terminal ................................................ 1
9 041-0006-02 Locknut ................................................. 1
10 053-0393-00 O-ring ................................................... 1
11 014-0209-00 Bulkhead Couple ................................... 1
12 014-0348-00 Barb Fitting Elbow .................................. 1
13 053-1033-02 Norprene Tube ...................................... 1
14
(N.L.A.) Condensing Tank Lid (See Item #1) ...... 1
15 014-0212-00 Connector ............................................. 1
16 014-0252-00 Tube ..................................................... 1
17 002-0654-00 Steam Trap Assembly Kit (Includes Items
16, 18, 19 and 20) ................................. 1
18 014-0392-00 Compression Nut (Refer to Kit [*]) ......... 2
19 014-0208-00 Tube ..................................................... 1
20 053-0394-02 Grommet ............................................... 1
21 014-0202-00 Male Branch Tee ................................... 1
22 014-0315-00 PCB Pres. Sensor Tube (Refer to Kit [*]) 1
23 002-0359-01 Pressure Relief Valve - 40 PSI
(Apply Teflon Tape)
(Includes Elbow, Item 32) .................... 1
24 053-0613-02 Tube - Pressure Relief .......................... 1
25 015-0013-05 Cable Tie (High Temp) .......................... 2
26 014-0217-00 Compression Connector (Refer to Kit [*]) 1
27 053-0404-05 Tube-PCB Connector (Refer to Kit [*]) ... 1
28 002-0357-00 Temperature Probe Assembly ..................
(Apply Teflon Tape) ............................. 1
29 053-0407-00 Spacer .................................................. 1
30 030-0858-00 Level Sensor Assembly ......................... 1
31 014-0250-00 Tube ..................................................... 1
32 014-0258-00 Male 90° Elbow ...................................... 1
33 014-0184-01 Male Elbow ............................................ 1
[*] 002-0593-00 Pressure Sensor Tube Kit (Includes #'s
18, 22, 25, 26, & 27)
MA511005
ES8309, ET12158, FP1149, FR1413, GB1131, GC1094, GD1103, NP1005 - thru present
Used on units with Serial Numbers:
C
A
B
8
1
3
7
33
32
31
30
29
28
27
25
26
24
21
20
18
16
17
15
14
13
12
11
10
9
6
5
4
2
25
23
22
19
18
