SECTION VI
PARTS LIST
M11 / M11D
Page 6-24.1
© Midmark Corporation 2002 SF-1827 Rev. 4/09 Printed in U.S.A.
Item Part No. Description Qty.
Item Part No. Description Qty.

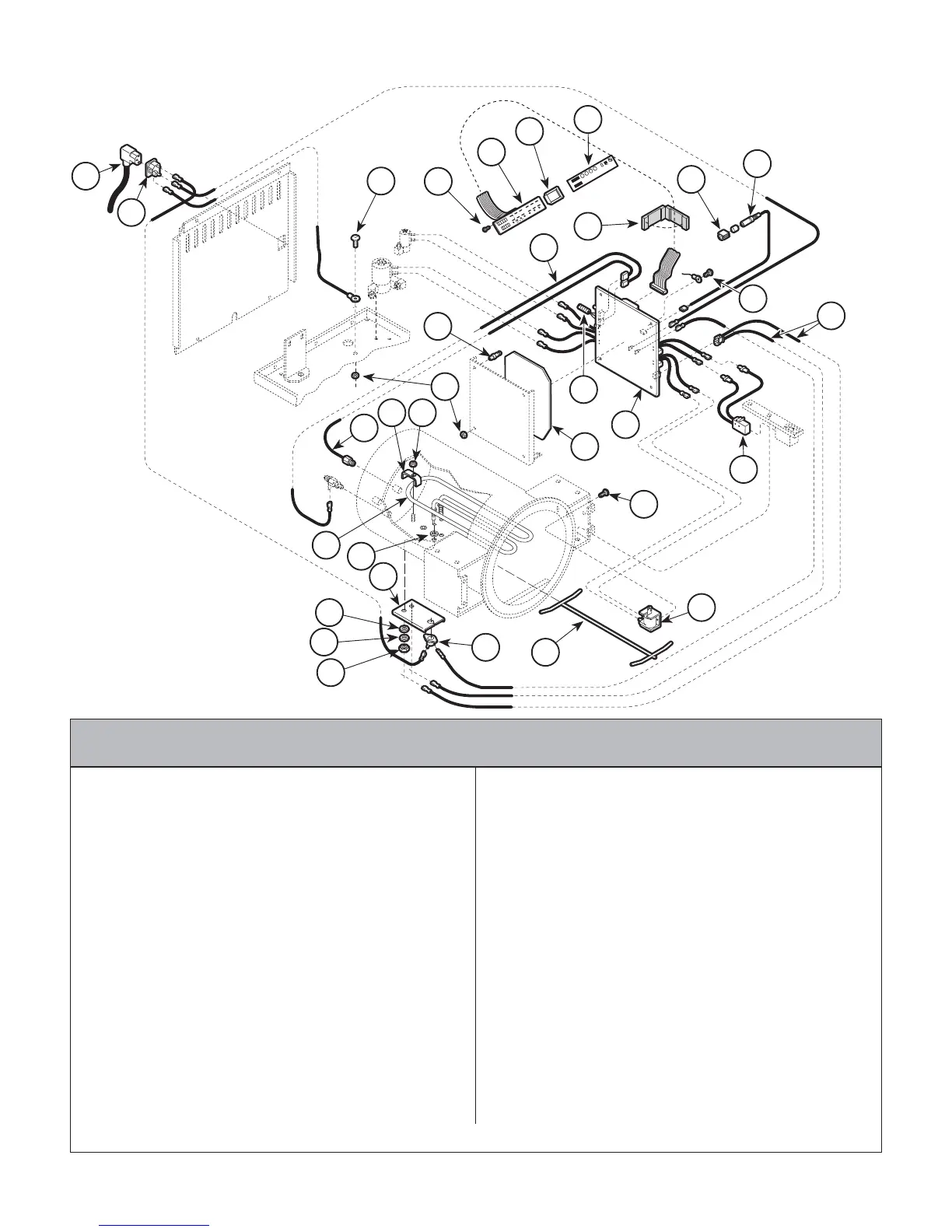

Electrical Components
Always Specify Model & Serial Number
1 Cordset (Refer to W/D in Section 5) ... Ref
2 015-0639-00 AC Connector Receptacle ..................... 1
3 002-0370-00 Thermostat ........................................... 1
4 057-0426-00 Spacer Assembly .................................. 1
5 002-0363-03 Solenoid-{120V} .................................... 1
002-0363-04 Solenoid-{230V} .................................... 1
6 040-0010-75 Screw ................................................... 1
7 040-0006-04 Screw (Apply Loctite #042-0024-00) ...... 6
8 002-0369-02 Display PC Board .................................. 1
9 053-0454-00 Display Gasket ..................................... 1
10 061-0272-01 M11 Display Overlay ............................. 1
061-0531-00 M11D Display Overlay ........................... 1
061-0272-00 M11 Display Overlay (metric) ................ 1
061-0272-02 M11 Display Overlay (French ) ............. 1
11 Harness - PCB/Printer (Refer to "Printer
Components" Elsewhere) ...................... 1
12 015-1096-00 Flat Cable EMI Suppression Core (Used
On Certain Export Units) ....................... 1
13 053-0389-01 Printer Harness Clip .............................. 1
14 040-0010-46 Screw ................................................... 1
15 015-0657-00 PCB/Heater Harness ............................ 1
16 Switch Assembly (Refer to "Pressure
Vessel Components" Elsewhere) ....... Ref
17 Control PC Board (Refer to "Control
PC Board" Elsewhere) ........................ Ref
18 015-0257-02 Flex Guard Tubing ................................ 1
19 015-0654-00 Chamber Level Sensor Harness ........... 1
20 040-0010-74 Screw ................................................... 2
21 053-0792-00 Insulator ................................................ 1
22 053-0295-01 Standoff ................................................. 3
23 041-0010-04 Locknut ................................................. 2
24 Temperature Probe Assembly (Refer to
"Plumbing & Sensor Components
Elsewhere) ......................................... Ref
25 H98137 Gasket .................................................. 2
26 002-0505-00 Heat Element-{120V} (Incl. Gaskets) ..... 1
002-0505-01 Heat Element-{230V} (Incl. Gaskets) ..... 1
27 H97971 Washer ................................................. 2
28 045-0001-56 Lockwasher .......................................... 2
29 Nut (Included with Item 26) .................... 2
30 050-3503-00 Thermostat Bracket .............................. 1
31 050-3340-00 Heater Bracket ...................................... 1
32 041-0250-18 Nut ....................................................... 1
MA202308
1
2
3
4
5
11
13
16
17
19
20
21
22
23
24
25
26
27
28
29
30
31 32
6
9
10
14
7
8
12
15
18
ES1347 thru ES3020 ET1095 thru ET3317 GC1000 thru GC1018 GD1000 thru GD1015
Used on units with Serial Numbers:
