SECTION VI
PARTS LIST
M11 / M11D
Page 6-24.3© Midmark Corporation 2002 SF-1827 Rev. 4/09 Printed in U.S.A.

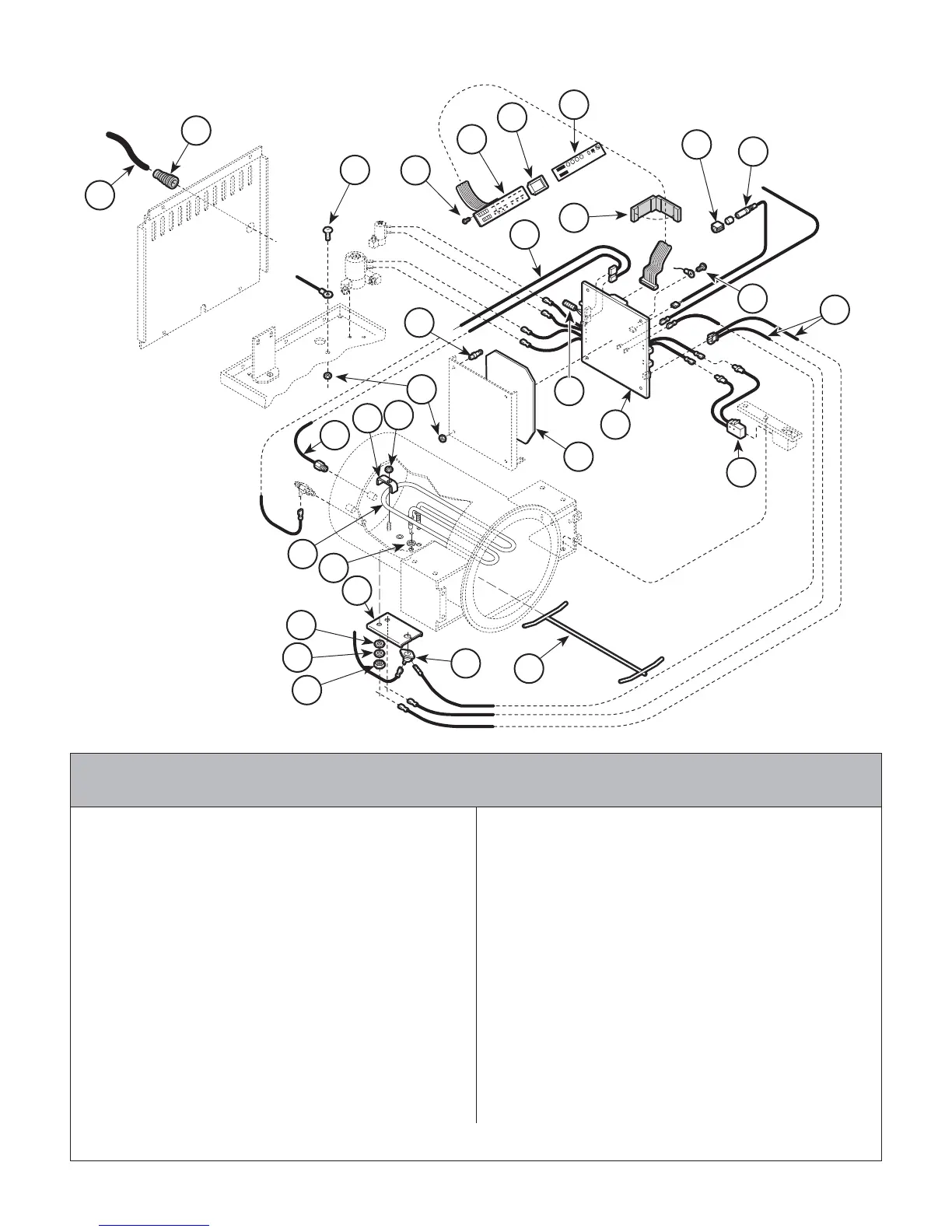

Electrical Components
Item Part No. Description Qty.
Item Part No. Description Qty.
Always Specify Model & Serial Number
1 Cordset (Refer to "Wiring
Diagrams" in Section 5) ...................... Ref
2 015-1137-00 Strain Relif Bushing ............................... 1
3 002-0370-00 Thermostat ........................................... 1
4 057-0426-00 Spacer Assembly .................................. 1
5 041-0250-18 Nut ....................................................... 1
6 040-0010-75 Screw ................................................... 1
7 040-0006-04 Screw (Apply Loctite #042-0024-00) ...... 6
8 002-0369-02 Display PC Board .................................. 1
9 053-0454-00 Display Gasket ..................................... 1
10 061-0531-00 Display Overlay .................................... 1
11 Harness - PCB/Printer (Refer to "Printer
Components" Elsewhere) ...................... 1
12 015-1096-00 Flat Cable EMI Suppression Core (Used
On Certain Export Units) ....................... 1
13 040-0010-46 Screw ................................................... 1
14 015-0657-00 PCB/Heater Harness ............................ 1
15 Switch Assembly (Refer to "Pressure
Vessel Components" Elsewhere) ....... Ref
16 Control PC Board (Refer to "Control
PC Board" Elsewhere) ........................ Ref
17 015-1395-00 Flex Guard Tubing ................................ 1
18 015-0654-00 Chamber Level Sensor Harness ........... 1
19 050-3340-00 Heater Bracket ...................................... 1
20 053-0792-00 Insulator ................................................ 1
21 053-0295-01 Standoff ................................................. 3
22 041-0010-04 Locknut ................................................. 2
23 Temperature Probe Assembly (Refer to
"Plumbing & Sensor Components
Elsewhere) ......................................... Ref
24 H98137 Gasket .................................................. 2
25 002-0505-00 Heat Element (Includes Gaskets) .......... 1
26 H97971 Washer ................................................. 2
27 045-0001-56 Lockwasher .......................................... 2
28 Nut (Included with Item 26) .................... 2
29 050-3503-00 Thermostat Bracket .............................. 1
30 053-0389-01 Printer Harness Clip ............................... 1
Used on Units with Serial Numbers:
GC1019 thru GC1155 GD1016 thru GD1192
