SECTION VI
PARTS LIST
M9 / M9D
Page 6-4.2

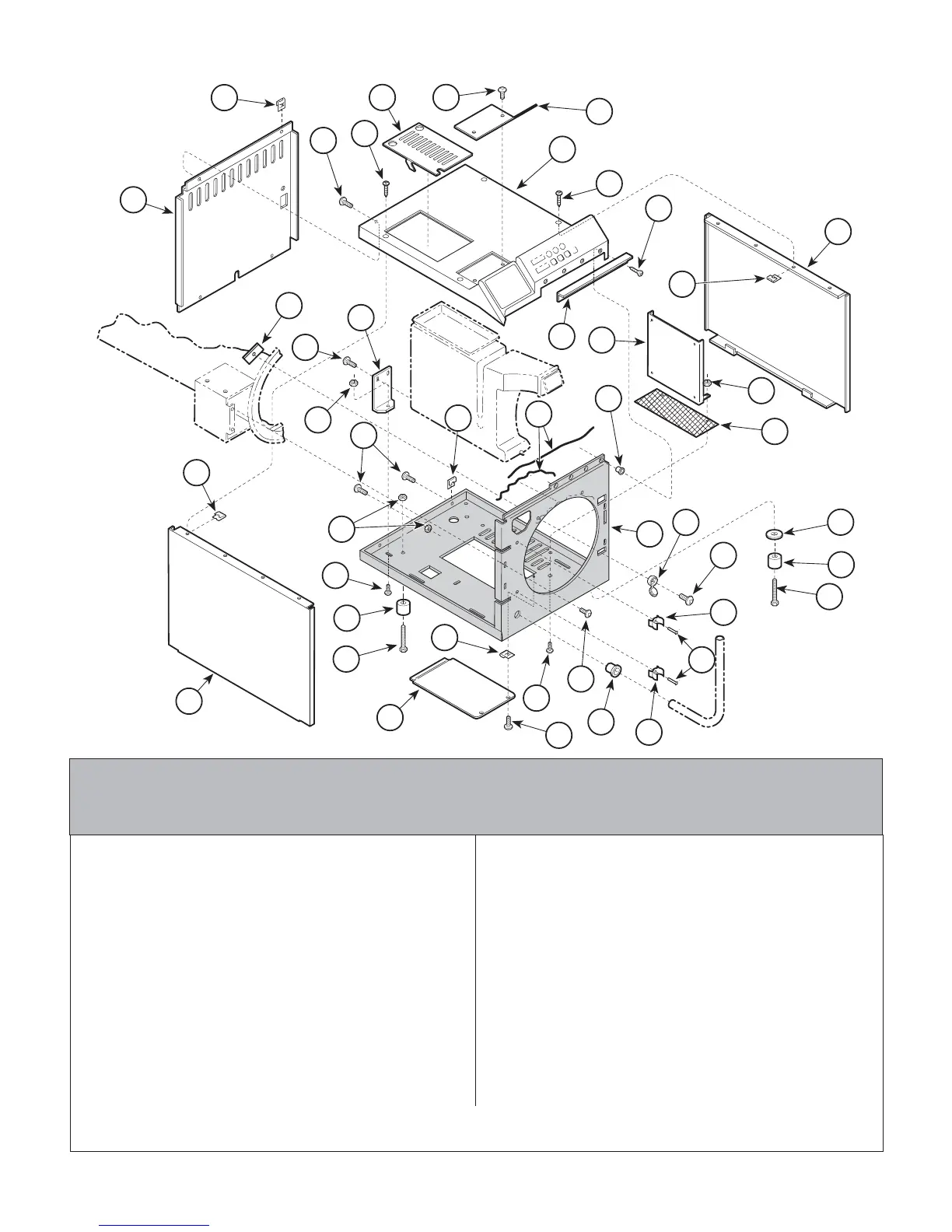

Main Enclosure Components
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
1 030-1117-00 Top Inspection Cover ............................ 1
2 050-1775-00 Cover Plate - Printer .............................. 1
3 040-0008-50 Screw ................................................... 2
4 040-0010-88 Screw ................................................... 4
5 002-0356-00 Top Cover (Domestic - English) ............ 1
002-0356-01 Top Cover (Metric - English) ................. 1
002-0356-02 Top Cover (Metric - French) ................. 1
6 050-2034-00 Top Cover Steam Block ........................ 1
7 050-1767-00 Side Panel ............................................. 2
8 H352623 Tinnerman Clip .................................... 10
9 040-0010-95 Screw ................................................... 4
10 050-3996-00 Control PCB Bracket ............................. 1
11 040-0010-75 Screw ................................................... 3
12 016-0428-04 Screen .................................................. 1
13 050-3605-00 Base ..................................................... 1
14 040-0010-125 Screw ................................................... 7
15 041-0010-02 Nut ....................................................... 6
16 050-4750-00 Flange Clamp ........................................ 2
17 050-4326-01 Base Inspection Cover .......................... 1
18 002-0963-00 Leveler Foot .......................................... 4
19 050-1778-00 Bracket ................................................. 1
20 050-3524-00 Back Panel ............................................ 1
21 040-0010-44 Screw ................................................... 4
22 053-0388-01 Hose Clip .............................................. 2
23 042-0010-11 Pop Rivet .............................................. 2
24 053-0068-11 Strain Relief Bushing ............................. 1
25 045-0001-00 Washer ................................................. 4
26 040-0010-124 Screw ................................................... 2
27 053-0723-00 Screw Cover ......................................... 2
28 042-0021-00 Adhesive ............................................ AR
29 040-0010-113 Screw ................................................... 2
30 042-0045-01 Nutsert .................................................. 2
31 041-0010-04 Nut ....................................................... 2
MA2944012
24
1
2
4
5
7
11
30
17
20
7
8
8
14
14
18
21
16
15
14
8
8
18
21
25
12
8
3
4
10
11
31
9
23
22
22
27
26
11
28
19
6
29
13
15
CZ2754 thru CZ4530 DB1150 thru DB1237 DX2132 thru DX2588 DY1150 thru DY1178
FD1100 thru FD1499 FF1000 thru FF1039 FG1000 thru FG1127 FK1000 thru FK1749
FL1000 thru FL1474 OM10597 thru OM14666
Used on units with Serial Numbers:
