SECTION VI
PARTS LIST
M9 / M9D
Page 6-5.2
© Midmark Corporation 2002 SF-1827 Rev. 1/10 Printed in U.S.A.

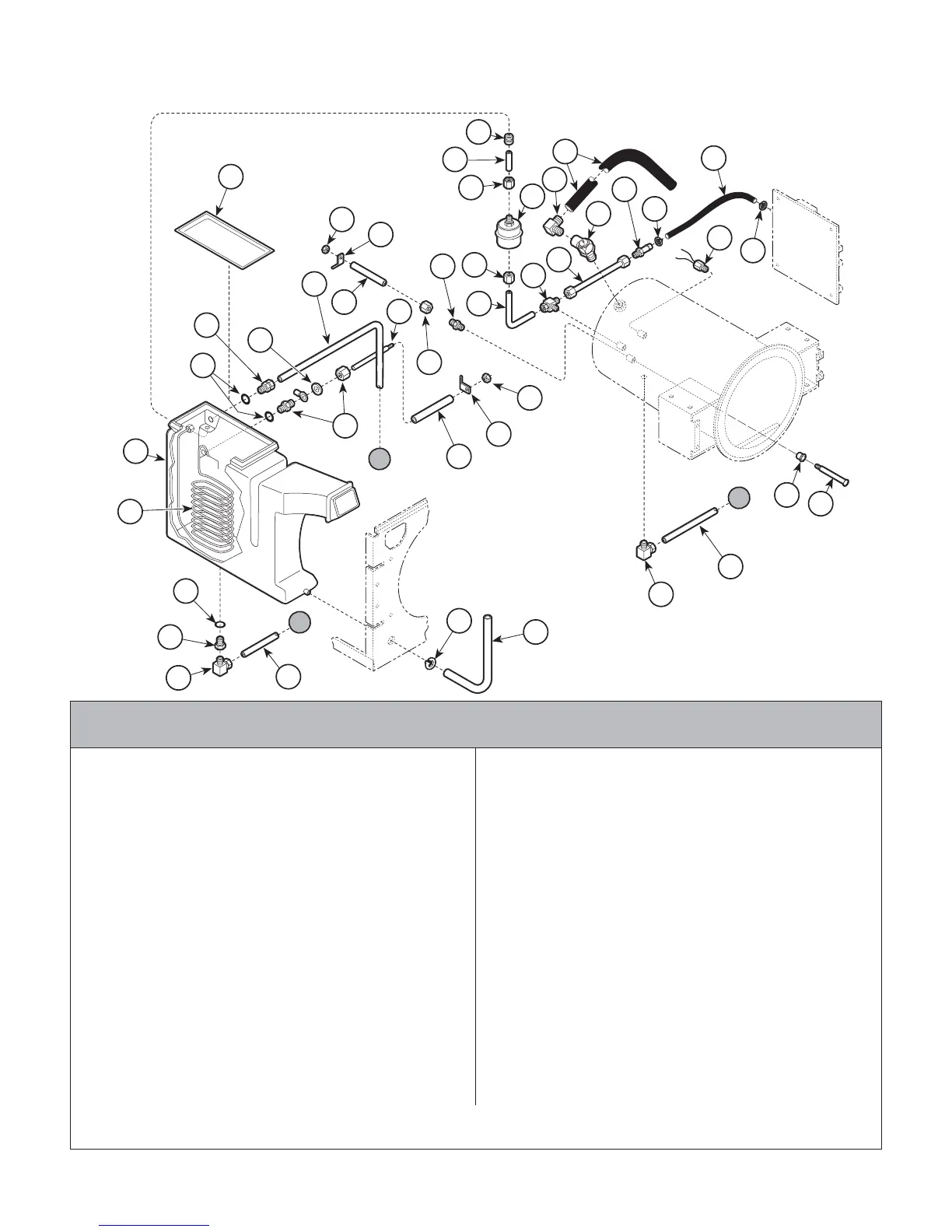

Plumbing & Sensor
Components
N.L.A. Denotes "No Longer Available"
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
1
(N.L.A.) Condensing Tank (Includes Item 15) ..... 1
2 H98137 Gasket .................................................. 2
3 014-0216-00 Bulkhead Union ..................................... 1
014-0392-00 Compression Nut Only ........................ AR
4 014-0205-00 Tube ..................................................... 1
5 014-0215-00 Union Drilled (Includes Sleeve) .............. 1
6 045-0001-56 Lockwasher .......................................... 1
7 057-0273-01 Lever Sensor Rod ................................. 1
8 053-0390-01 Level Sensor Tube (Refer to Kit [**]) ....... 1
9 015-0595-00 Terminal (Refer to Kit [**]) ...................... 2
10 041-0006-02 Locknut (Refer to Kit [**]) ....................... 2
11 053-0393-00 O-ring ................................................... 1
12 014-0209-00 Bulkhead Couple ................................... 1
13 014-0184-01 Male Elbow ............................................ 1
14 014-0203-00 Tube ..................................................... 1
15
(N.L.A.) Condensing Tank Lid (Part of Item 1) .... 1
16 014-0212-00 Connector (Refer to Kit [**]) ................... 1
17 014-0206-00 Tube ..................................................... 1
18 002-0375-00 Bellows Assembly ................................. 1
19 014-0392-00 Compression Nut (Refer to Kit [*]) ......... 2
20 014-0208-00 Tube ..................................................... 1
21 053-0394-01 Grommet ............................................... 1
22 014-0202-00 Male Branch Tee ................................... 1
23 014-0207-00 PCB Pres. Sensor Tube (Refer to Kit [*]) 1
24 002-0359-00 Pressure Relief Valve (35 P.S.I.)
(Includes Elbow, Item 36) ................... 1
25 053-0613-02 Tube - Pressure Relief .......................... 1
26 015-0013-05 High Temp Cable Tie (Refer to Kit [*]) .... 4
27 014-0217-00 Compression Connector (Refer to Kit [*]) 1
28 053-0404-01 Tube-PCB Connector (Refer to Kit [*]) ... 1
29 002-0357-00 Temperature Probe Assembly ............... 1
30 053-0407-00 Bushing (Refer to Kit [**]) ....................... 1
31 030-0858-00 Level Sensor Assembly (Refer to Kit [**]) 1
32 014-0204-00 Tube ..................................................... 1
33 014-0184-01 Male 90° Elbow ...................................... 1
34 014-0258-00 Male Elbow ............................................ 1
35 052-0173-00 Condensing Coil .................................... 1
36 016-0450-00 Hose Clip .............................................. 1
37 053-0391-01 Hose ..................................................... 1
[*] 002-0593-01 (*)Pressure Sensor Tube Kit (Includes #'s
19, 23, 26, 27, & 28)
[**] 002-0358-00 Lever Sensor Tube Kit (Includes
Item 8, 9,10,16,30,and 31) ..................... 2
MA201910
C
A
B
8
9
10
18
21
22
1
3
4
7
11
12
13
14
15
6
2
16
5
17
8
9
10
37
20
24
23
31
33
36
35
19
25
26
26
27
28
29
30
32
34
19
19
DX1101 thru DX1170 DY1000 thru DY1007 OM4865 thru OM5130
Used on units with Serial Numbers:
