Midmark M9 - Page 74

SECTION VI
PARTS LIST
M9 / M9D
Used on units with Serial Numbers:
CZ10065, DA1005, DB1283, DX3148, DY1191, FD2265, FF1737, FG1618, FK2325,
FL1964, LA1029, OM25096 - thru Present
C
A
B
33
F
D
i
r
e
c
t
l
o
w
i
o
n
W
c
H
e
r
e
r
e
n
h
0
0
5
-
2
0
6
4
0
-
0
1
31
30
29
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
27
28
25
25
26
32
18
Page 6-5.8
© Midmark Corporation 2002 SF-1827 Rev. 12//08 Printed in U.S.A.

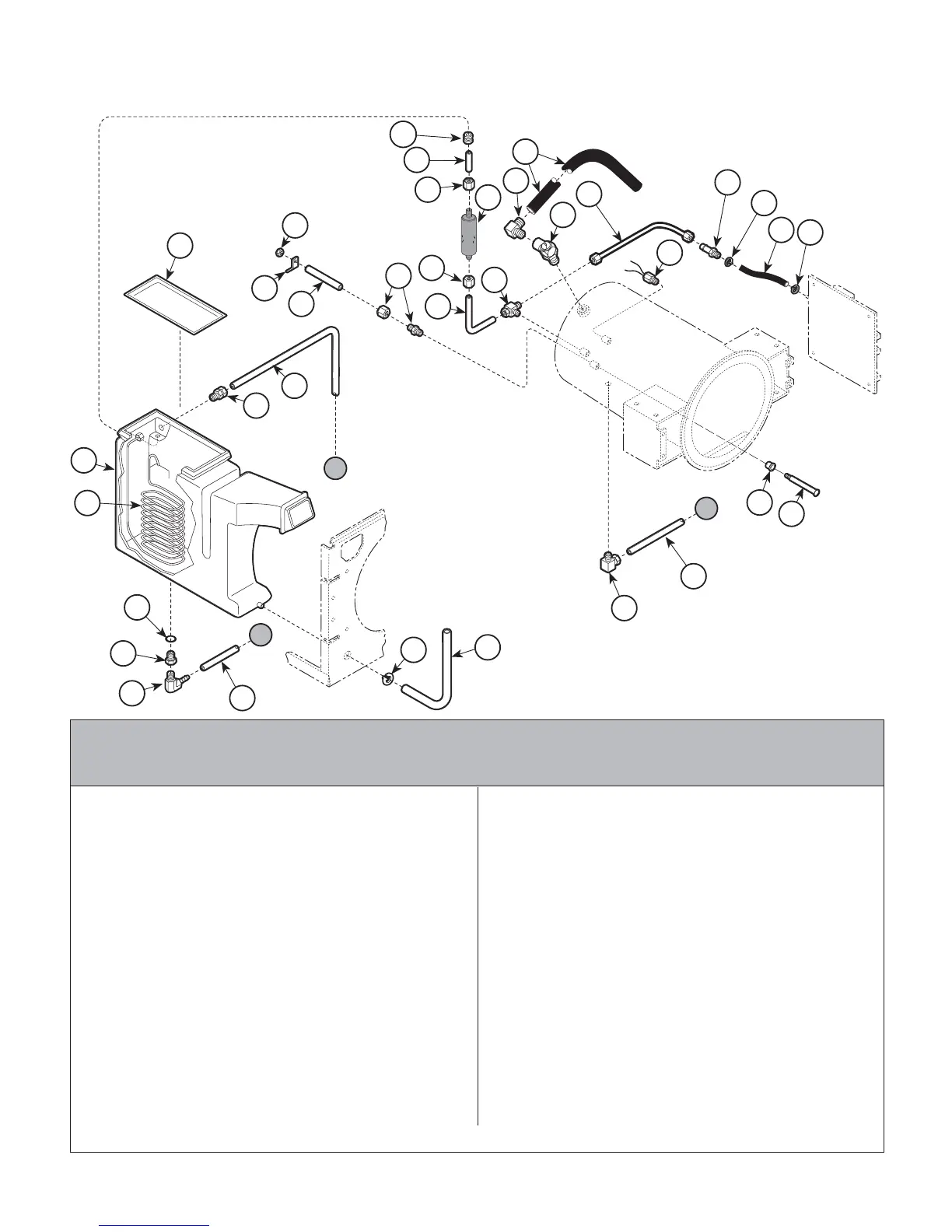

Plumbing & Sensor Components
Always Specify Model & Serial Number
Item Part No. Description Qty.
Item Part No. Description Qty.
1 053-0966-00 Condensing Tank (Includes Item 15) ..... 1
2 014-0216-00 Bulkhead Union ..................................... 1
014-0392-00 Compression Nut Only ........................ AR
3 014-0205-00 Tube (M9) ............................................. 1
014-0277-00 Tube (M9D) ............................................ 1
4 016-0748-01 Hose Clip .............................................. 1
5 052-0173-00 Condensing Coil ..................................... 1
6 053-0391-01 Hose ..................................................... 1
7 002-0358-00 Lever Sensor Tube (Includes Item
8,9,15,29, and 30) ................................. 1
8 015-0595-00 Terminal ................................................ 1
9 041-0006-02 Locknut ................................................. 1
10 053-0393-00 O-ring ................................................... 1
11 014-0209-00 Bulkhead Couple ................................... 1
12 014-0348-00 Barb Fitting Elbow .................................. 1
13 053-1033-01 Norprene Tubing ................................... 1
14 053-0966-01 Condensing Tank Lid (Part of Item 1) .... 1
15 014-0212-00 Connector ............................................. 1
16 014-0431-00 Tube ..................................................... 1
17 002-0654-00 Steam Trap Assembly (Includes Items
16, 18, 19, and 33) ................................. 1
18 014-0392-00 Compression Nut (Refer to Kit [*]) ......... 2
19 014-0208-00 Tube ..................................................... 1
20 014-0258-00 Male Elbow ............................................ 1
21 014-0202-00 Male Branch Tee ................................... 1
22 014-0315-00 PCB Pres. Sensor Tube (Refer to Kit [*]) 1
23 002-0359-01 Pressure Relief Valve (40 P.S.I.)
(Includes Elbow, Item 34) ...................... 1
24 053-0613-02 Tube - Pressure Relief .......................... 1
25 015-0013-05 Cable Tie (High Temp) .......................... 2
26 014-0217-00 Compression Connector (Refer to Kit [*]) 1
27 053-0404-04 Tube - PCB Connector (Refer to Kit [*]) 1
28 002-0357-00 Temperature Probe Assembly ............... 1
29 053-0407-00 Bushing ................................................. 1
30 030-0858-00 Level Sensor Assembly ......................... 1
31 014-0204-00 Tube ..................................................... 1
32 014-0184-01 Male 90° Elbow ...................................... 1
33 053-0394-02 Grommet ................................................ 1
(*) 002-0593-01 (*)Pressure Sensor Tube Kit (Includes #'s
18, 22, 25, 26, & 27)
MA510807
