SECTION VI
PARTS LIST
M9 / M9D
34
1
2
3
4
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
30
31
32
33
35
36
37
3
39
7
6
28
38
Page 6-6.1© Midmark Corporation 2002 SF-1827 Rev. 7/10 Printed in U.S.A.

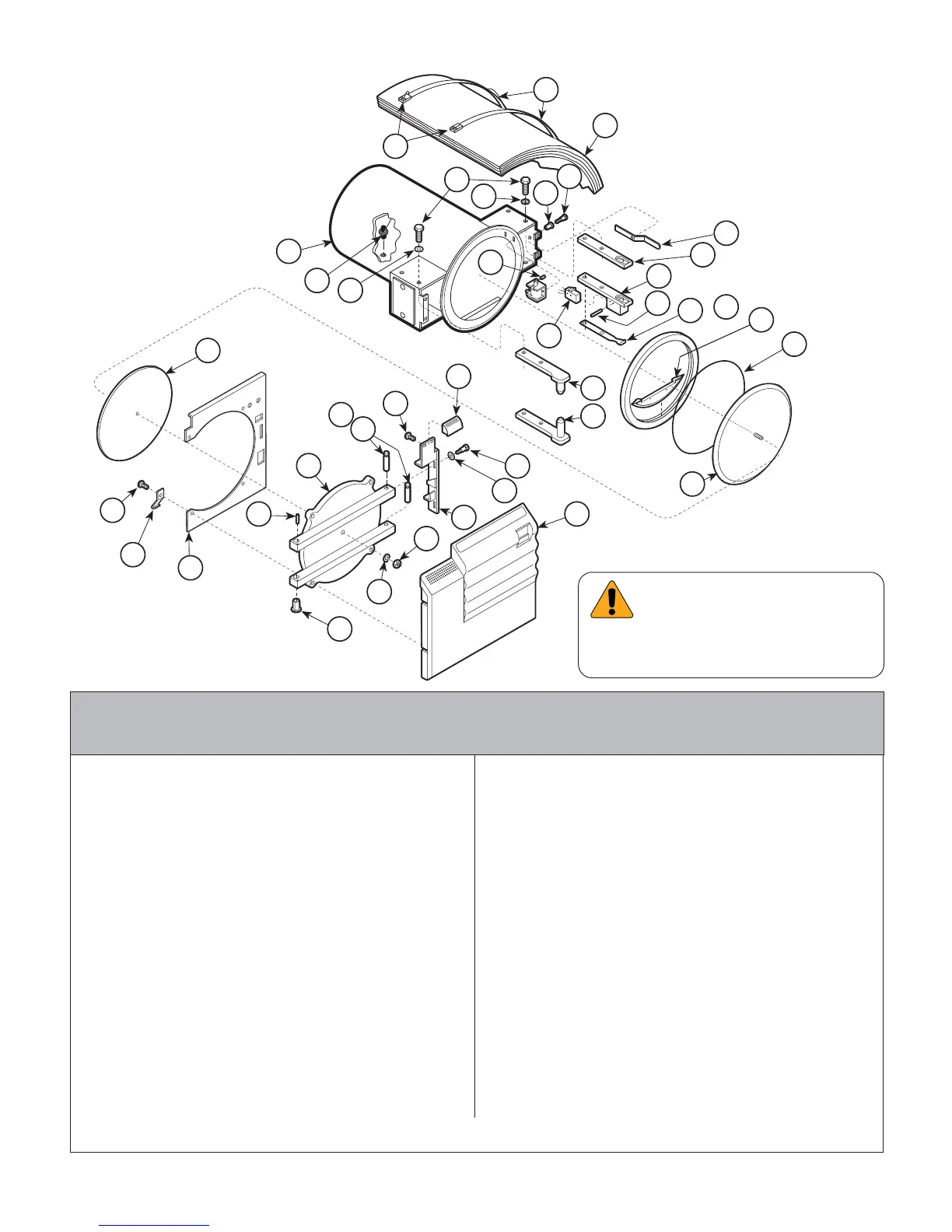

Pressure Vessel Components
Item Part No. Description Qty.Item Part No. Description Qty.
MA202013
CZ8200, DB1278, DX3007, DY1186, FD2132, FF1635, FG1472,
FK3225, FL1964, LA1029, and OM21775 - thru Present
1 Chamber ............................................... 1
2 Screw ................................................... 8
3 Washer ................................................. 8
4 Right Bracket ........................................ 1
5 Switch Weldment ................................... 1
6 053-0366-00 Door Gasket (Incl. in 002-0361-01 Kit) .. 1
7 053-0903-00 Dam Gasket (Incl. in 002-0361-01 Kit) ... 1
8 030-1016-00 Housing ................................................. 1
9 Top Bracket .......................................... 1
10 Bottom Bracket ..................................... 1
11 016-0395-01 Door Insulation Pad ............................... 1
12 042-0104-00 Roll Pin .................................................. 1
13 Door ...................................................... 1
14 Door Bolt ............................................... 2
15 042-0106-00 Shoulder Screw ..................................... 2
16 050-3525-00 Latch ..................................................... 1
17 041-0000-00 Nut ........................................................ 1
18 045-0000-00 Lockwasher .......................................... 1
19 Flange Bearing ...................................... 2
20 H99387 Aluminum Seal ....................................... 2
21 H99388-36 Insulation Strap ..................................... 2
22
(N.L.A.) Insulation Wrapper ................................ 1
23 016-0131-18 Flanged Bearing (Not Used on M9D) ..... 1
24 042-0106-01 Shoulder Screw (Not Used on M9D)
(Apply Lubricant #064-0002-00]) ......... 1
25 064-0014-00 Grease ............................................... AR
26 050-5192-00 Latch Lever (Not Used on M9D) ............ 1
27 042-0001-23 Roll Pin .................................................. 2
28 050-5245-01 Spring Arm ............................................ 1
29 002-0362-00 Door Switch (Includes Item 27) ............. 1
30 042-0001-09 Roll Pin (Not Used on M9D) ................... 1
31 040-0008-50 Screw ................................................... 4
32 050-2011-00 Inside Door Cover ................................. 1
33 040-0010-75 Screw ................................................... 2
34 053-0912-00 Door Handle (M9) .................................. 1
(N.L.A.) Door Handle (M9D) ................................ 1
35 002-0364-00 Ritter M9 Door Panel (w/decals) ............. 1
002-0364-01 Midmark M9 Door Panel (w/decals) ........ 1
002-0364-02 EMS M9 Door Panel (w/decals) .............. 1
(N.L.A.) M9D Door Panel ..................................... 1
36 002-0360-00 Filter ...................................................... 1
37 050-2347-00 Door Spring ........................................... 1
38 045-0000-04 Washer ................................................. 2
39 057-0790-01 Gasket Ring (Incl. in 002-0361-01 Kit) .... 1
Used on units with Serial Numbers:
WARNING
Do not attempt to adjust,
modify, or alter in any manner, any part
of the pressure vessel. Serious injury
and/or damage to the unit could result.
Always Specify Model & Serial Number
N.L.A. Denotes "No Longer Available
