Midmark Preva - Page 101

Preva Installation/Service Manual, 00-02-1577, Revision E01
98

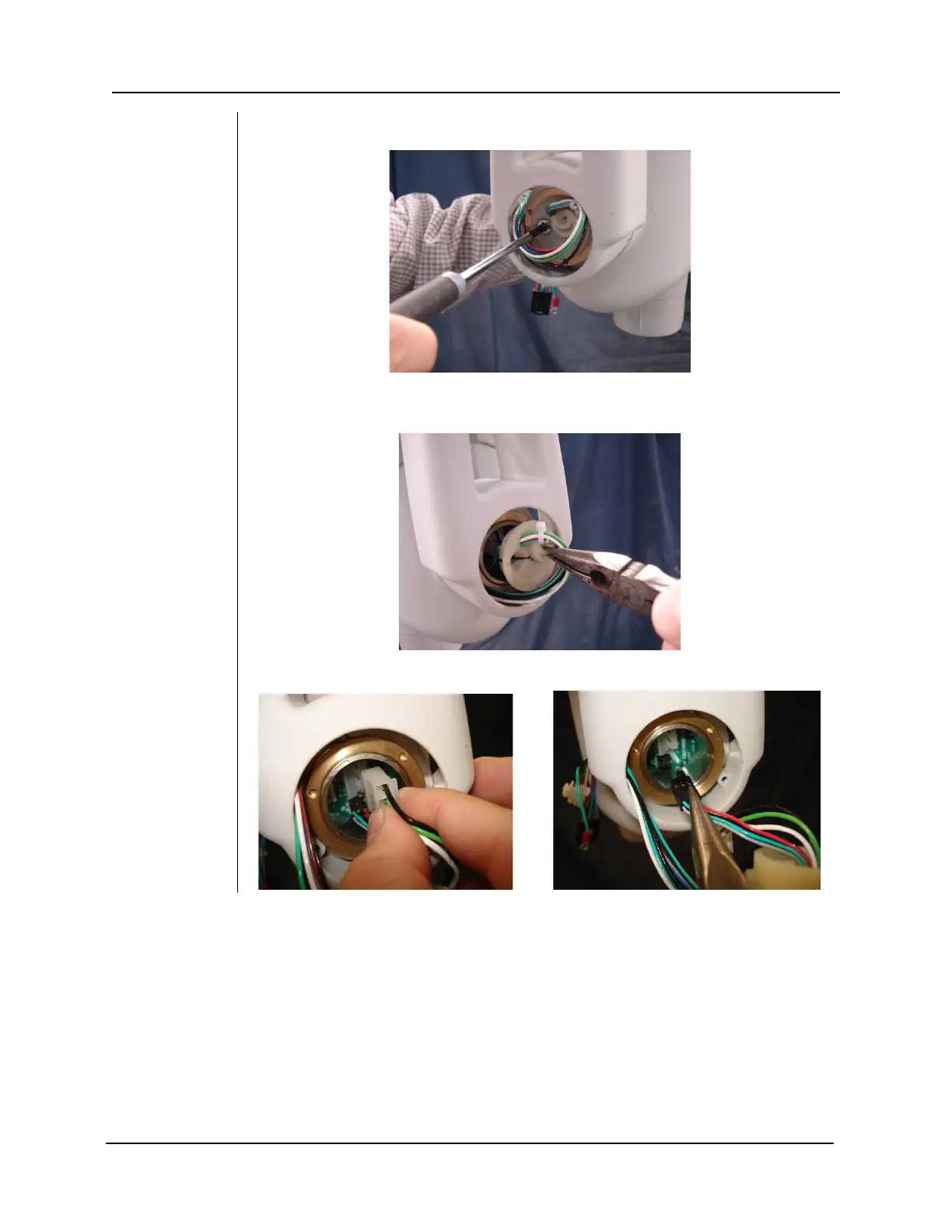

Figure 76
9. Remove the larger Phillips head screw.
Figure 77
10. Remove the larger retaining ring by pulling it out with a pair of needle
nose pliers.
Figure 78
11. Unplug the black and white connectors located inside the tubehead.
