Preva Installation/Service Manual, 00-02-1577, Revision E01
107
the
Horizontal
Arm Brake
Assembly
Locate the friction assembly screws. Using a 3 mm Allen wrench, as shown in Figure
100, tighten or loosen screws as necessary to get proper movement without
unwanted horizontal movement of the Articulating Arm.
Do not attempt to adjust any other screws in the horizontal arm.

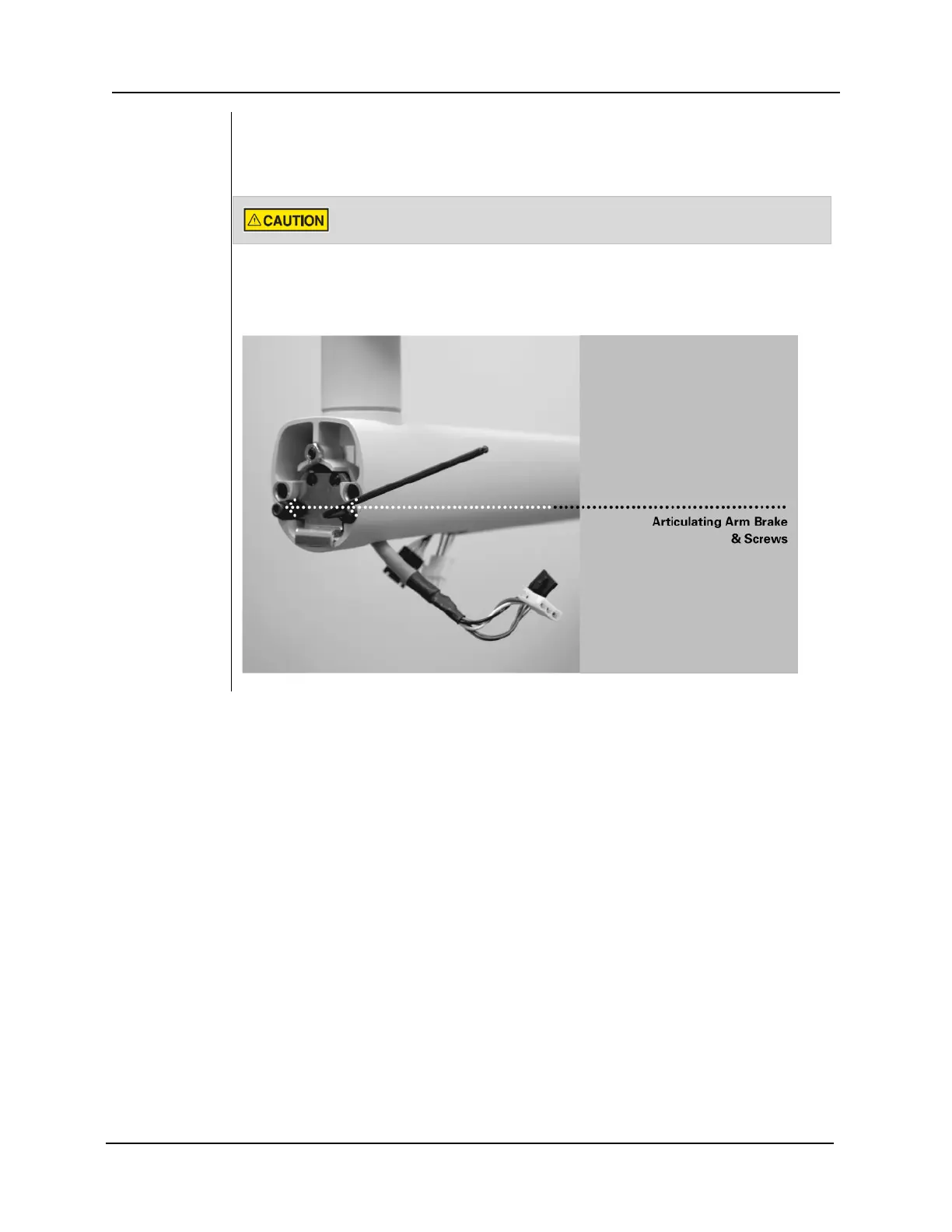

Figure 100
Adjusting the
Articulating
Arm Brake
Assembly
