Preva Installation/Service Manual, 00-02-1577, Revision E01
19
Stud Wall
When installing the Preva Dental X-ray System on two 41 cm (16 in.) centered wood studs,
the Control Unit is mounted to a wall plate (Two Stud Mounting Kit 30-A2042), which
mounts to the wood studs, as shown in
Figure 10. Fasteners are provided with the wall
plate.
In mounting configurations using the dual stud wall plate, there are several holes available
for incoming line power. This is to provide for various locations of existing power boxes
when installing as a replacement unit. Refer to the reverse side of the mounting template,
Figure 8, for hole locations.

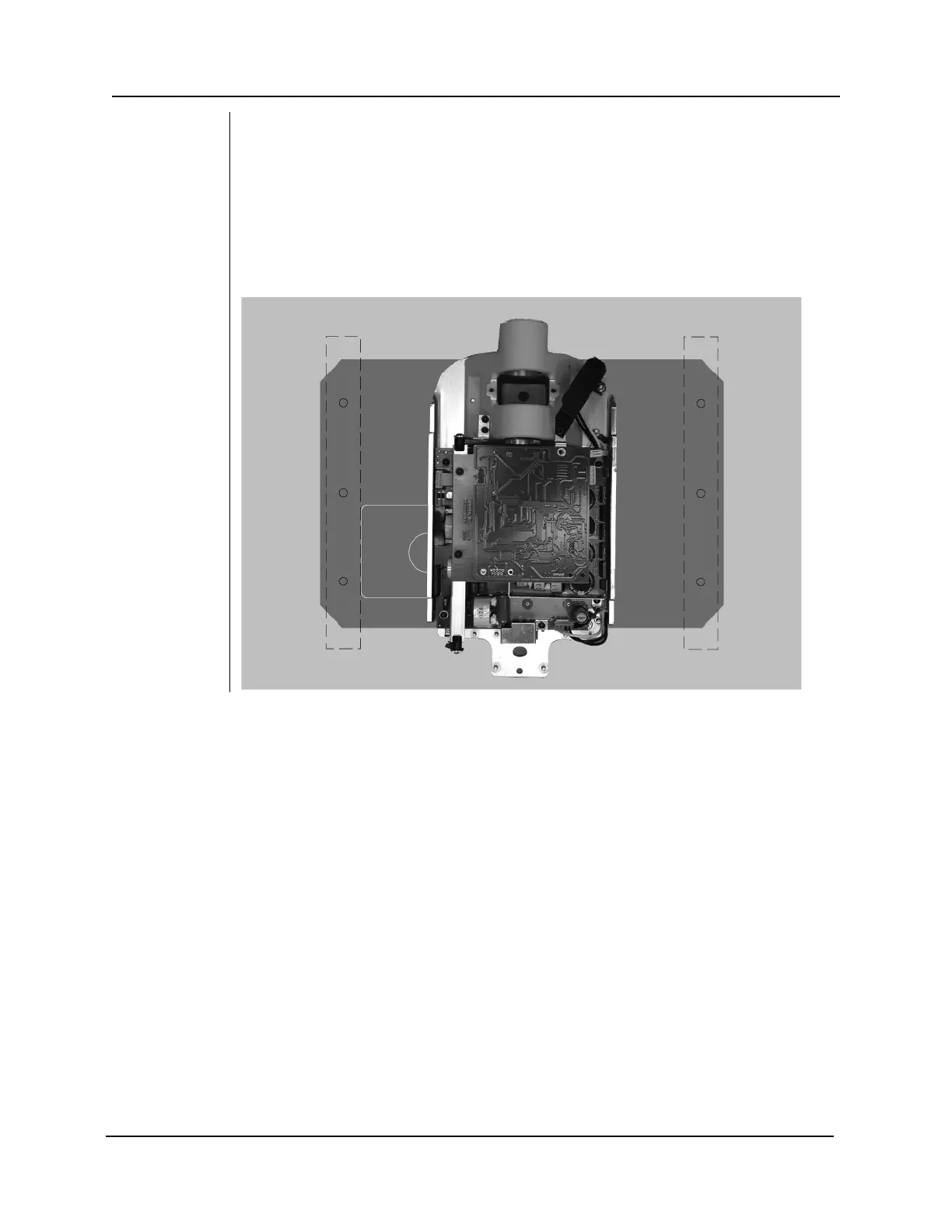

Figure 10
Dual Wood
Stud Mount
