Front of GR8

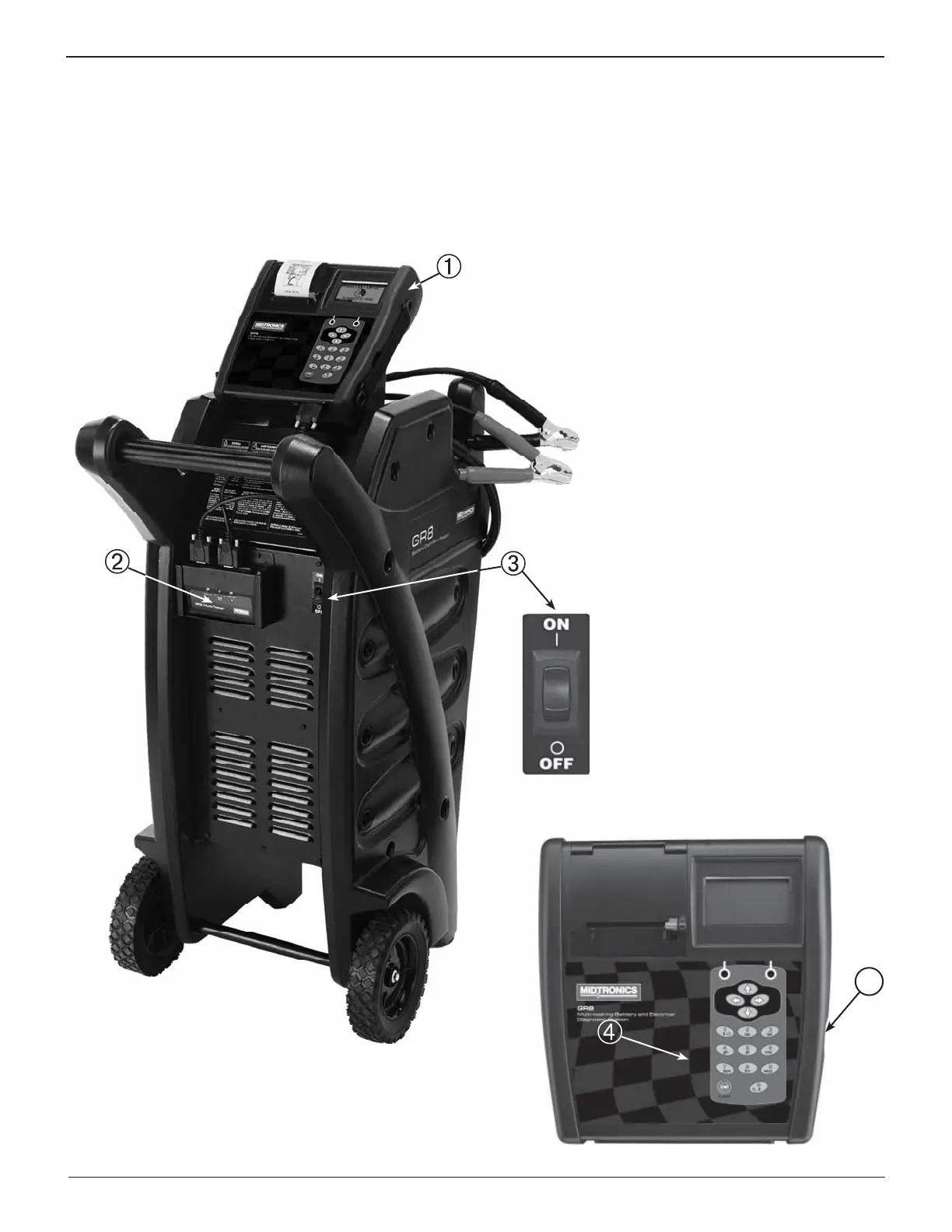

The controls to the GR8 are accessible on the front of the
charger: the control module (user interface) and the ON/OFF
switch.
n
Control module
Backlit graphical display and
keypad for data entry.
o
Multitasker module
Dual connectors for testing more
than one battery simultaneously.
p
ON/OFF switch
Turns power on and off to the
GR8.
q
STATUS light
Lights in conjunction with beeping
alarm to indicate transitions and
warnings .
r
Data card slot
For future upgrades via a data card.
The slot contains a plastic filler
card for protection.
