GR8-1200 OEM
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527
www.midtronics.com
42
Chapter 13: Cable Drop Test
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527
www.midtronics.com
Other Circuit
This test enables you to measure voltage drop across other
components.
1. SELECT CIRCUIT: Use the UP/DOWN ARROWS or the nu-
merical keypad to select the OTHER.
1
BATTERY GROUND
2 STARTER CIRCUIT
3 ALT CIRCUIT
4 OTHER
Press the NEXT soft key to continue.
2. SET AMPS: Use the UP/DOWN ARROWS or the keypad to
select the rated amperage of the circuit you are testing.
The default is 10 A.
Press the NEXT soft key to continue.
3. Connect the positive (+) clamp of the battery test leads to
the component’s positive terminal (+). Connect the nega-
tive (–) clamp to the component’s negative (–) terminal.
4. Connect the positive (+) DMM clamp to the battery’s posi-
tive (+) post. Connect the negative clamp (–) to the bat-
tery’s (–) negative post.
For the next few seconds the GR8 will display the word TESTING
and a stopwatch while it evaluates the battery ground.

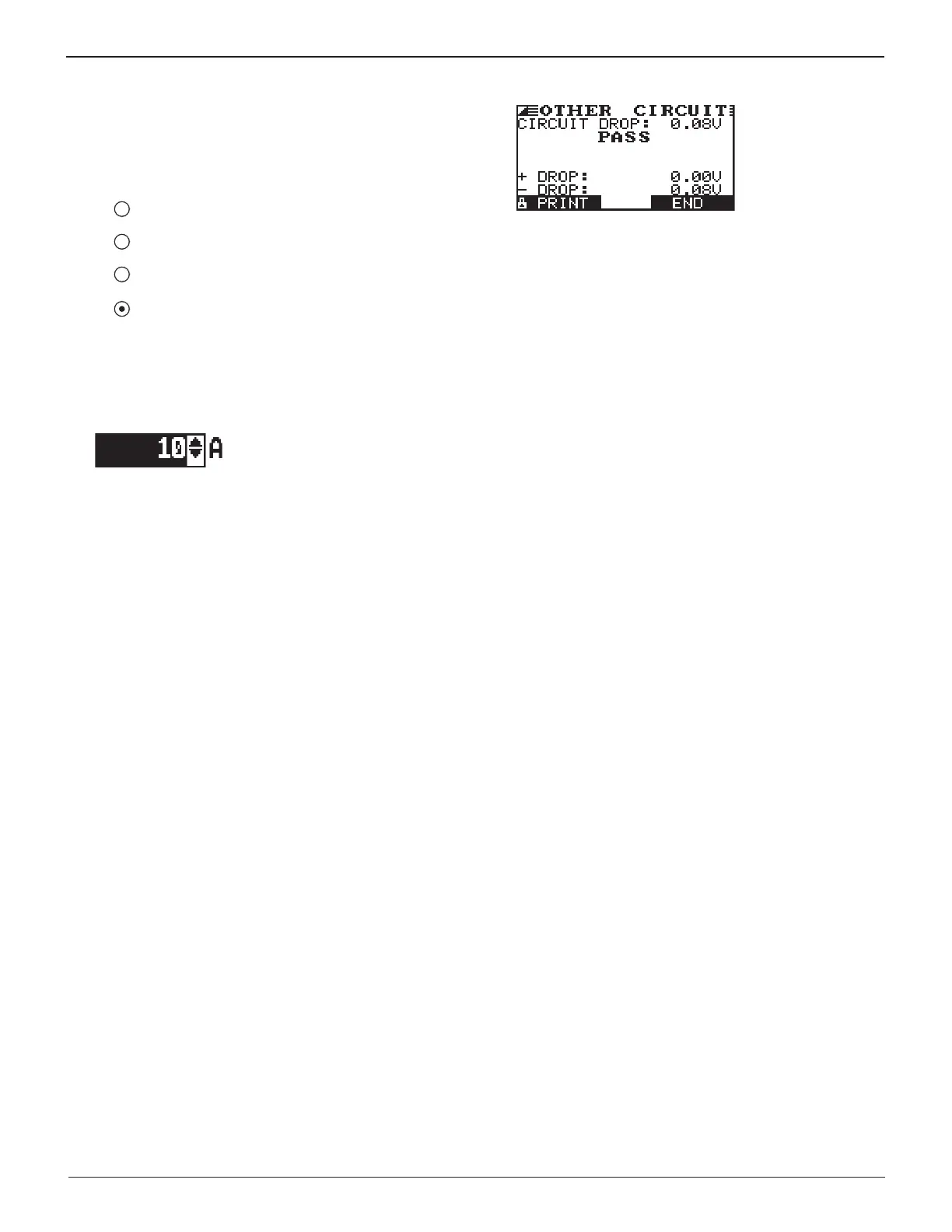

Other Circuit Test Results
If there is a problem, the decision is CLEAN AND RETEST OR
REPLACE. To print the results, select the PRINT soft key. To
return to the Main Menu, press the END key.
