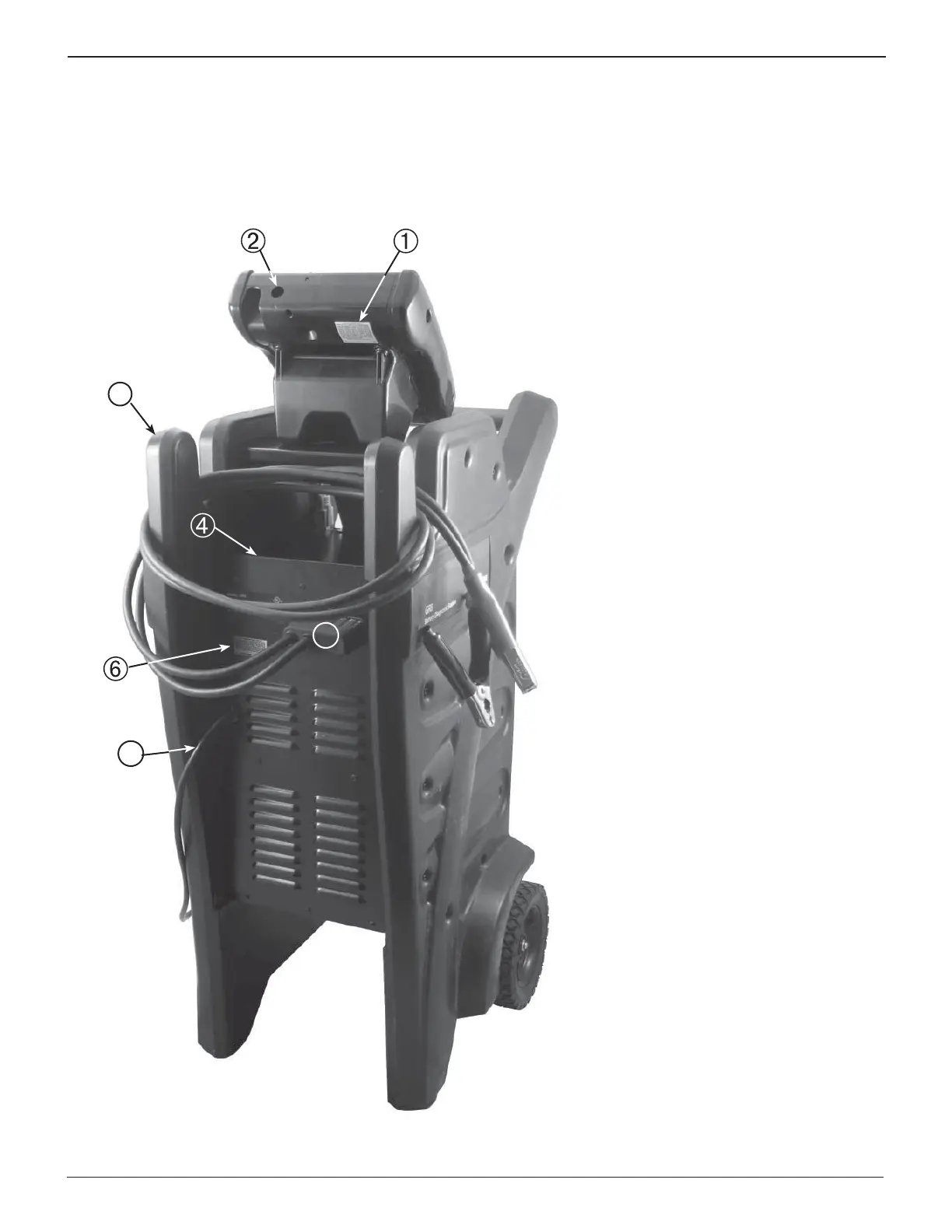

Back of GR8
In addition to containing the outlets for the charger cables and
power cord, the back of the GR8 is the location for the serial
numbers for the charger engine and the control module. Both
numbers are necessary for warranty registration.
n
Serial number label
(for control module)
o
System test cable connector
p
Cable wrap
For storing cables when not in use.
q
Storage shelf
r
Charger cable connectors
s
Serial number label
(for charger engine)
t
AC power cord
Connection to grounded nominal
120 V outlet.
Chapter 2: Overview
