Installation
*INSTALLATION*
101
Installation
 Damage caused by condensation.
In order to reduce the risk of damage from
condensation, the cabinetry in the area
around the dishwasher should be de-
signed for commercial use.
Only use cabinetry that is designed for
commercial use.

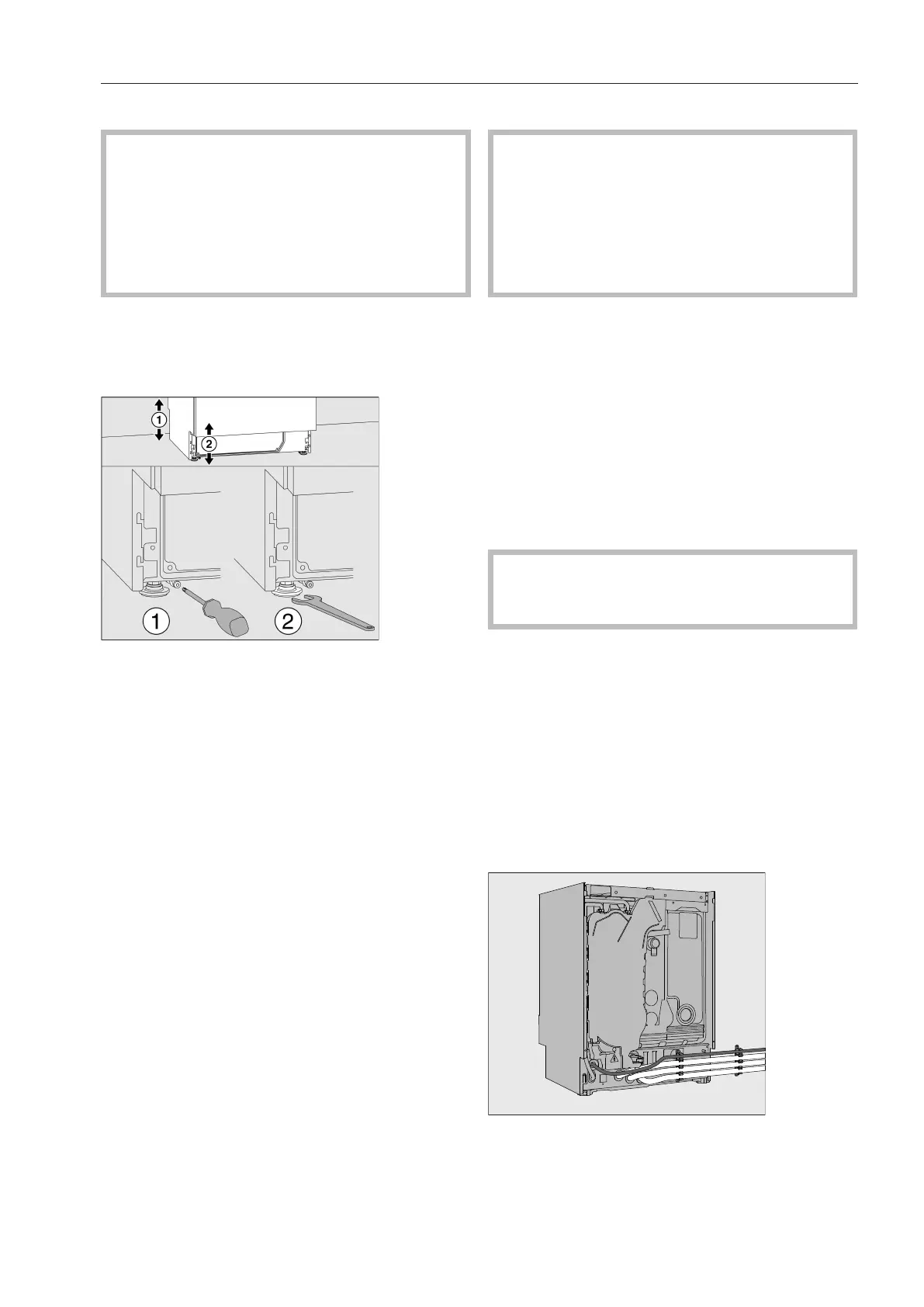

The dishwasher must be stable and horizon-
tal. Any unevenness in the floor level and
height of the machine can be compensated
for by adjusting the four feet.
The machine height can be adjusted from 32
5/16"-34 5/8" (820–880mm) using the
machine feet. Dishwashers with lids have an
additional 9/16" (15mm) in height.
The front machine feet can be adjusted with
a wrench (wrench size 13); the rear ones can
be adjusted with a T20 Torx screw.
If the runners of the rear machine feet are
not installed, the machine feet can also be
adjusted with the wrench.
They are adjusted upward when turned
clockwise and downward when turned
counterclockwise.
If the dishwasher is to be installed next to
other machines and cabinetry or in a recess,
an installation space measuring at least 23
5/8" (600mm) in width and 23 5/8"
(600mm) in depth is required.
Dishwashers with active drying require a
space measuring 22 3/4" (580mm) in
depth.
Undercounter installation
 Risk of the machine tipping.
To ensure stability, an undercounter dish-
washer must only be installed beneath a
continuous countertop that is bolted to
the adjacent cabinetry.
Install the dishwasher underneath a
bolted continuous countertop.
If the dishwasher is to be installed beneath a
continuous countertop, an installation space
measuring at least 23 5/8" (600mm) wide,
23 5/8" (600mm) deep, and 32 5/16"
(820mm) high is required.
Dishwashers with active drying require an
installation space measuring 22 3/4"
(580mm) in depth.
Dishwashers with a plinth return are sup-
plied with a toe-kick filler panel. This can be
installed instead of a toe-kick board.
When adjusting the dishwasher height,
the feet must not be unscrewed by more
than 2 3/8" (60mm).
Hose holder
The supplied hose holders can be used to
lay the power cord and the hoses for supply
and waste water in a way that saves space.
The hose holder prevents hoses from kinking
or crushing when installing the machine in
tight recesses.
The power cord and hoses can be laid either
on the left or the right, depending on the
connection situation.
