Loading the dishwasher
42

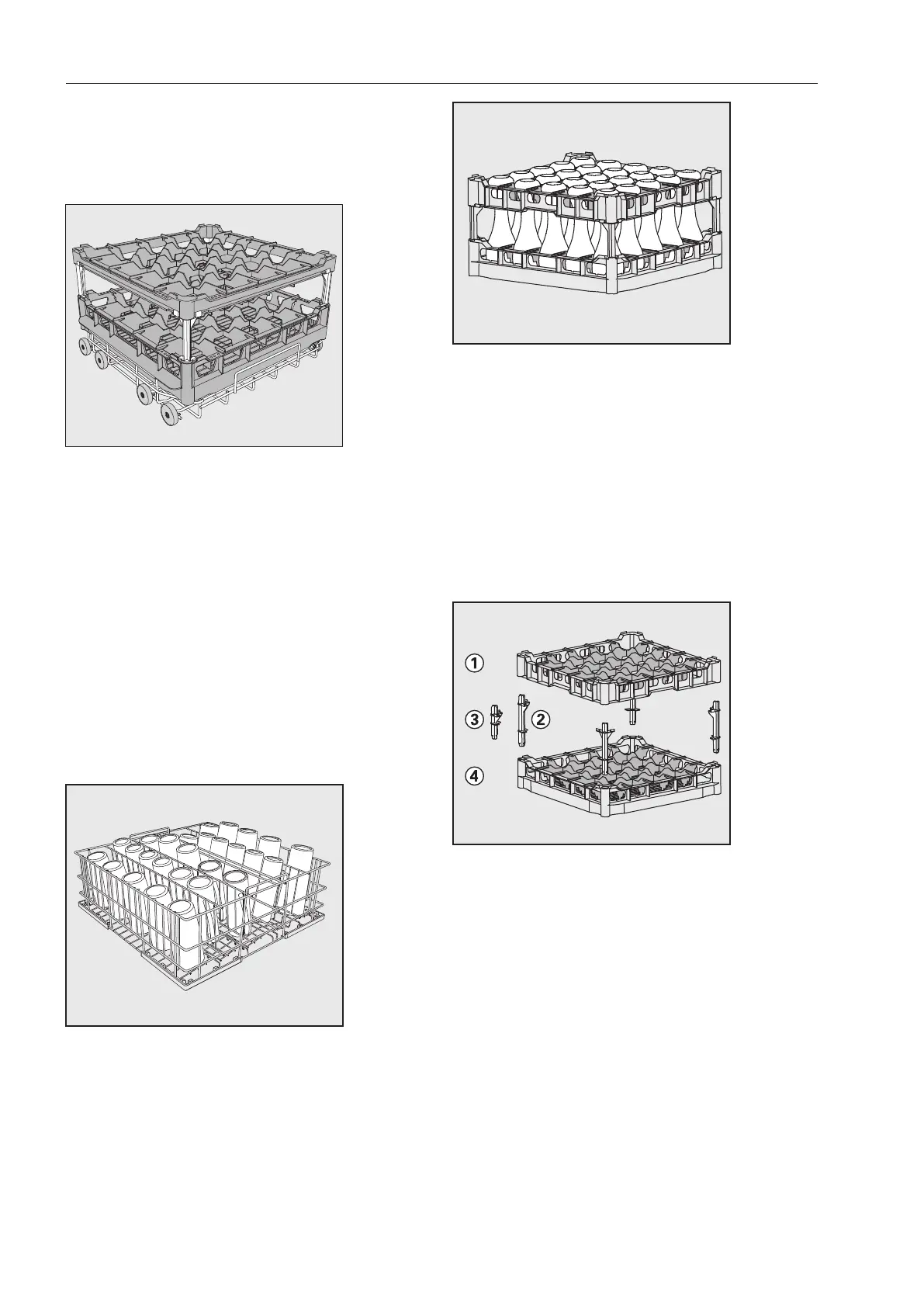

Use of plastic trays
The APFD220 Lower Basket Carrier can be
loaded with plastic trays measuring 19 3/4"
x 19 3/4" (500x500mm).
The special O885 Upper Basket Carrier is
required for loading plastic trays in the upper
basket (max. loading height for wash items
5" (130mm)).
The special U876 Lower Basket Carrier is
required for loading taller wash items in the
lower basket.
Which basket combination to use will de-
pend on the type, shape, and size of the
wash items.
For further information on baskets, please
contact your Miele dealer or Miele Cus-
tomer Service.
Examples: (lower baskets)
U525/5-Row Wire Basket
The wire basket can be used for glasses with
a maximum diameter of 8cm.
U534–U537 Plastic Trays with compartments for
different glass heights
In this example, the plastic tray is connected
to the top frame by long extenders.
(For assembly in U876 Lower Basket Carrier
only)
Assembling a plastic tray
The height of the tray can be altered by in-
stalling a top frame to the base basket
with long or short extenders.
Push all four extenders into the base bas-
ket.
Press the top frame securely onto the
extenders.
