Miele PFD 404 U - Machine Description; Appliance Overview

Machine description
15

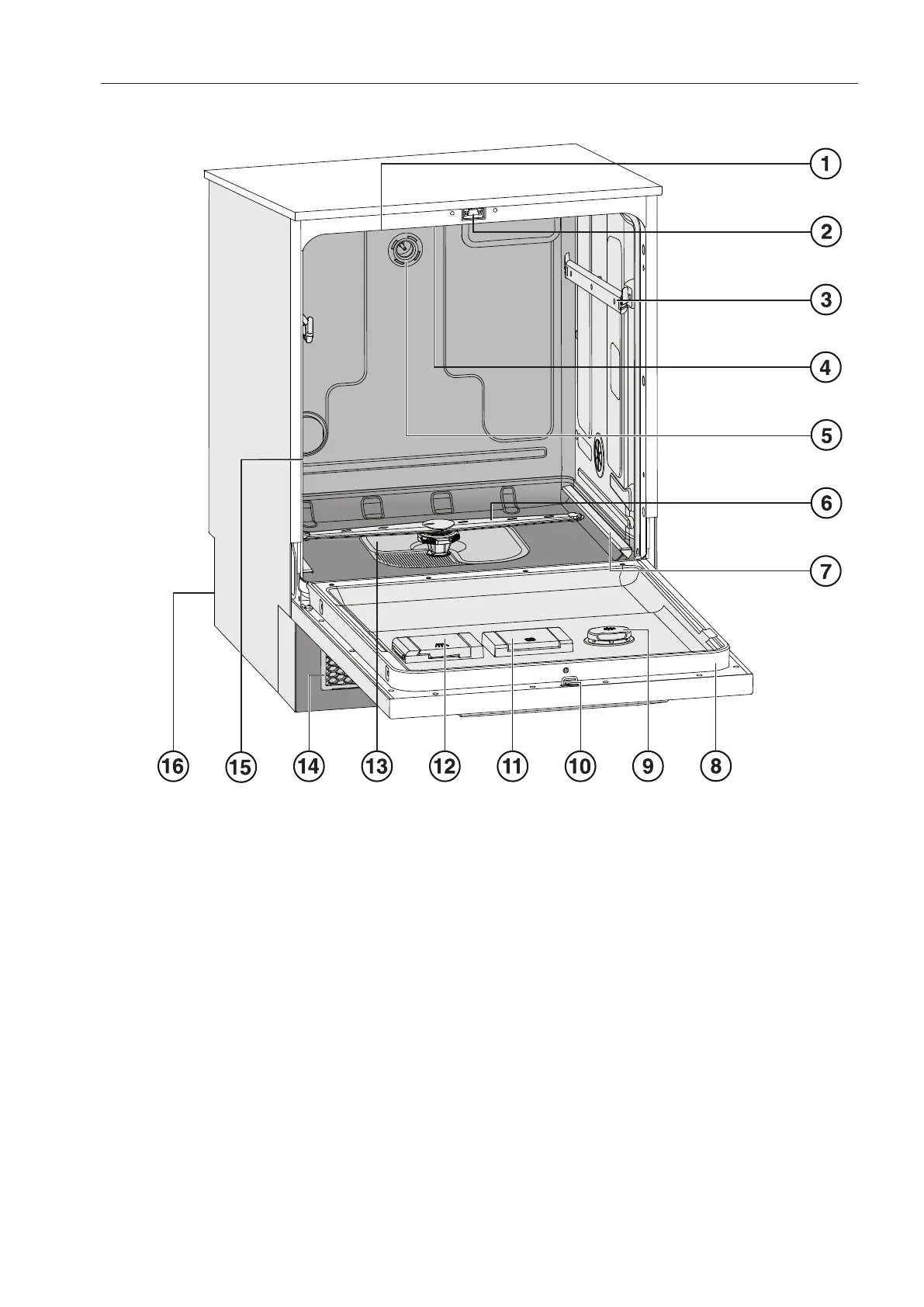

Appliance overview
a
Air inlet for fresh air (depending on the
model)
b
Door lock
c
Upper basket runners
d
Top machine spray arm
e
Upper basket water connection
f
Lower machine spray arm
g
Lower basket runners
h
Data plate
i
Rinsing agent container
j
Door lock latch
k
Container for reactivation salt
l
Container for powder cleaning agents
m
Filter combination
n
Air outlet and inlet grille with filter for fresh
air (depending on the model)
o
Outlet for wash cabinet air (depending on
the model)
p
Rear:
– electrical and water connections
– suction wand(s) for external containers
(depending on the model)
– connections for external dispenser mod-
ules (DOS modules)
