Guide to the machine
9

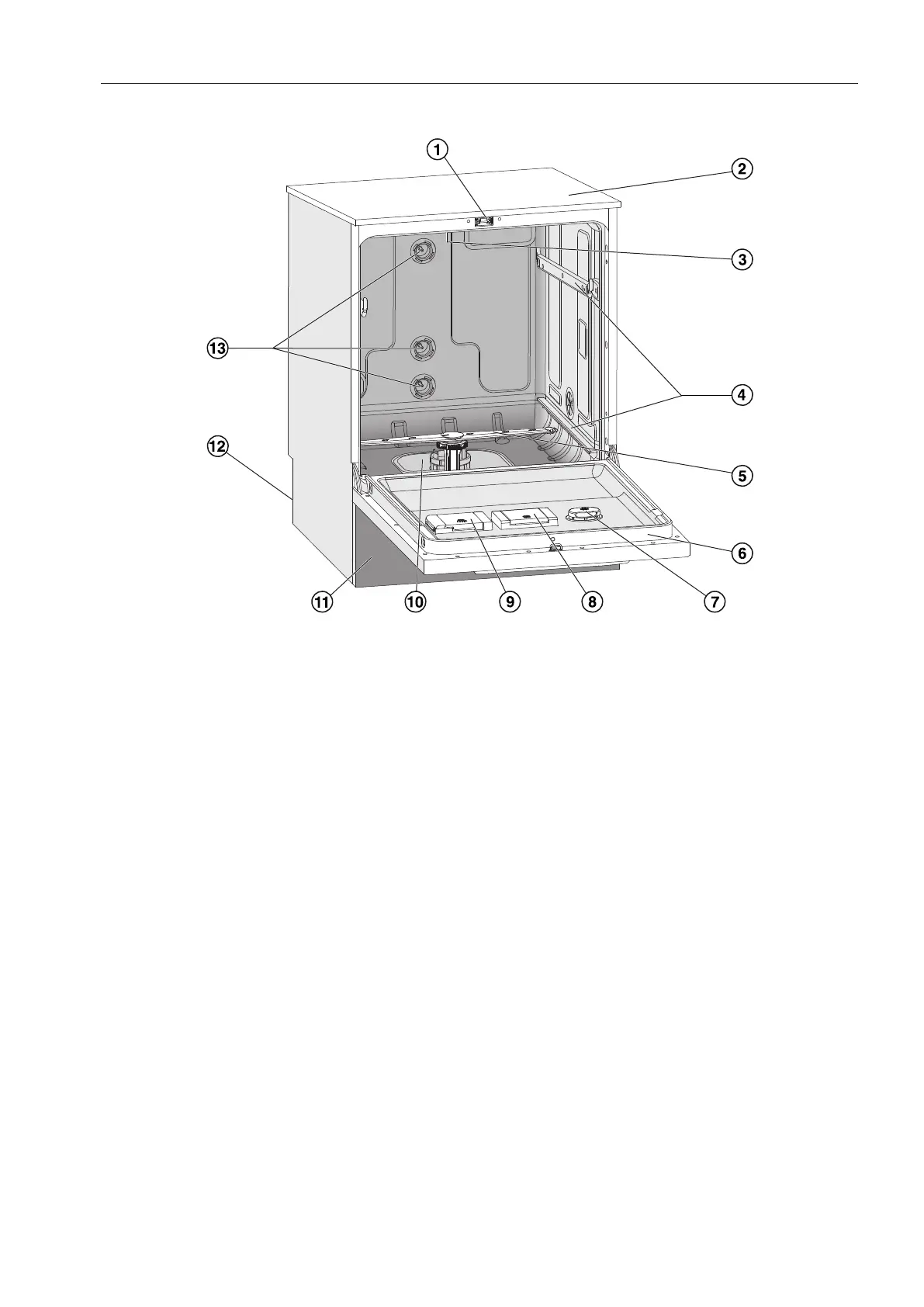

Machine overview
a
Door lock
b
Test point for performance checks
(top, front right; only visible with lid
removed)
c
Upper machine spray arm
d
Rails for baskets and mobile units
e
Lower machine spray arm
f
Data plate
g
Container for neutralising agent or rinsing
agent
h
Salt container
i
Dispenser for powder cleaning agent
j
Filter combination
k
Plinth cover
l
On the back:
– Second data plate
– Electrical and water connections
– Connection for an external dispensing
module (DOS module)
m
Water connections for mobile units and
baskets
