Installation
*INSTALLATION*
56
Installation surface
A concrete floor is the most suitable in-
stallation surface, being far less prone
to vibration during the spin cycle than
wooden floorboards or a carpeted sur-
face.
 The machine must be level and se-
curely positioned.
 To avoid vibrations during spinning,
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
 Install the machine on a plywood
base (at least 70x60x3cm). The
base should span several joists and
be bolted to the joists and not only to
the floorboards.
Tip: If possible, install the machine in a
corner of the room. This is usually the
most stable part of the floor.

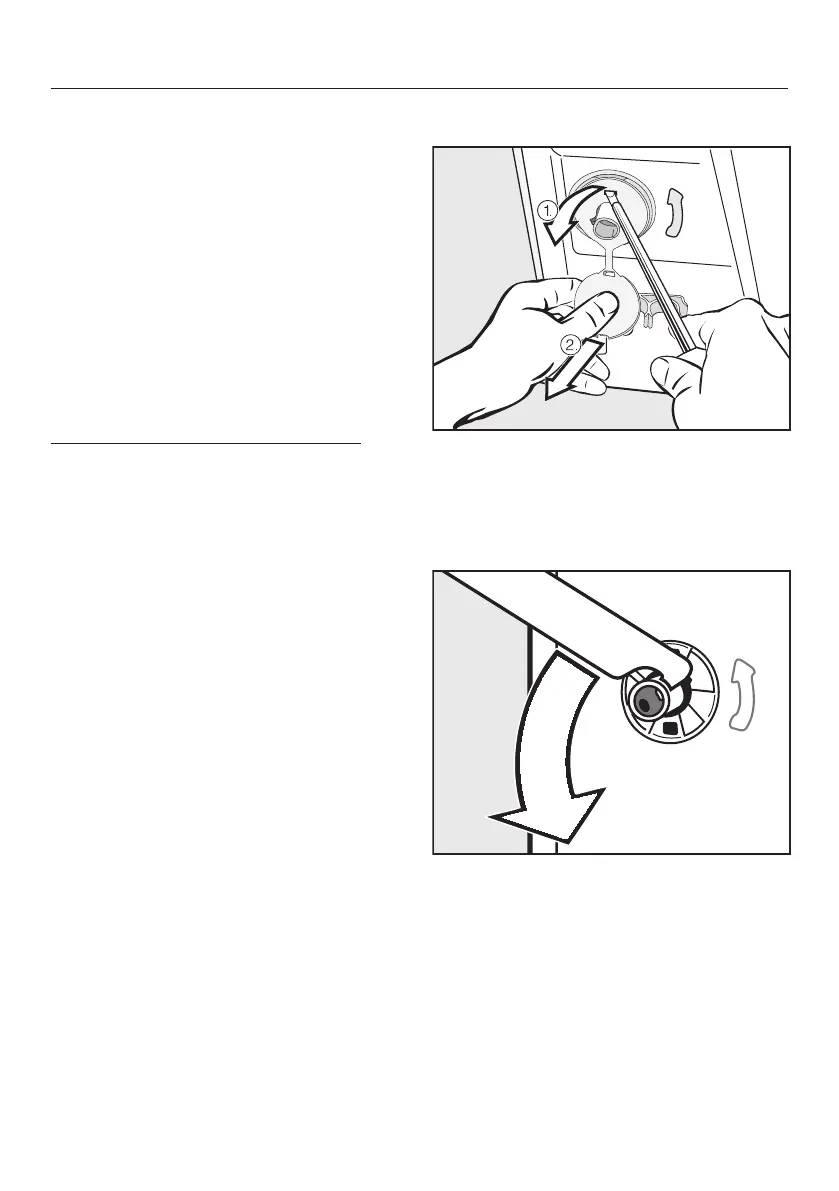

Removing the transit bars
 Remove the left and right caps.
1. Pull on the secured cap stoppers
2. and use a screwdriver to release the
catches at the top and bottom.
 Using the spanner supplied, turn the
left-hand transit bar 90°.

Miele PWM 307 Specifications

General

Current	10 A
Connected load	2400 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.4 W
Water consumption per cycle	37 L
Energy consumption washing per cycle	- kWh
Package depth	768 mm
Package width	660 mm
Package height	944 mm
Package weight	102000 g
Door color	Silver
Door hinge	Right
Water fill	Cold
Cord length	2 m
Drum volume	64 L
Control type	Rotary, Touch
Loading type	Front-load
Certification	CE, VDE EMC, VDE, WEEE
Product color	White
Built-in display	Yes
Inlet hose length	1.55 m
Custom panel-ready	-
Door opening angle	167 °
Illumination color	Yellow
Outlet hose length	1.5 m
Appliance placement	Freestanding
Dispenser tray type	3-way
Drum capacity	7 kg
Cycle time (max)	199 min
Delay start (max)	24 h
Residual moisture	48 %
Maximum spin speed	1400 RPM
Noise level (spin)	72 dB
Noise level (wash)	50 dB
Number of washing programs	12
Cycle time (quick washing program)	15 min

Weight and Dimensions

Depth	714 mm
Width	596 mm
Height	850 mm
Weight	98000 g
Door diameter	300 mm
