Miller Continuum 500 - Page 56

OM-257 798 Page 52
. Hardware is common and
not available unless listed.
1
10
15
2
11
16
3
12
4
8
13
5
6
9
14
7
269 780-A
18
17

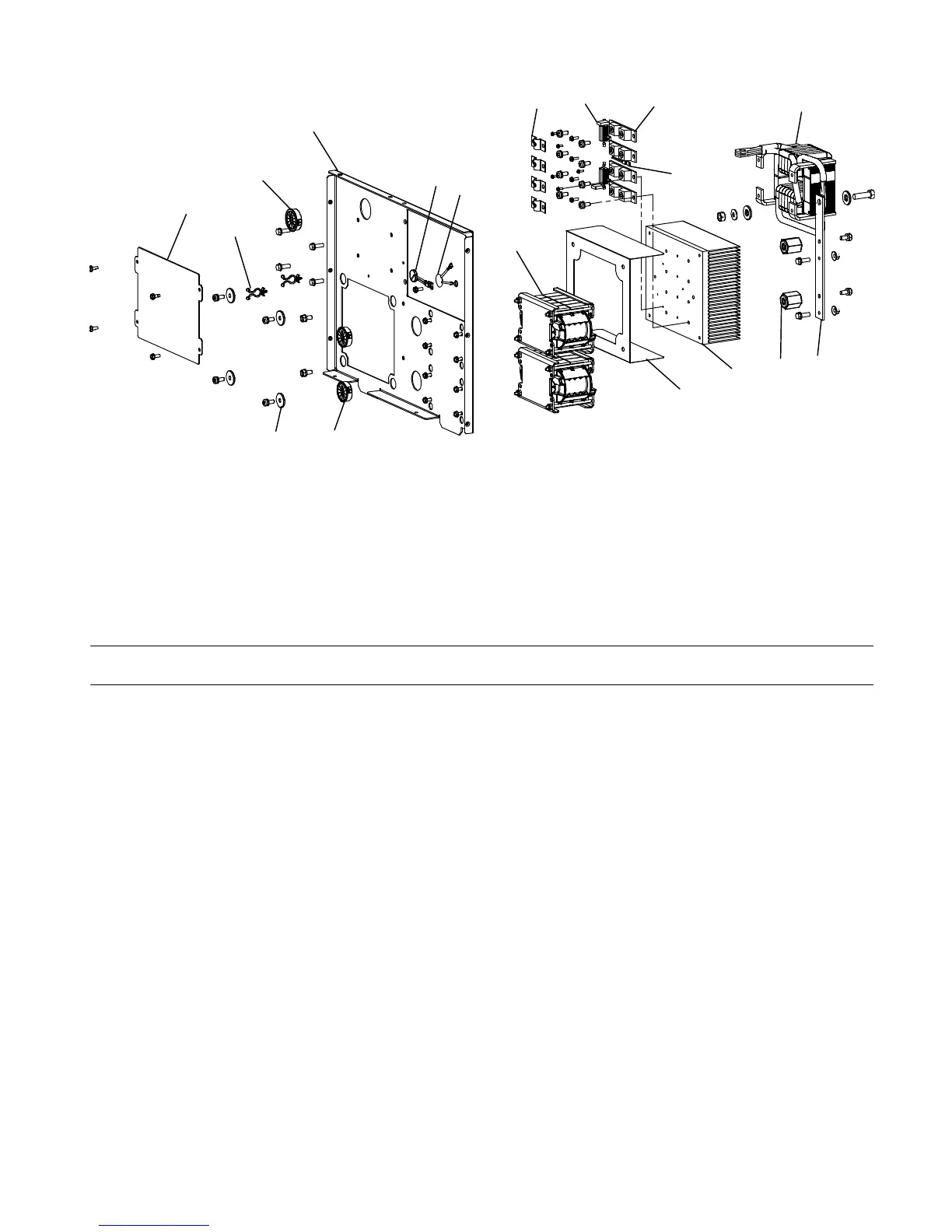

Figure 11-2. Right-Hand Windtunnel w/Components
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-2. Right-Hand Windtunnel
w/Components (Figure 11-1, Item 12)
Quantity
350
Model
500
Model
1 265243 Windtunnel, Rh 1 1.. .............. .. ......................................... .....
2 T1-T2 252442 Xfmr, Hf Litz (500) 0 2.. .... ... .. ....................................... .....
2 T1 267776 Xfmr, Hf Litz (350) 1 0.. ..... ..... .. ....................................... .....
263299 Heat Sink Assy, Output Diode (500)(Includes Items 3-7) 0 1................... .. ...... .....
267924 Heat Sink Assy, Output Diode (350)(Includes Items 3-7) 1 0................... .. ...... .....
3 213029 Thermistor, Ntc 30k Ohm @ 25 Deg C 26.00in Lead 1 1.. .............. .... ..... .....
4 199840 Bus Bar, Diode 2 4.. .............. .... ....................................... .....
5 252446 Heat Sink, Diode 1 1.. .............. .... ...................................... .....
6 233052 Resistor/Capacitor, 1 2.. .............. .... .................................... .....
7D1−D4 201531 Kit, Diode Power Module 2 4.. ... ... .... ............................... .....
8 196355 Insulator, Screw 4 4.. .............. .. ........................................ .....
9 025248 Stand-off, Insul .250-20 X 1.250 Lg X .437 Thd 2 2.. .............. .. ............. .....
10 236727 Insulator, Heat Sink 1 1.. .............. .. ..................................... .....
11 179276 Bushing, Snap-in Nyl 1.000 Id X 1.375 Mtg Hole Cent 2 2.. .............. .. ....... .....
12 253547 Bus Bar, Xfmr Current 1 1.. .............. .. ................................... .....
13 245520 Bushing, Snap-in Nyl 1.062 Id X 1.500 Mtg Hole Cent 1 1.. .............. .. ........ .....
14 L5 242158 Inductor, Output 1 1.. ..... ..... .. ......................................... .....
15 223343 Clip, Wire Stdf .40-.50 Bndl .156hole .031-.078thk 2 2.. .............. .. ........... .....
16 267438 Plate, Blank Aux 1 1.. .............. .. ........................................ .....
17 C3 138695 Capacitor, Cer Disc .01 uF 1000 Vdc w/Terms 1 1.. ..... ..... .. ............... .....
18 VR1 269178 Varistor, w/Terminals 1 1.. .... .... .. .................................... .....
C5 265285 Capacitor,Polyp Met Film 30. Uf 550 Vdc 1 0.......... ..... .. ................... .....
057360 Blank, Snap-In Nyl 1.375 Mtg Hole Black 1 0................... .. ................... .....
267870 Plate, Mtg Capacitor 1 0................... .. ..................................... .....
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
