Miller ENPAK - Hydraulic Pressure Flow Curves (Models with Hydraulic Power Source)

OM-261050 Page 18

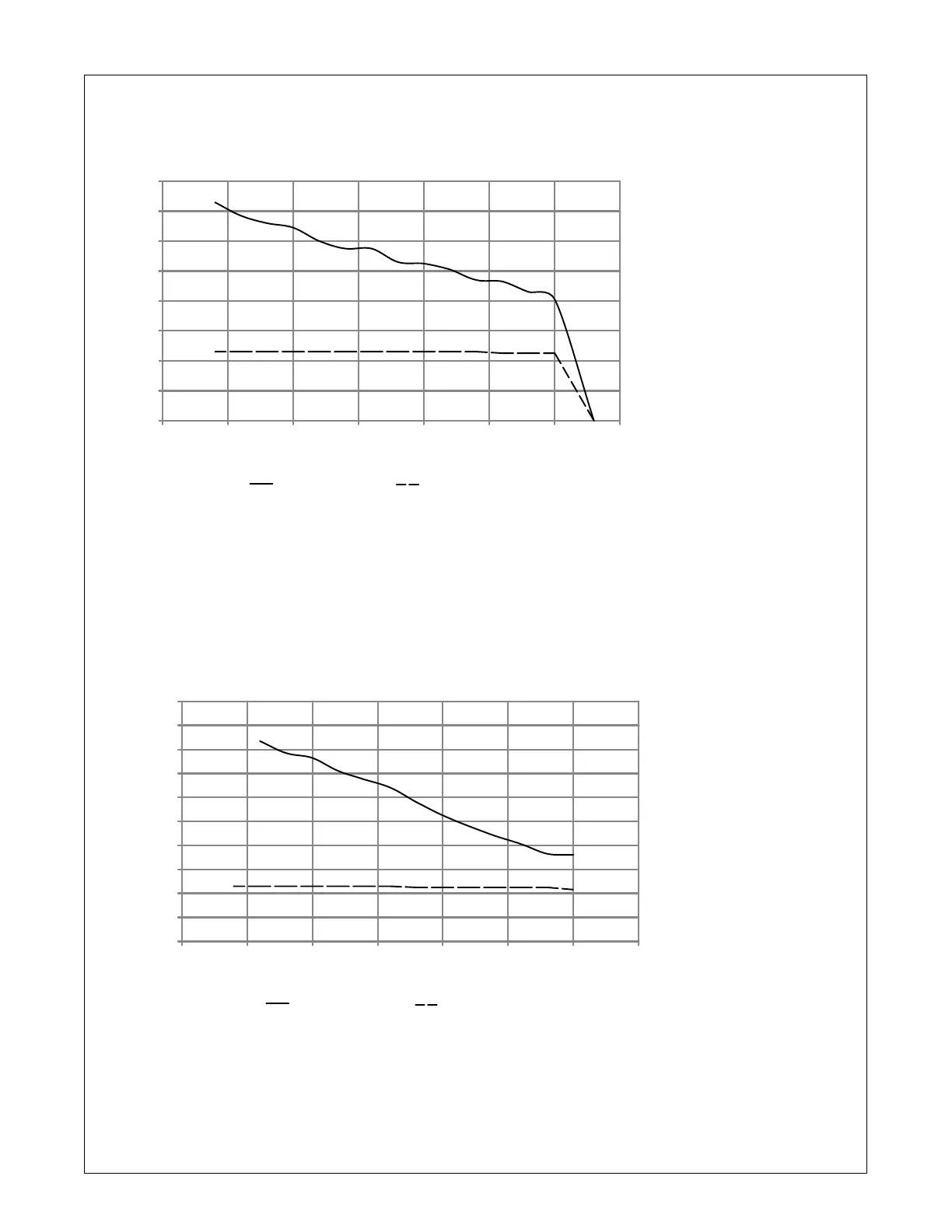

4-11. Hydraulic Pressure Flow Curves (Models With Hydraulic Power Source)
261 044-A
0
2
4
6
8
10
12
14
16
0 500 1000 1500 2000 2500 3000 3500
Flow (gpm)
Pressure (psi)
Open Center Hydraulic Pressure Flow Curve
Automatic Mode Manual Mode
0
2
4
6
8
10
12
14
16
18
20
0 500 1000 1500 2000 2500 3000 3500
Flow (gpm)
Pressure (psi)
Closed Center Hydraulic PressureFlow Curve
Automatic Mode Manual Mode
 Curves are typical. Output will
vary depending on system
pressure losses to load sense
pressure location.
Fluid: ISO 32 Hydraulic Oil
Fluid Temperature: 120° F (49° C)
Load Sense Pressure:
Closed Center − 400 PSID
(27.6 bar)
Open Center − 200 PSID (13.8
bar)
