OM-261050 Page 30
Hose Torque
Suction 160 ft lb (217 N⋅m)
Case Drain 60 ft lb (81 N⋅m)
Pressure Line 80 ft lb (108 N⋅m)
Load Sense 12 ft lb (16 N⋅m)

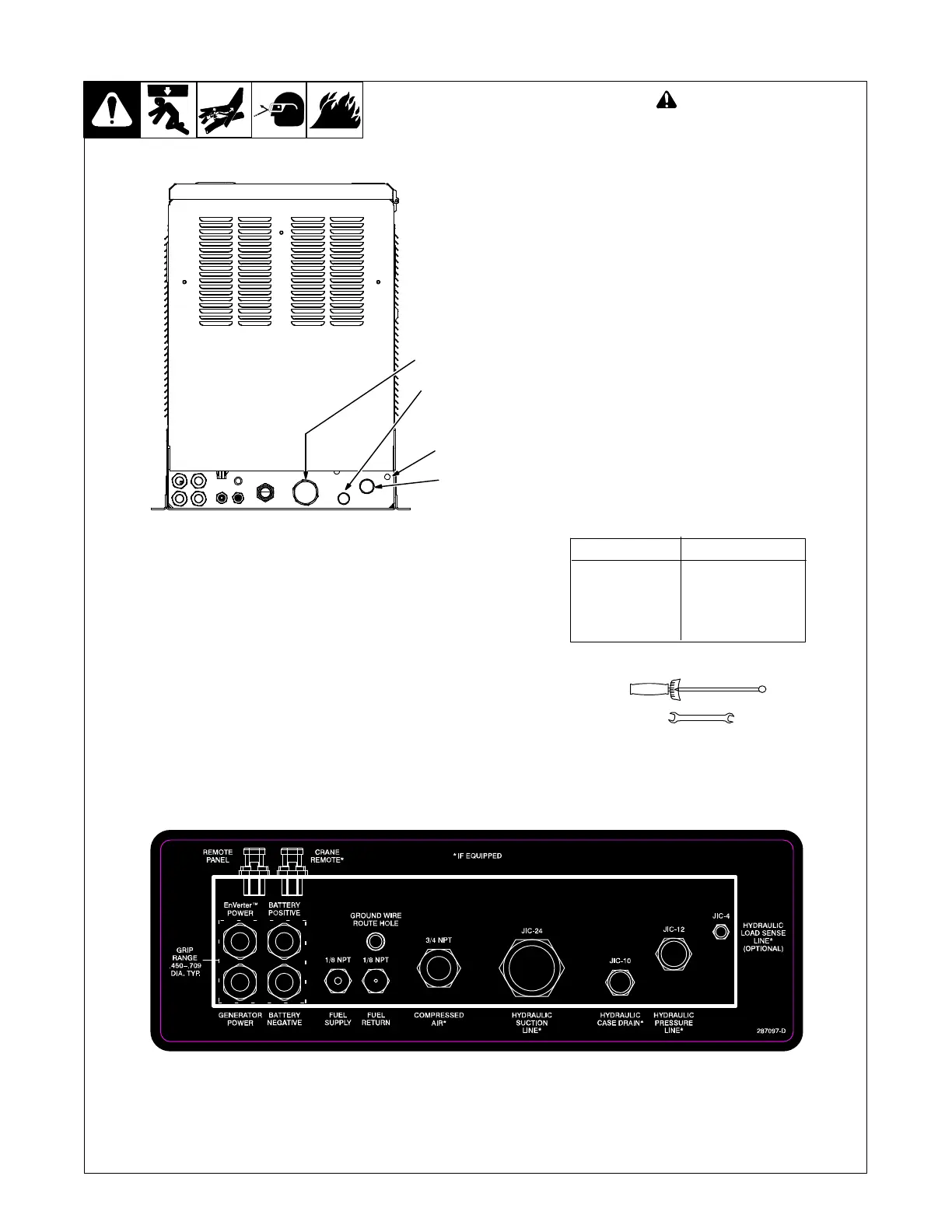

7-2. Hydraulic Hose Connections
265 802-A / 287 097
! Hydraulic fluid is flammable.
Do not work on hydraulics
near sparks or flames; do not
smoke near hydraulic fluid.
Route all hoses away from
hot, sharp or moving parts.
Check all connections and
hoses for damage, leaks, and
wear.
1 Suction Line Connection
2 Case Drain Connection
3 Pressure Line Connection
4 Load Sense Line Connection
(If Applicable)
Connect hoses and torque connec-
tions.
Tools Needed:
2-1/4. 1-1/4. 1, 9/16 in.
(57, 31, 25, 14 mm)
1
2
3
4
To Next Page
