6-2. Installing Exhaust Pipe
805 445-A
! Engine backfire can cause se-
vere burns or other injuries.
Keep away from exhaust out-
let.
! Do not point exhaust pipe to-
ward any compressed gas
tank.
Point exhaust pipe in desired di-
rection but always away from di-
rection of travel.

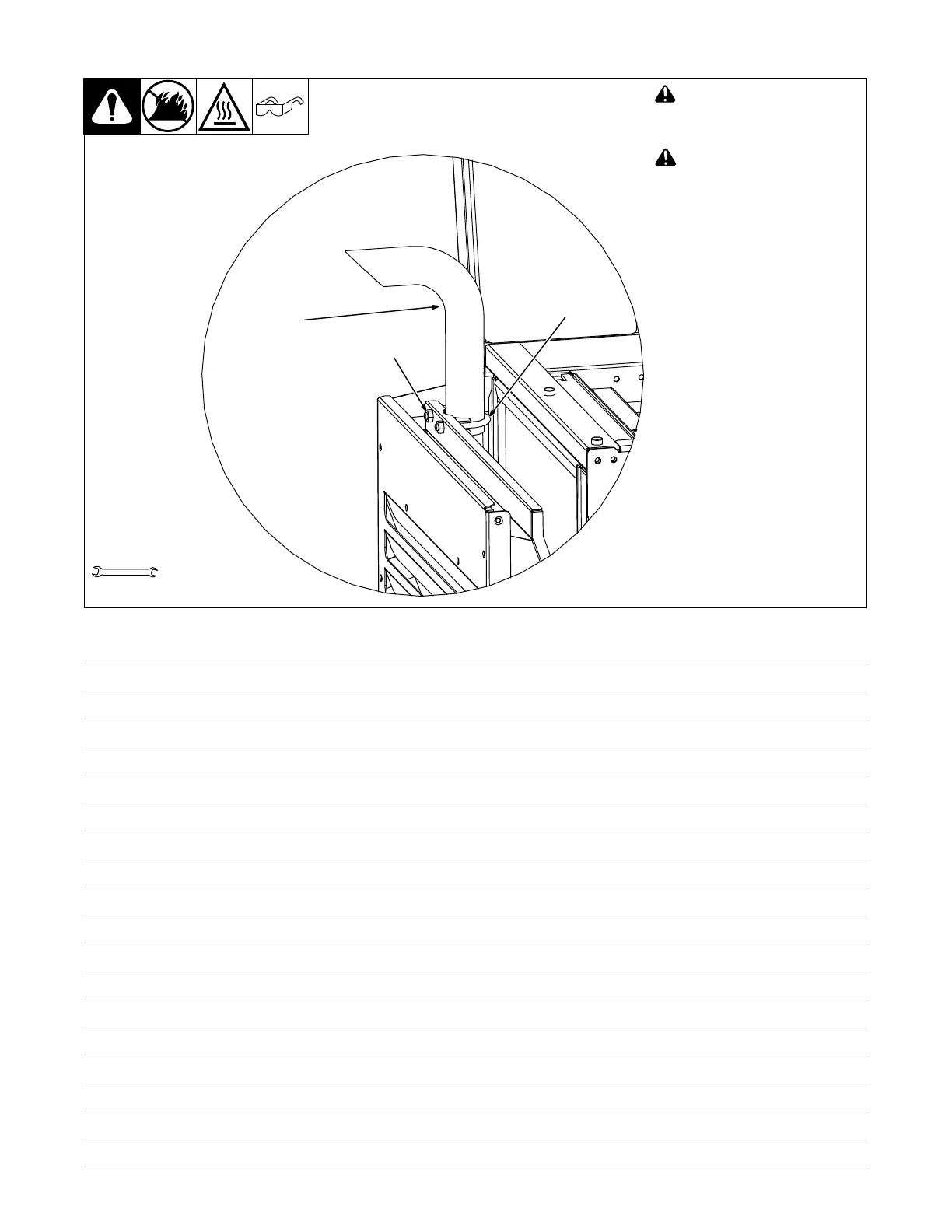

1 Exhaust Pipe
2 Clamp
3 Nut
Exhaust pipe, clamp and hardware
are shipped separately. Install ex-
haust pipe as shown.
Tools Needed:
1/2 in.
1
2
3
