Miller Multimatic 215 - Stick Welding Connections

. A complete Parts List is available at www.MillerWelds.com
OM-272989 Page 22

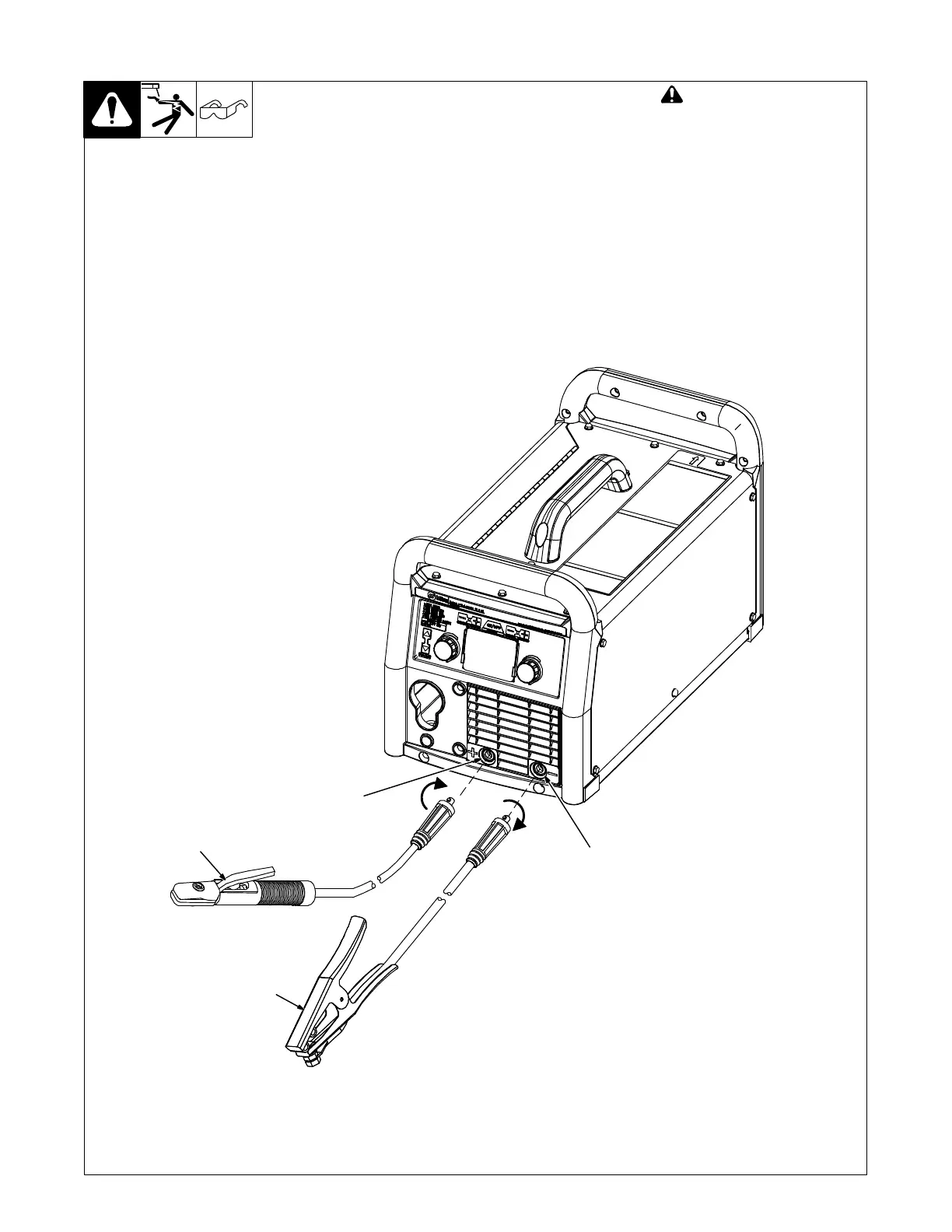

5-7. Stick Welding Connections
Ref. 275166A
! Turn off unit and disconnect
input power before making
connections.
1 Positive Weld Output
Receptacle
2 Negative Weld Output
Receptacle
3 Stick Electrode Holder And
Cable
4 Work Clamp And Cable
Connect stick electrode holder
cable to the positive weld output
receptacle, and connect work
clamp to negative weld output
receptacle.
Ensure all connections are tight.
4
1
2
3
