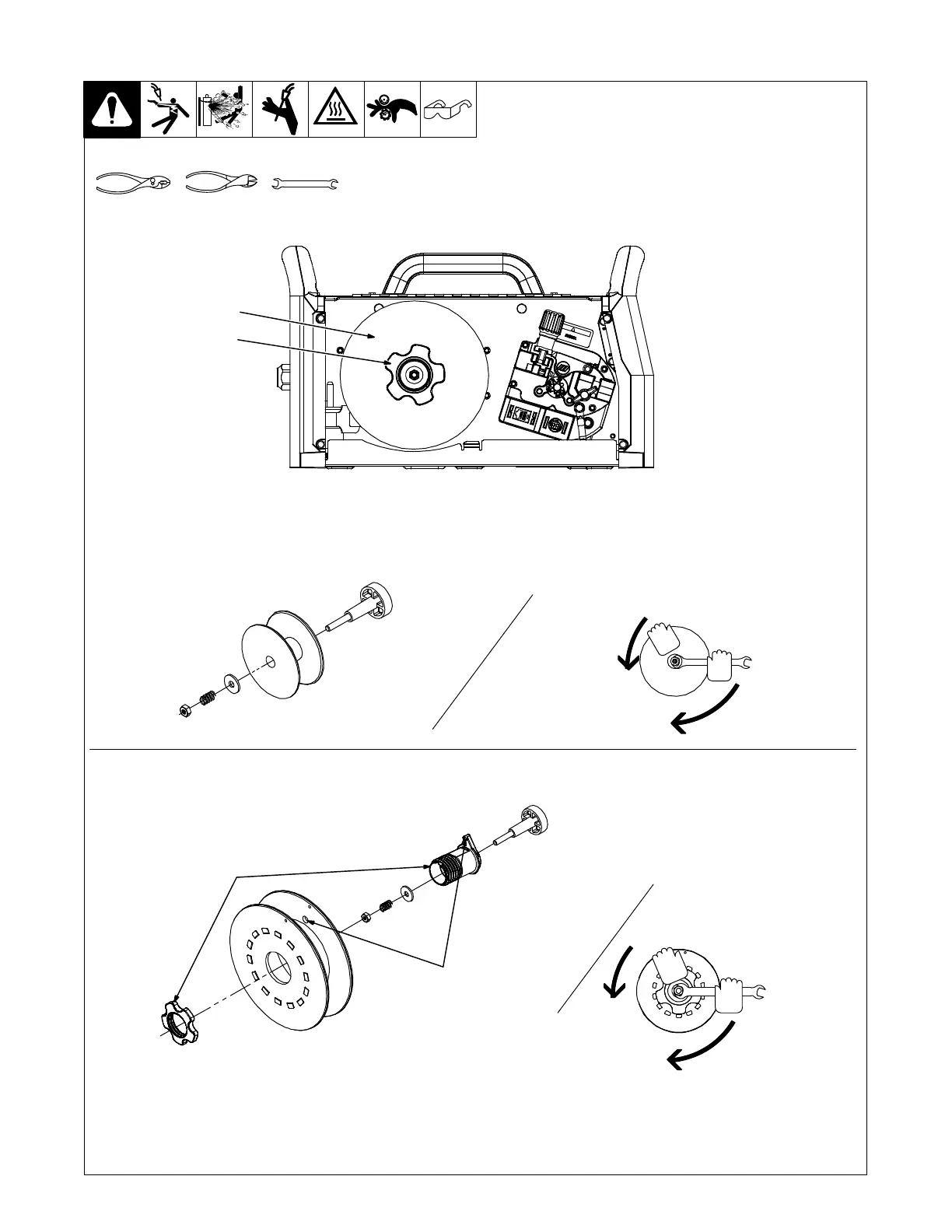

5-13. Installing Wire Spool And Adjusting Hub Tension
1 Wire Spool
2 Retaining Nut − For 8 in.
(203 mm) Spool Only
When a slight force is needed
to turn spool, tension is set.
1/2 in.
Tools Needed:
Ref. 275174A / 803 012 / 803 013 -B / Ref. 802 444-C
Installing 8 in. (203 mm) Wire Spool
Installing 4 in. (102 mm) Wire Spool
2
1
When a slight force is
needed to turn spool, ten-
sion is set.
Align locking hole in
spool with locking
pin on spool hub.
Adapter and
retaining ring
