SECTION 6 − OPERATION

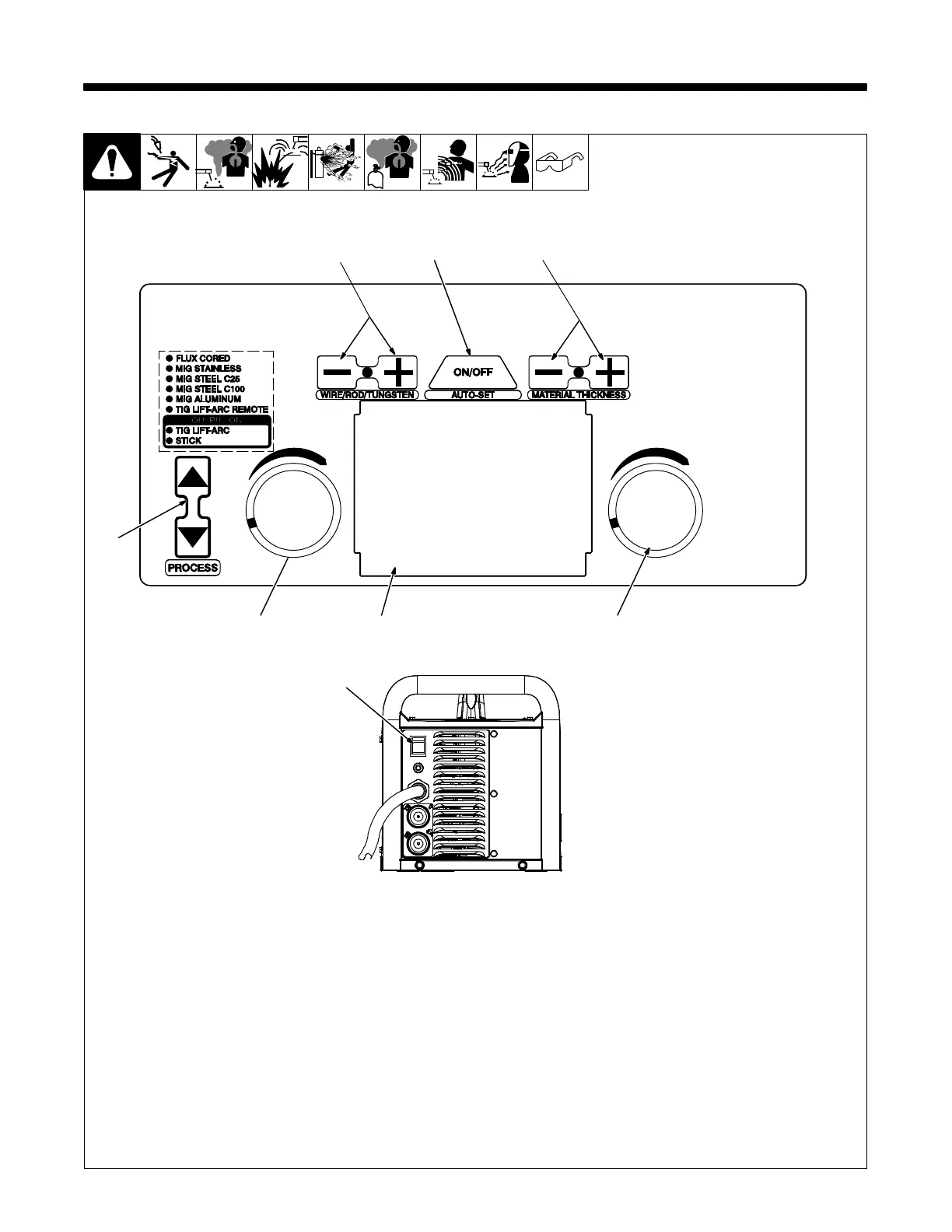

6-1. Controls
1 Process Select Button
Press up and down buttons to select de-
sired welding process.
2 Auto-Set Button
Press button to turn Auto-Set On or Off.
3 Wire/Rod/Tungsten Buttons
Press the Plus (+) or Minus (−) button to
select the size of wire, rod, or tungsten for
the selected process.
. When MIG Aluminum process is se-
lected, Wire/Rod/Tungsten buttons are
used to select type of spool gun being
used.
4 Material Thickness Buttons
Press the Plus (+) or Minus (−) button to
select material thickness for the selected
process.
5 Display
6 Adjustment Knobs
7 Power Switch
Use switch to turn unit On or Off.
Ref. 271491A / 275178A
6
1
23
4
5
7
Rear View
6
