. A complete Parts List is available at www.MillerWelds.com
OM-272989 Page 25

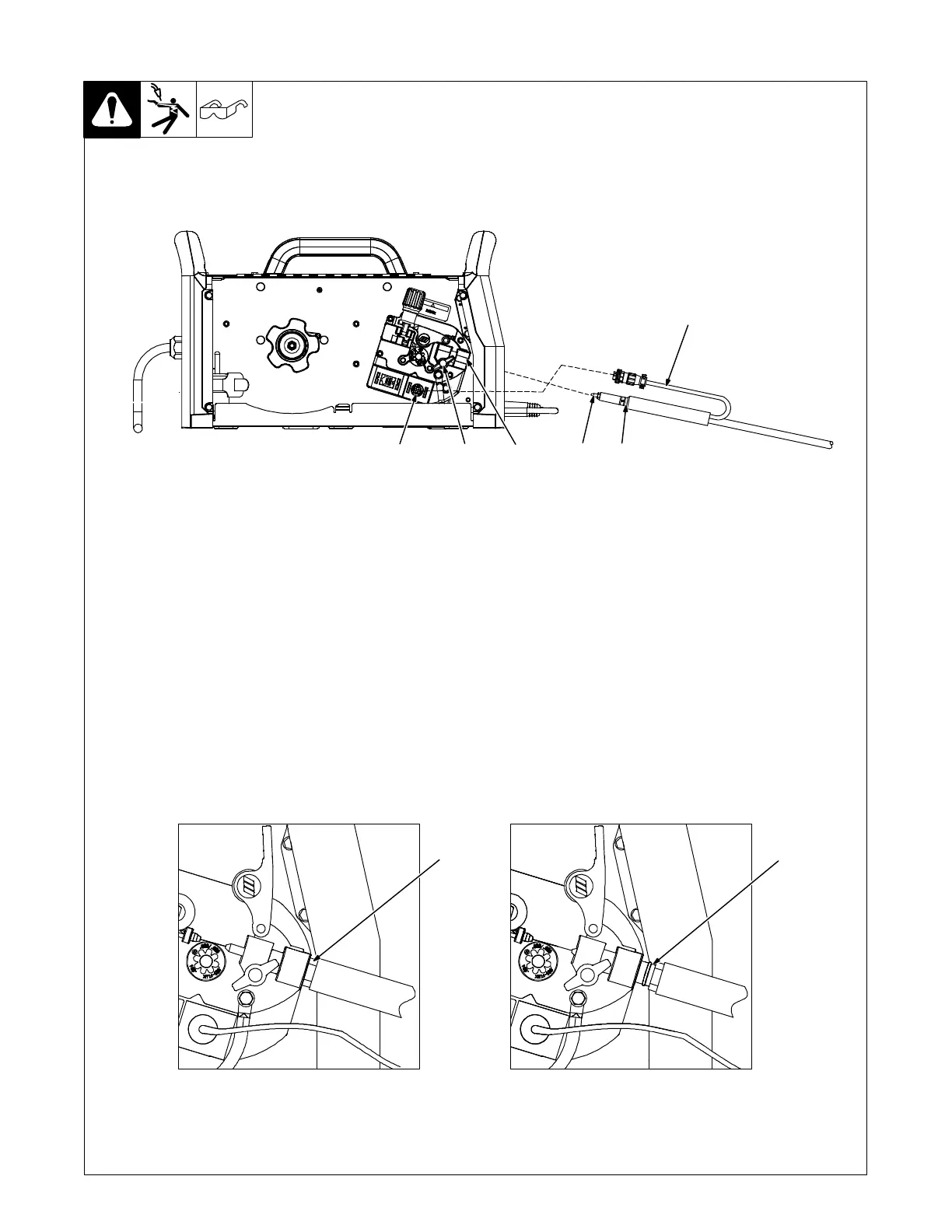

5-11. MIG Gun Connection Inside Unit
Ref. 275167A
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Gun End
Loosen knob. Insert end of gun through
opening in front panel until gun end
bottoms against gun block. Tighten
knob.
5 Trigger Control Cable
6 Four Pin Trigger Control Cable
Receptacle
Route trigger control cable through MIG
gun hole.
Connect plug on end of cable to four pin
receptacle inside unit.
Correct Incorrect
. Be sure that gun end is tight against drive assembly.
44
Ref. 267807A
3
6
5
214
