OM-4422 Page 67
 Hardware is common and not
available unless listed.
Wirng harnesses are listed at
the end of parts section.
803 689-B
1
2
3
4
5
6
7
8
9
10
13
12
11
14

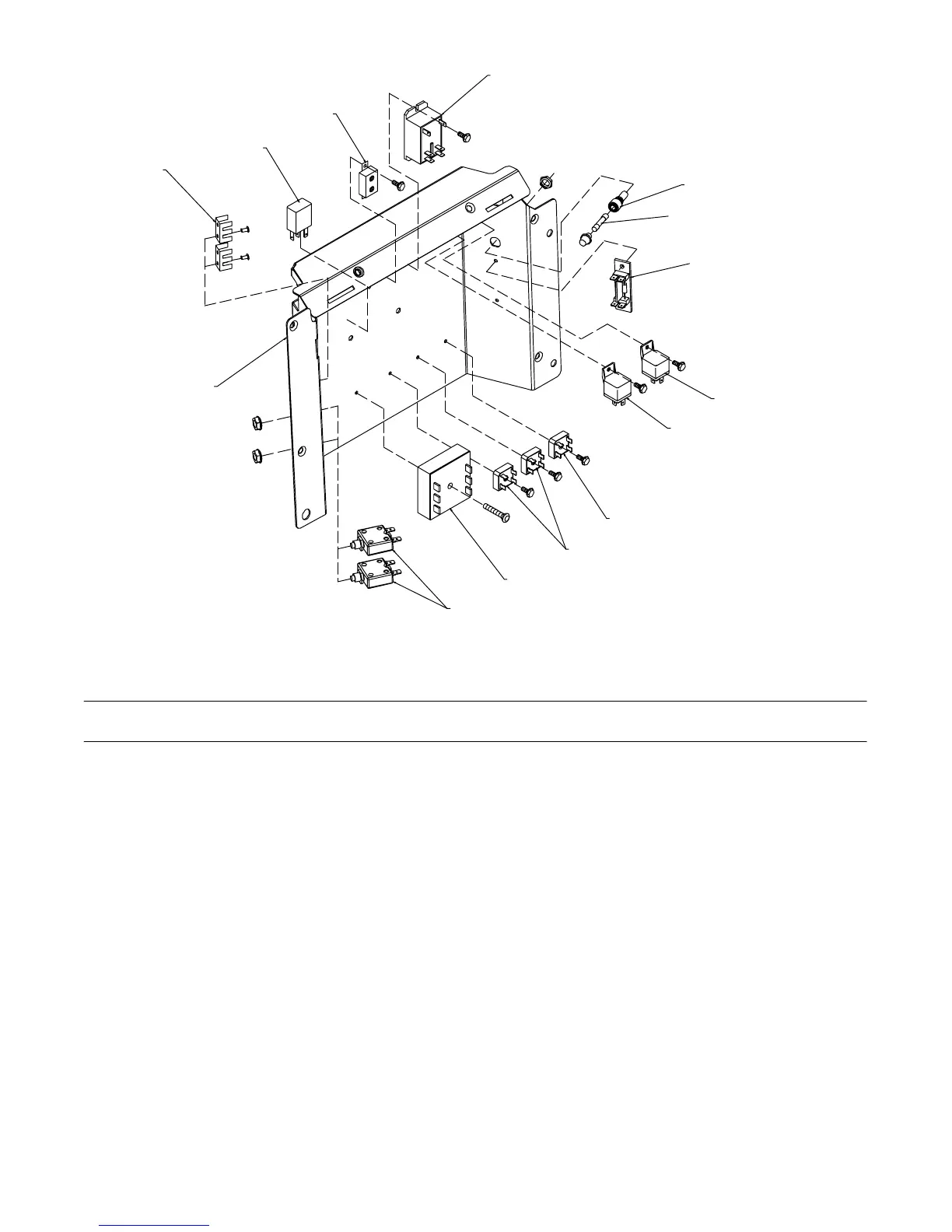

Figure 12-3. Control Panel
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 12-3. Control Panel (Figure 12-1 Item 1)
Quantity
1 220981 Bracket, Mtg Components 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 129524 Term, Frict 250x032 Uninsul Male .130 Stud Mtg 3pr 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 CR2 214876 Relay, Encl 6vdc Spst 35a/14vdc 5 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 CB1 190374 Circuit Breaker, Auto Reset 12vdc 40 Amp 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CR1 199999 Relay, Encl 12vdc Dpst−no 30a 6pin Flange 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 046432 Holder, Fuse Mintr .250 X 1.250 Panel Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 F1 085874 Fuse, Mintr Cer Slo−blo 10. Amp 250 Volt 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 R4 214863 Resistor Board 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 CR4 ♦090104 Relay, Encl 12vdc Spst 30a/15vdc 5pin Flange Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 CR3 197325 Relay, Encl 12vdc Spst 70a 4pin Flange Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 SR3 ♦035704 Rectifier, Integ Bridge 40. Amp 800v 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 SR1, SR2 035704 Rectifier, Integ Bridge 40. Amp 800v 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 PC5 ♦214761 Module, Pull To Idle 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 CB2, CB3 083432 Circuit Breaker, Man Reset 1p 10a 250vac Frict 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
♦Optional
+ When ordering a component originally displaying a precautionary label, the label should also be ordered. Order
label individually or as part of Label Kit 215 327
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
