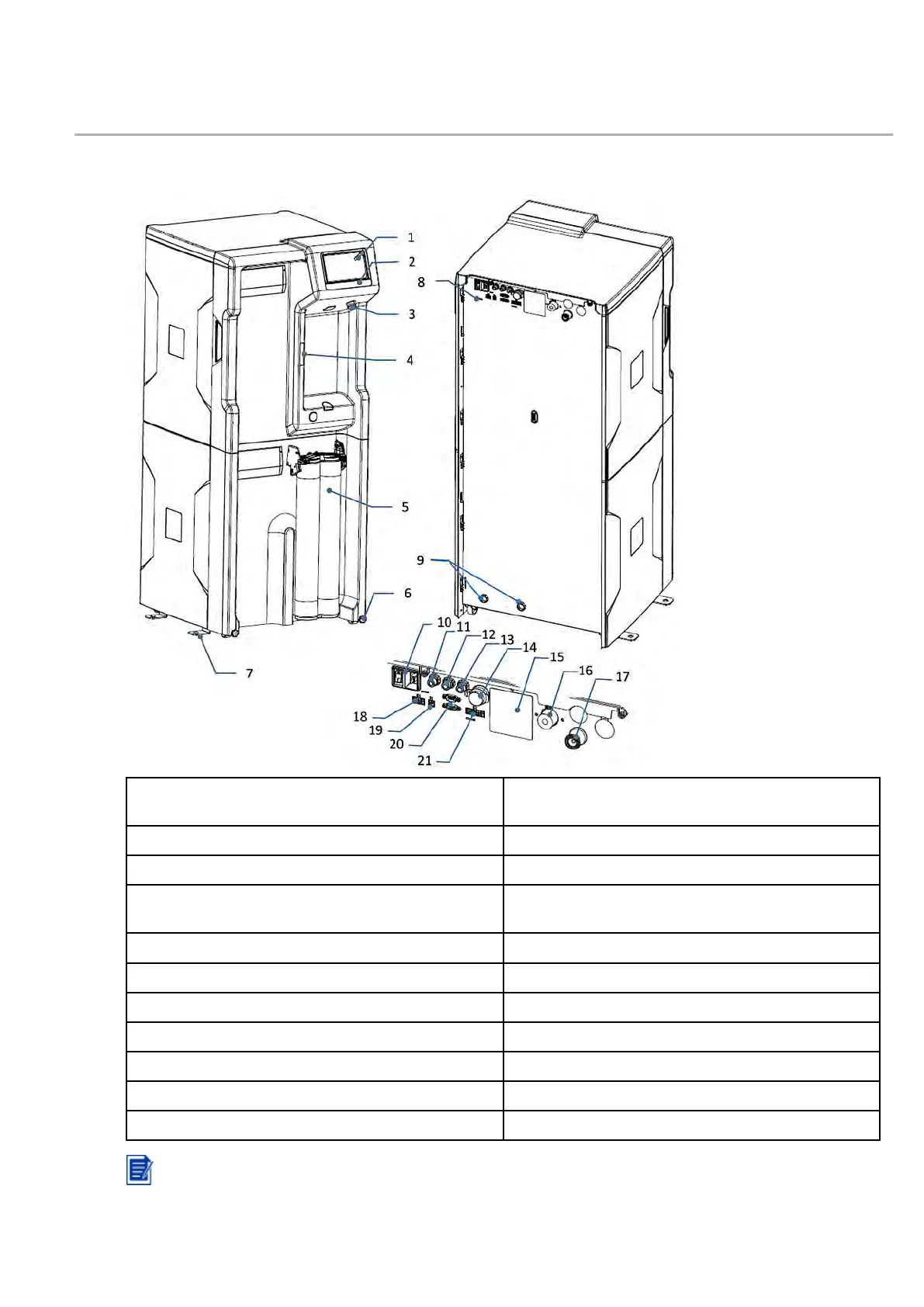

System Overview
System, components and connections.
1. Display 12. DRP port (Data report: 2 Alarm output and 2
measure output)
2. System name 13. External solenoid valve port
3. USB port 14. Ethernet port
4. Matrix code (containing system serial number and
type)
15. System type identification label
5. Progard
®
pack(s) 16. Inlet connector (3/4" BSP)
6. Wheel locking nut 17. Outlet connector (3/4" Tri-Clamp)
7. Securing bracket 18. External pretreatment port
8. Water system backpanel 19. Leak detector port
9. Waste outlet 20. Tank monitoring port (Tank level, overflow)
10. Power Entry (Mains) & switch 21. Device control port (ASM, UV lamp)
11. C2 Out port (Distribution interfaces)
Note: The system covers can be cleaned or disinfected by using alcohol (Ethanol
and Isopropanol).
System Overview | 15
