How to Use the Distribution Schedule
Procedure
The Distribution Schedule application from the Configuration workspace allow you to
program the distribution loop to fit your needs.
Depending on your production or system usage, you can affect a distribution behavior to
each 1/2 hour of each day of a the week. The three distribution possible behavior are:
Auto-recirculation, Recirculation and Tank Flush.
The distribution schedule can be configured, within 30 minute slots, to be in Auto-
recirculation, Recirculation or Tank Flush.

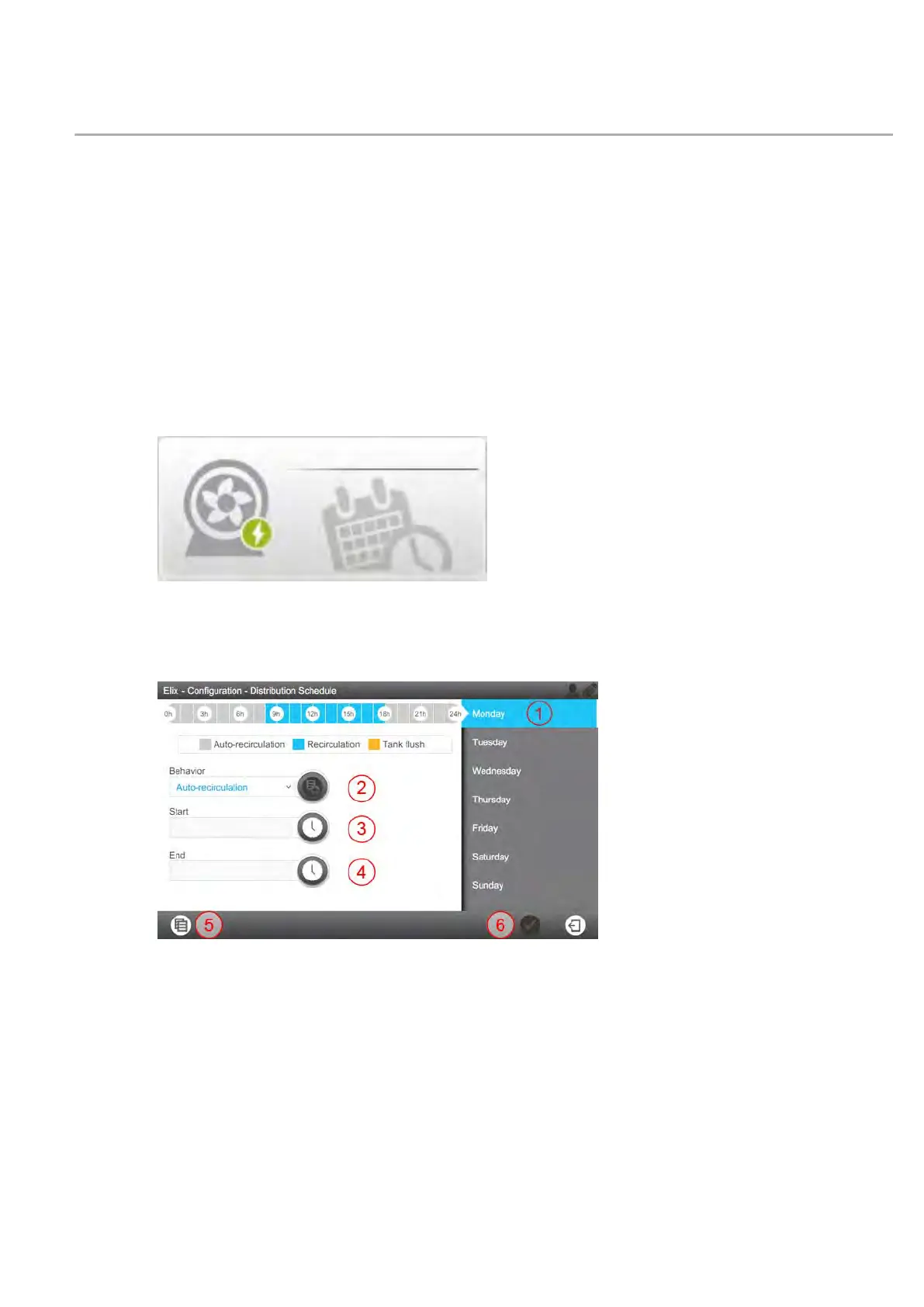

1. From the Configuration workspace, open the Distribution Schedule application:
2. The Distribution Schedule application opens (the bullet points in red will guide you
throught the following steps):
a) Select one day of the week from the right side screen area (1).
b) Choose the desired Distribution Schedule "Behavior" using a drop down list
c) Program a start time to this behavior from field (3).
d) Then program a end time (4) to this behavior.
e)
Each behavior has a start and a stop time which you can choose. After choosing
these items, press the ‘+’ button (2) to confirm your choices. You can see the result
of this action at the top of the screen (0h .. 24h).
f) When at least one slot of time has been completed, the save function (6) becomes
white and allow you to save the scheduled slot of time.
How to Use the Distribution Schedule | 47
