Note:
Switch on power immediately after battery activation.
Switch system to ON for a few seconds. This will
initialise the microprocessor and avoid discharging
the battery.
3. Water Connection
In order to protect the Milli-Q Plus Unit from any gross particulate
matter in the feed water line, a 1/2" female to 1/4" female reducing
bushing, which incorporates a stainless steel filter screen, is
supplied with the system.
This fitting should be used to connect the system to the feed water
line.
The fitting should be periodically dismantled and the filter
screen should be rinsed in running water to remove entrapped
particulate material.

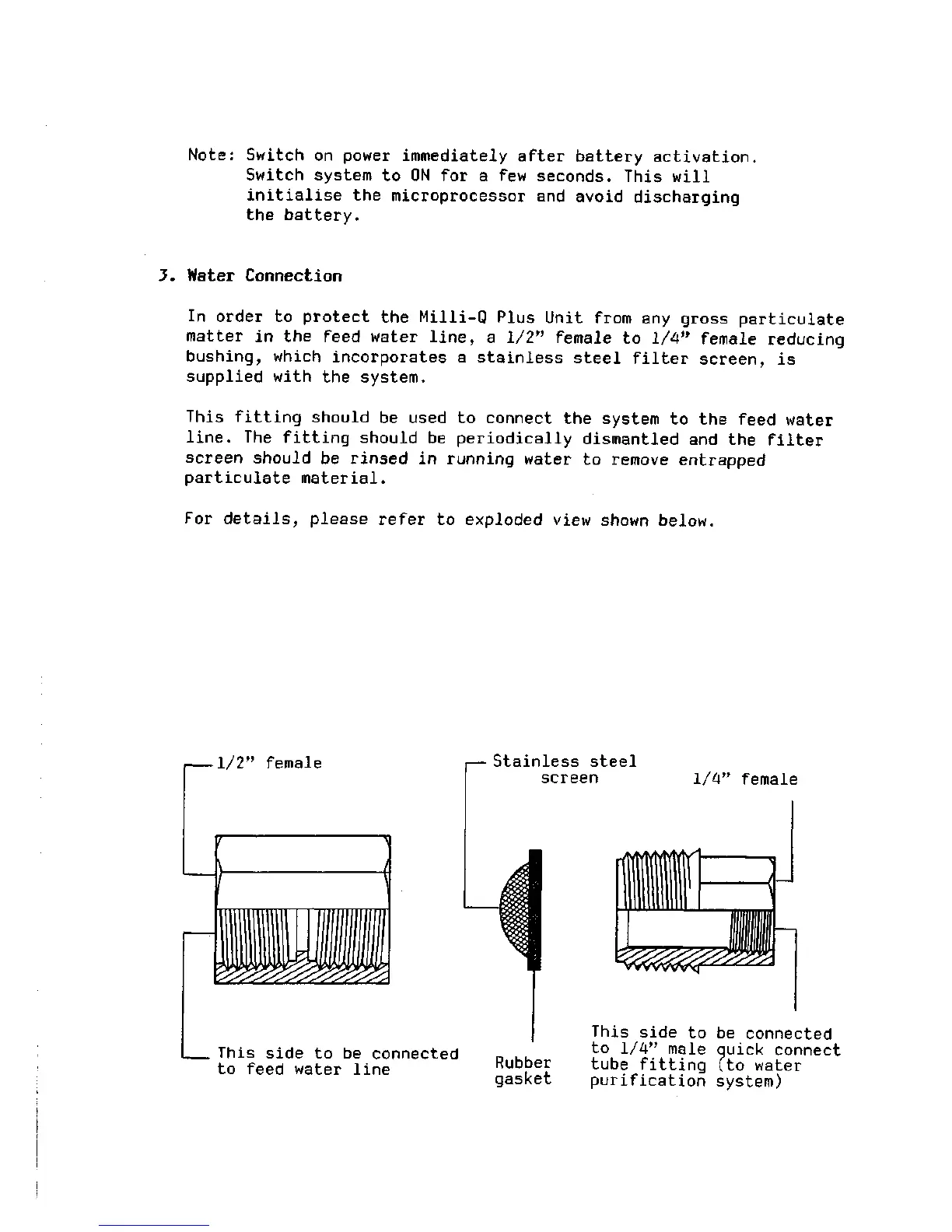

For details, please refer to exploded view shown below.
, 1/2" female
Stainless steel
screen
1/4" female
This side to be connected
to feed water line
Rubber
gasket
This side to be connected
to 1/4" male quick connect
tube fitting (to water
purification system)
