A. Introduction

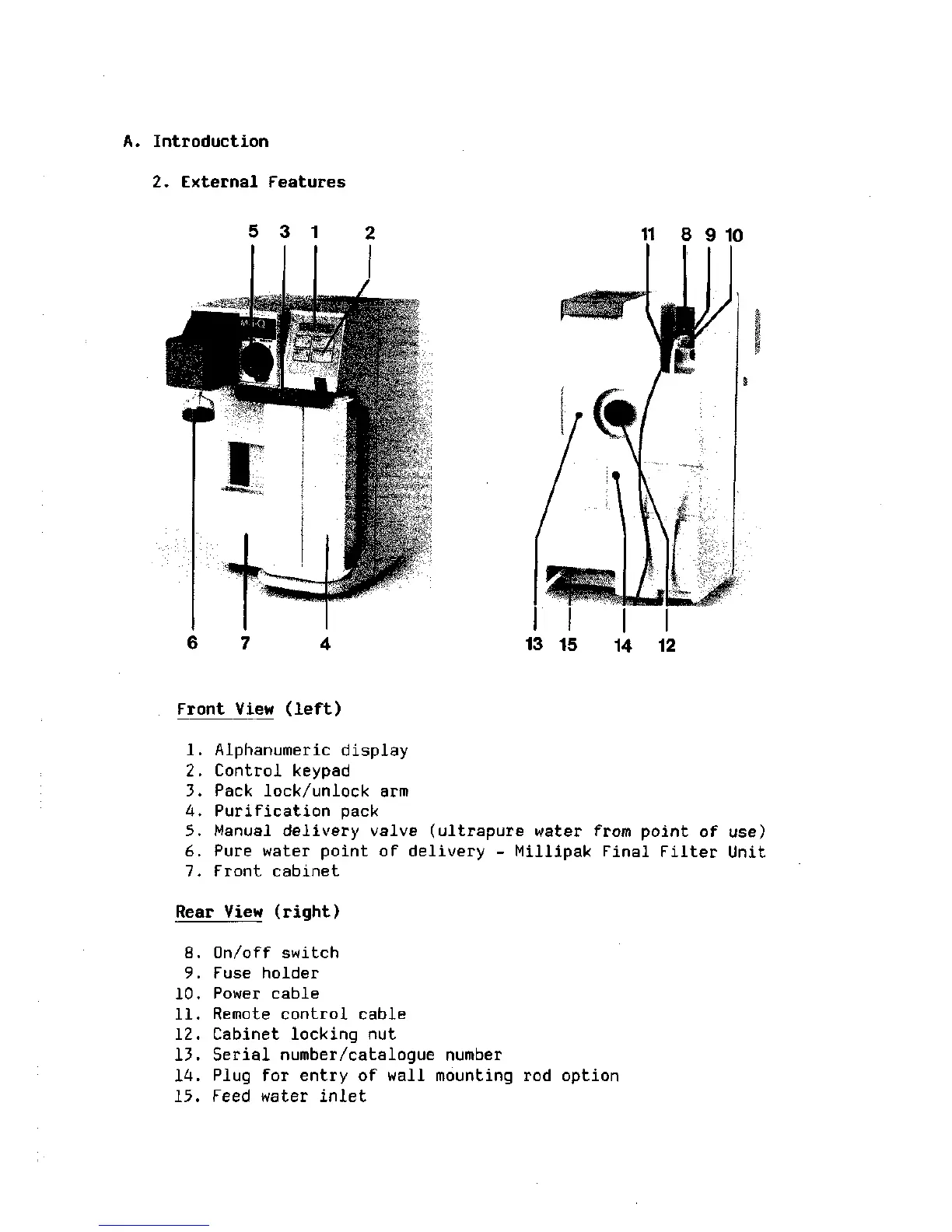

2. External Features
5 3 1
11 8 9 10
6 7
13 15 14 12
Front View (left)
1. Alphanumeric display
2. Control keypad
3. Pack lock/unlock arm
4. Purification pack
5. Manual delivery valve (ultrapure water from point of use)
6. Pure water point of delivery - Millipak Final Filter Unit
7. Front cabinet
Rear View (right)
8. On/off switch
9. Fuse holder
10. Power cable
11. Remote control cable
12. Cabinet locking nut
13. Serial number/catalogue number
14. Plug for entry of wall mounting rod option
15. Feed water inlet
