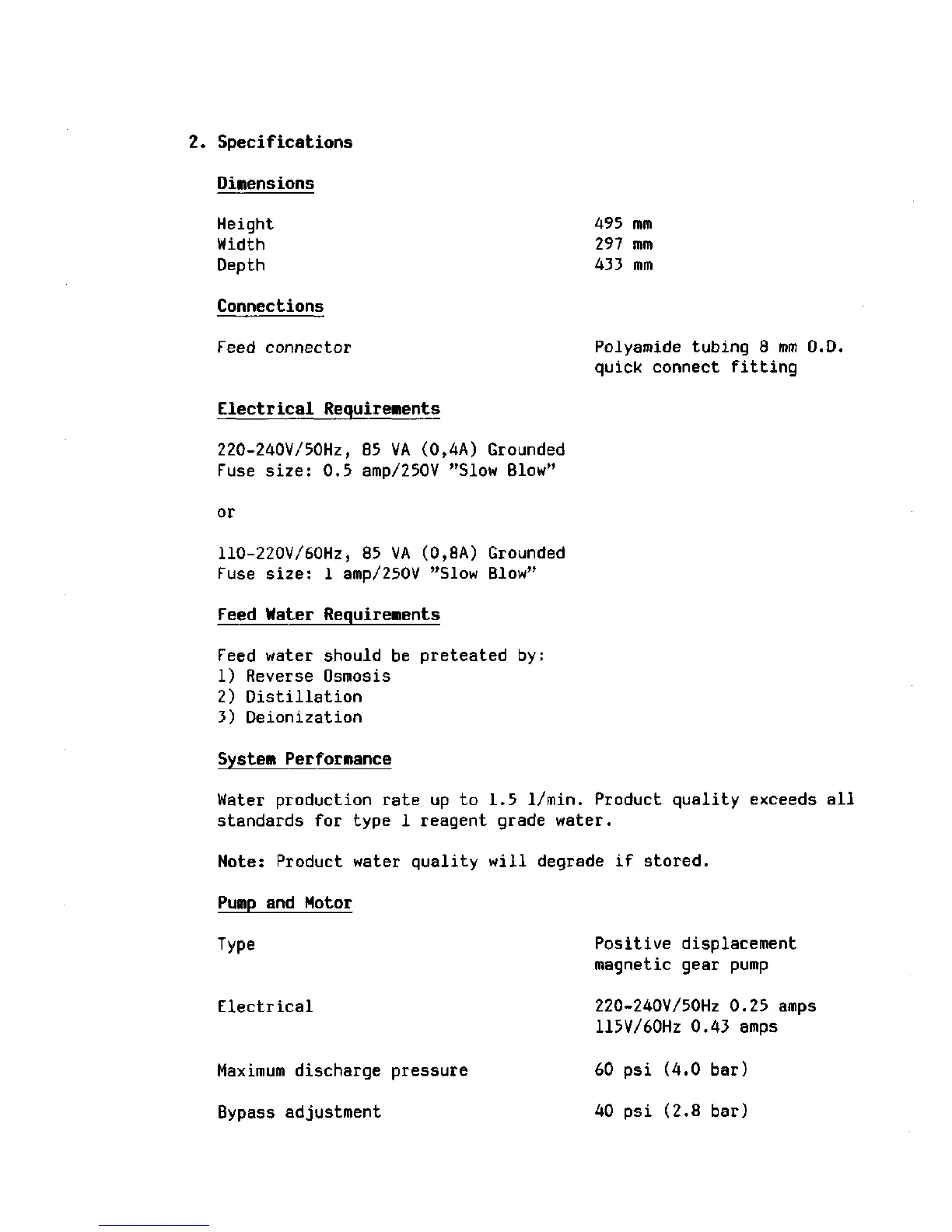

2.
Specifications
Dimensions
Height 495 mm
Width 297 mm
Depth 433 mm
Connections
Feed connector Polyamide tubing 8 mm O.D.
quick connect fitting
Electrical Requirements
220-240V/50Hz,
85 VA (0,4A) Grounded
Fuse size: 0.5 amp/250V "Slow Blow"
or
110-220V/60Hz,
85 VA (0,8A) Grounded
Fuse size: 1 amp/250V "Slow Blow"
Feed Water Requirements
Feed water should be preteated by:
1) Reverse Osmosis
2) Distillation
3) Deionization
System Performance
Water production rate up to 1.5 1/min. Product quality exceeds all
standards for type 1 reagent grade water.
Note:
Product water quality will degrade if stored.
Pump and Motor
Type Positive displacement
magnetic gear pump
Electrical 220-240V/50Hz 0.25 amps
115V/60Hz 0.43 amps
Maximum discharge pressure 60 psi (4.0 bar)
Bypass adjustment 40 psi (2.8 bar)
