Millipore Milli-Q Plus - Schematic; Dimensions

A. Introduction

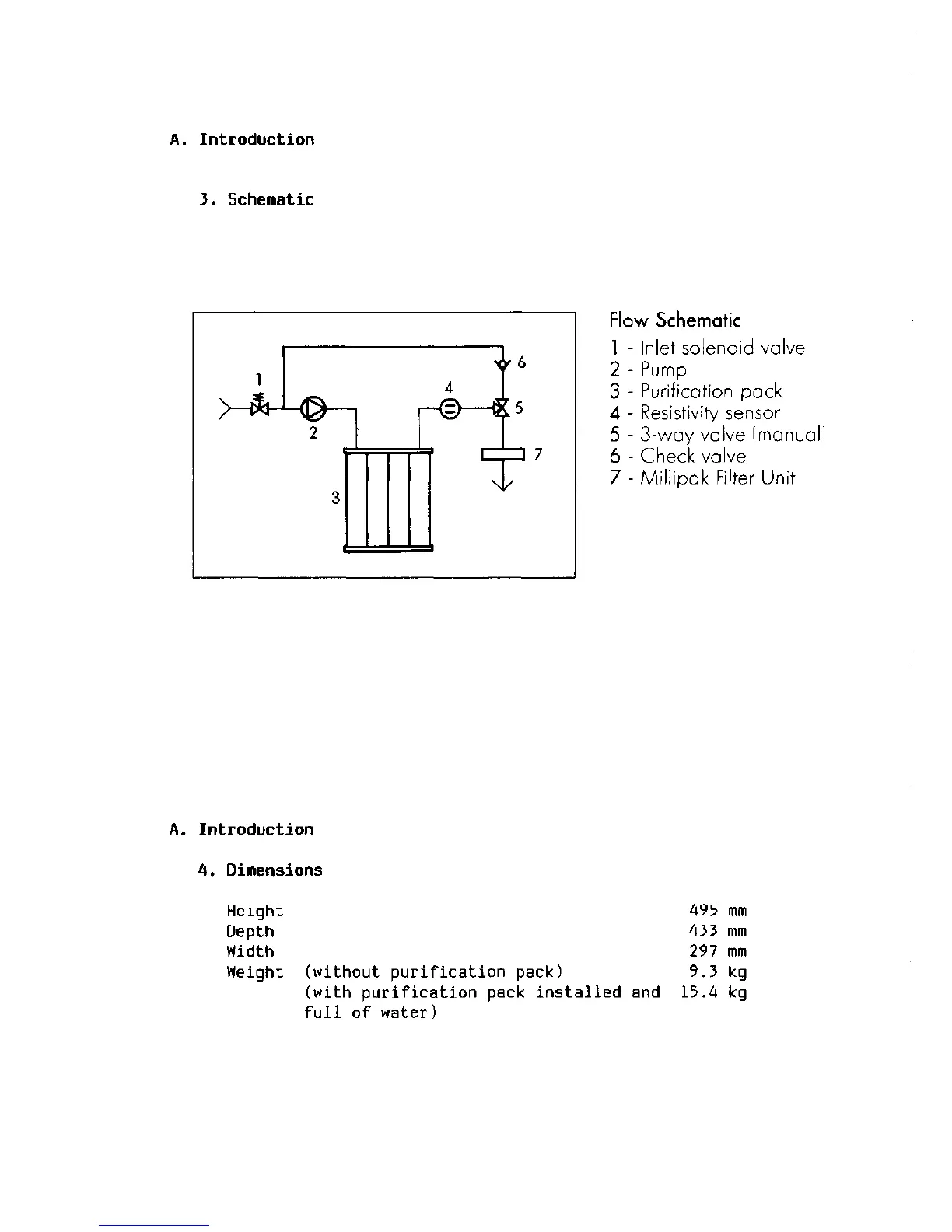

3. Schematic
Flow Schematic
1 - Inlet solenoid valve
2 - Pump
3 - Purification pack
4 - Resistivity sensor
5 - 3-way valve (manual)
6 - Check valve
7 - Millipak Filter Unit
A. Introduction
4. Dimensions
Height 495 mm
Depth 433 mm
Width 297 mm
Weight (without purification pack) 9.3 kg
(with purification pack installed and 15.4 kg
full of water)
