• Remove the black check valve with the
metal tool provided in the gasket kit

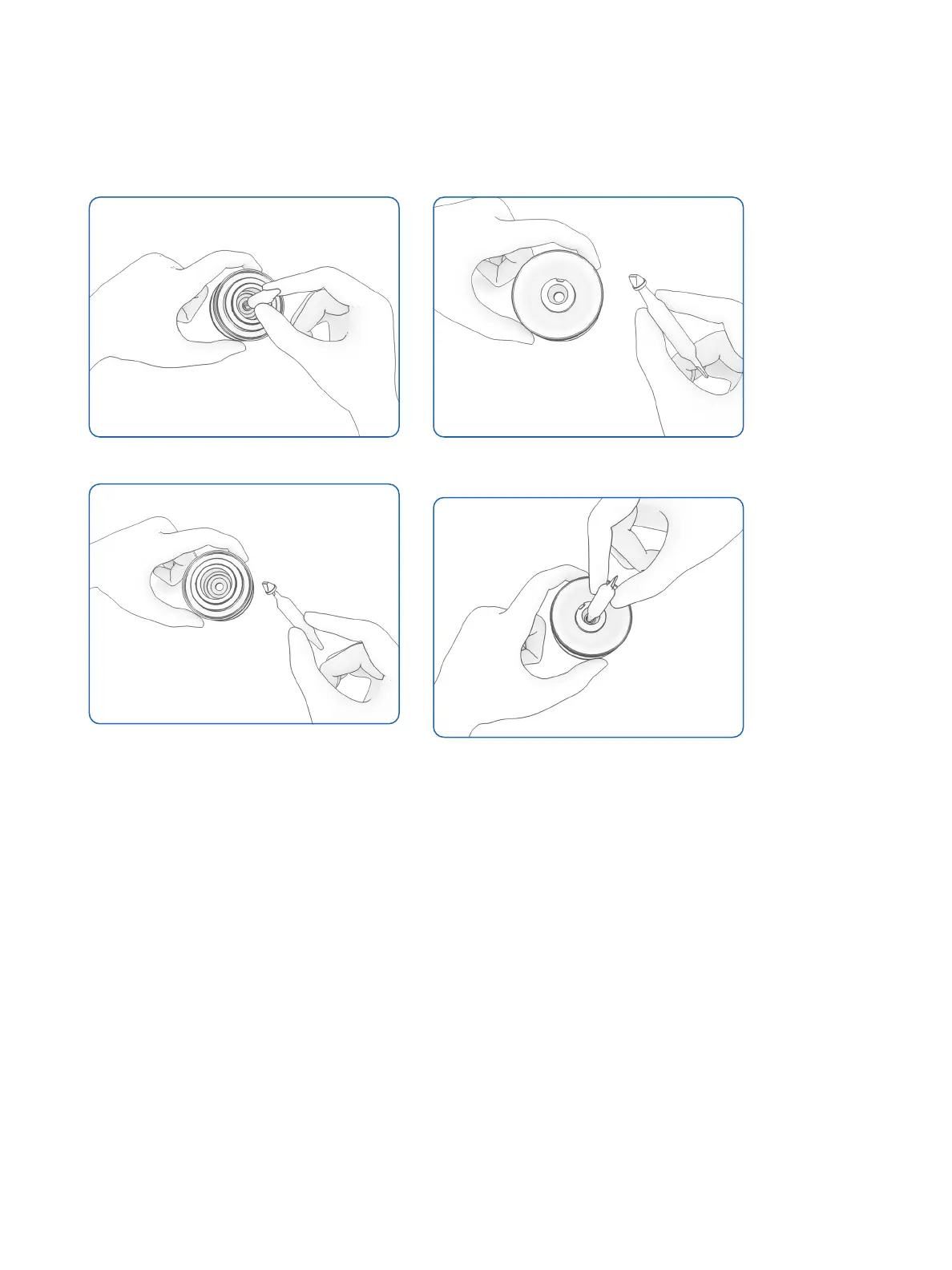

Figure 38: check valve removal with tool — part 1
Figure 39: check valve removal with tool — part 2
• Remove the two internal gaskets using
the gasket removal tool
• Clean the stainless-steel pump head
carefully, including the grooves, using a
wipe moistened with one of the surface
sanitizers listed in the cleaning &
maintenance section
• Clean the gaskets and the check valve
carefully using a wipe moistened with the
sanitizer
• Put the gaskets and check valve back in
place using the gasket removal tool
Figure 40: check valve installation with tool —
part 1
Figure 41: check valve installation with tool —
part 2
