4.9 Filtration head
gasket and check
valve (spare parts)
replacement
Materials:
1. Pump head
2. Spare part kit to be found in the pump
package or filtration head gasket kit
item MMGASKTMM

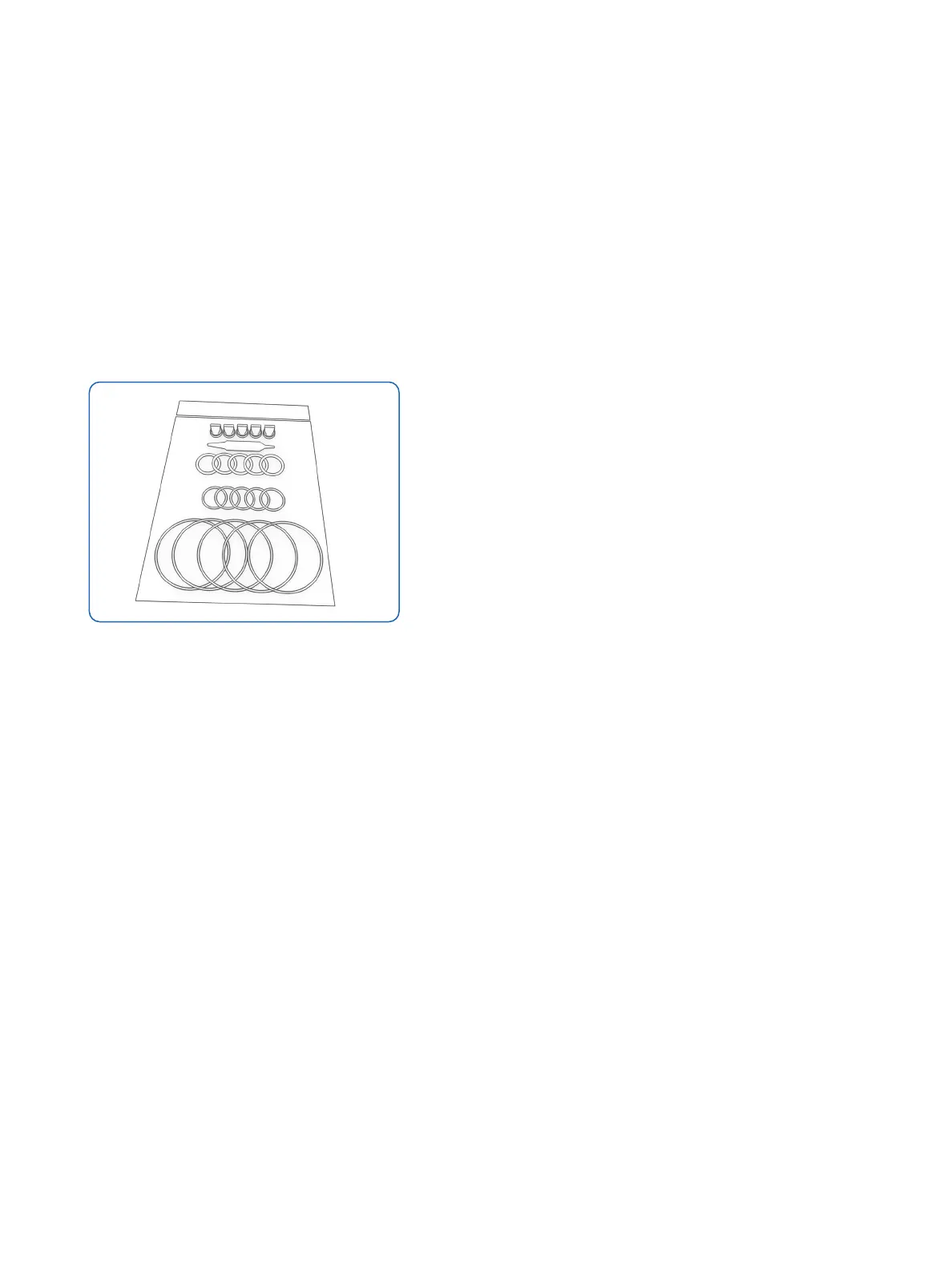

Figure 42: filtration head gasket kit
(MMGASKTMM) components
• Remove the filtration head
• Remove the gaskets and the check valve
and discard them (details in previous
chapter)
• Take out a set of gaskets and one (black)
check valve out of the gasket kit bag and
clean them using a wipe moistened with
sanitizer
• Put the new gaskets and the check valve
in place using the gasket removal tool
(details in previous chapter)
4.10 Sanitization kit
gaskets (spare parts)
replacement
Materials:
1. Sanitization kit (item MMSANKIT1)
2. Sanitization kit gasket kit (item
MMGASKTSK) containing:
• Five U-rings for funnel-to-kit tightness
• Five O-rings for kit-to-pump tightness
• Remove the gaskets (using the metal tool
provided with the gasket kit) from the
sanitization kit and discard them
• Take out a set of gaskets out of the
gasket kit bag and clean them using a
wipe moistened with one of the surface
sanitizers listed in the cleaning &
maintenance section
• Put the new gaskets in place
