Milltronics airanger XPL plus User Manual

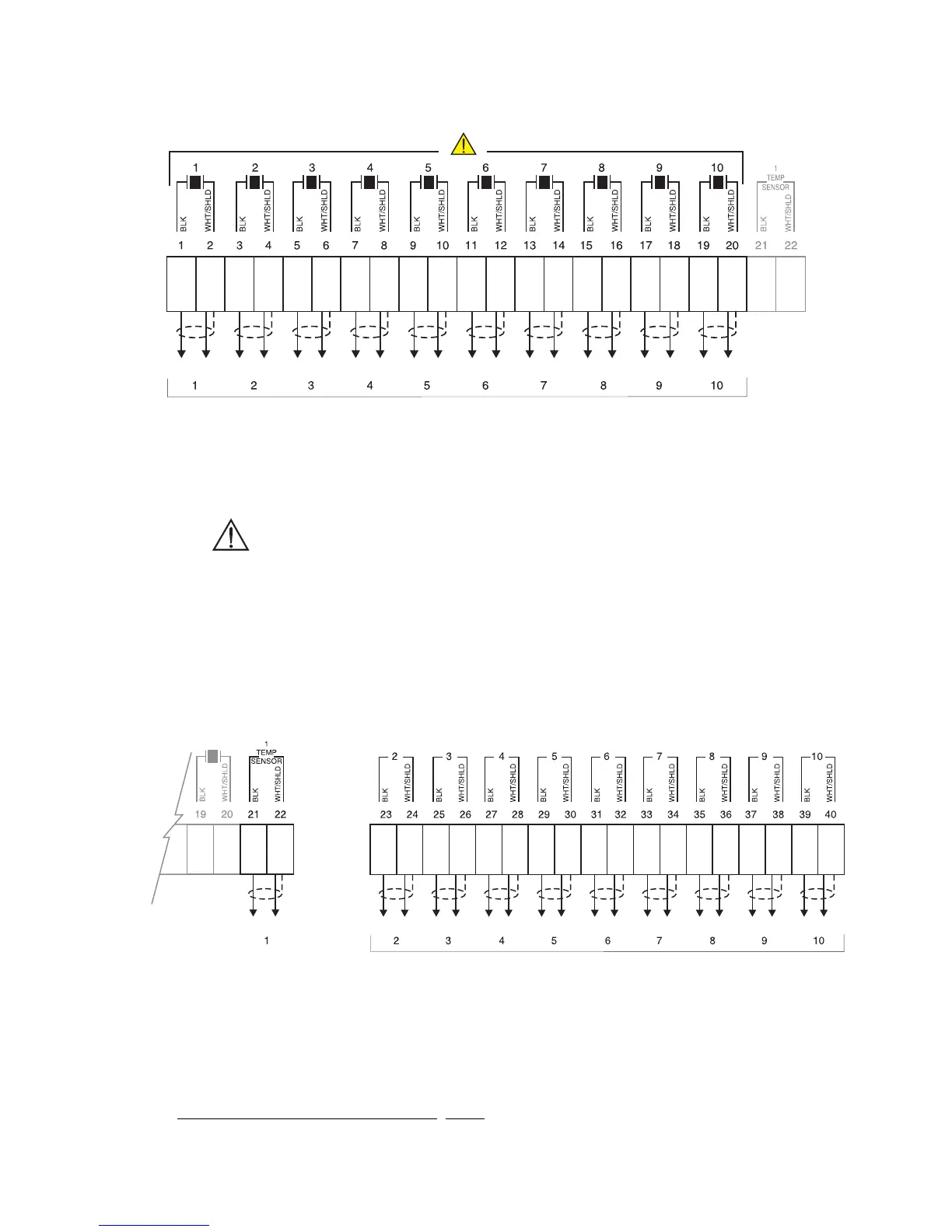

TRANSDUCER
Transducer cables must be run in a grounded metal conduit separate from other wiring
( except TS-3 temperature sensor wiring, if applicable ).
TEMPERATURE SENSOR
Use TS-3 temperature sensors only. Don’t jumper the terminals if TS-3’s are not used.
single Temp Sensor
TIB-9 card for multiple Temp Sensors (optional)
XPL+
(board B)
to additional Temp Sensors
to Temp Sensor #1
Use Belden 8760 ( or equivalent ) 18 AWG, 2 wire shielded / twisted, 365 m (1200 ft) per TS-3 max.
To Transducers (10 max), RG62 A / U Coax, 365 m (1200 ft) / Transducer max.
TRANSDUCERS
Hazardous voltage present on transducer terminals during operation.
PL-532 16
