Mindray BeneView T6 - Removing the Alarm Lamp Board

5-14

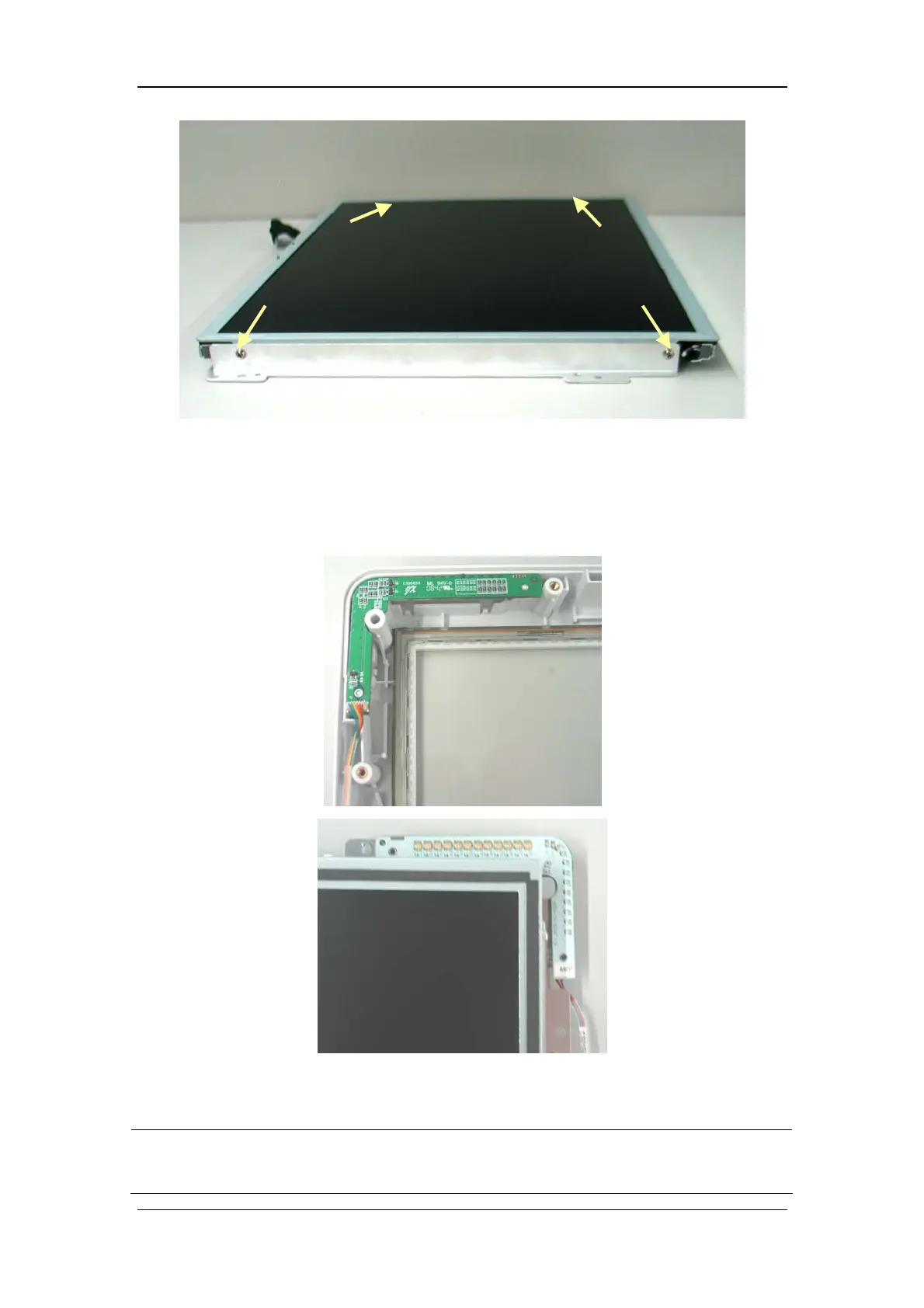

5.4.8 Removing the Alarm Lamp Board
After removing the LCD panel, disconnect the cable that connects the alarm lamp board and
the button board, and then remove the alarm lamp board on which there is no screw.
NOTE
z Exercise care when removing the alarm lamp board because it may be adhered to
the LCD assembly (as shown in the above figure).
