Mindray BeneView T6 - Removing the CF Assembly

5-17

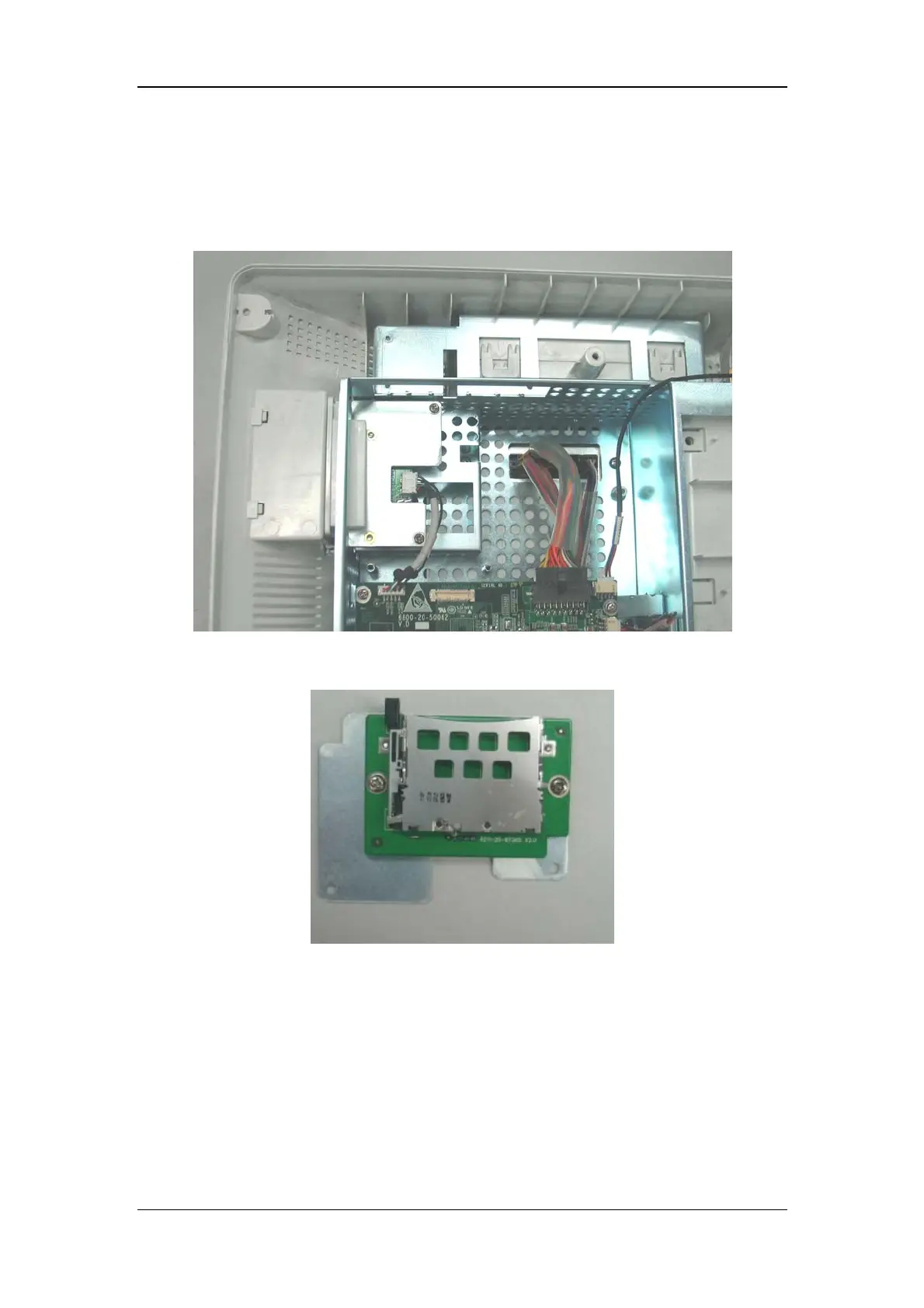

5.4.10 Removing the CF Assembly
1. Disconnect the cable between the CF driving board and main board. Unscrew the two
M3×6 screws and take out the CF assembly.
2. Unscrew the two M3×6 screws and take out the CF driving board.
