6.5.3 19” LCD Touchscreen

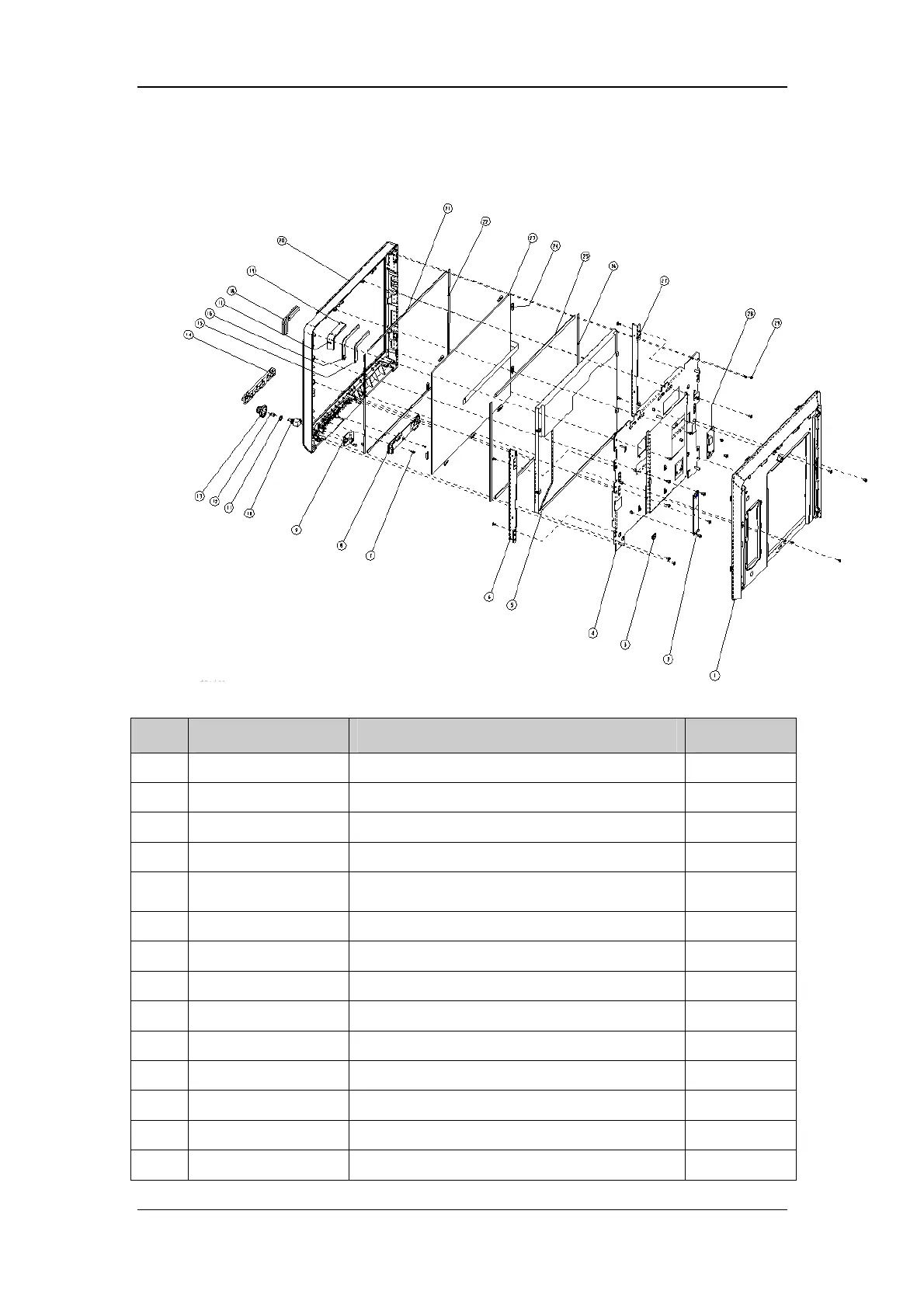

Exploded View
Parts List
SN P/N Description Qty
1 043-003550-00 Middle frame(T9) 1
2 051-001516-00 LED backlight adapter board 1
3 0000-10-10996 Leaf, 92-047 1
4 042-009881-00 Bracket (19”) 1
5 021-000137-00 LCD screen, TFT,19" 1
6 042-009883-00 19"right fixing bracket 1
7 M04-003105--- Tapping screw PT3×8 3
8 6800-30-50084 Button board 1
9 042-000693-00 Knob mounting plate 1
10 0000-10-10789 Optical encoder 1
11 0651-20-76773 Waterproof strip for encoder 1
12 M6T-040001--- Clamp spring, 1707P 1
13 0651-20-76735 Knob (mould MR76734) 1
14 6800-20-50198 Silicon buttons 1
