Mindray BeneView T6 Service Manual

5-21

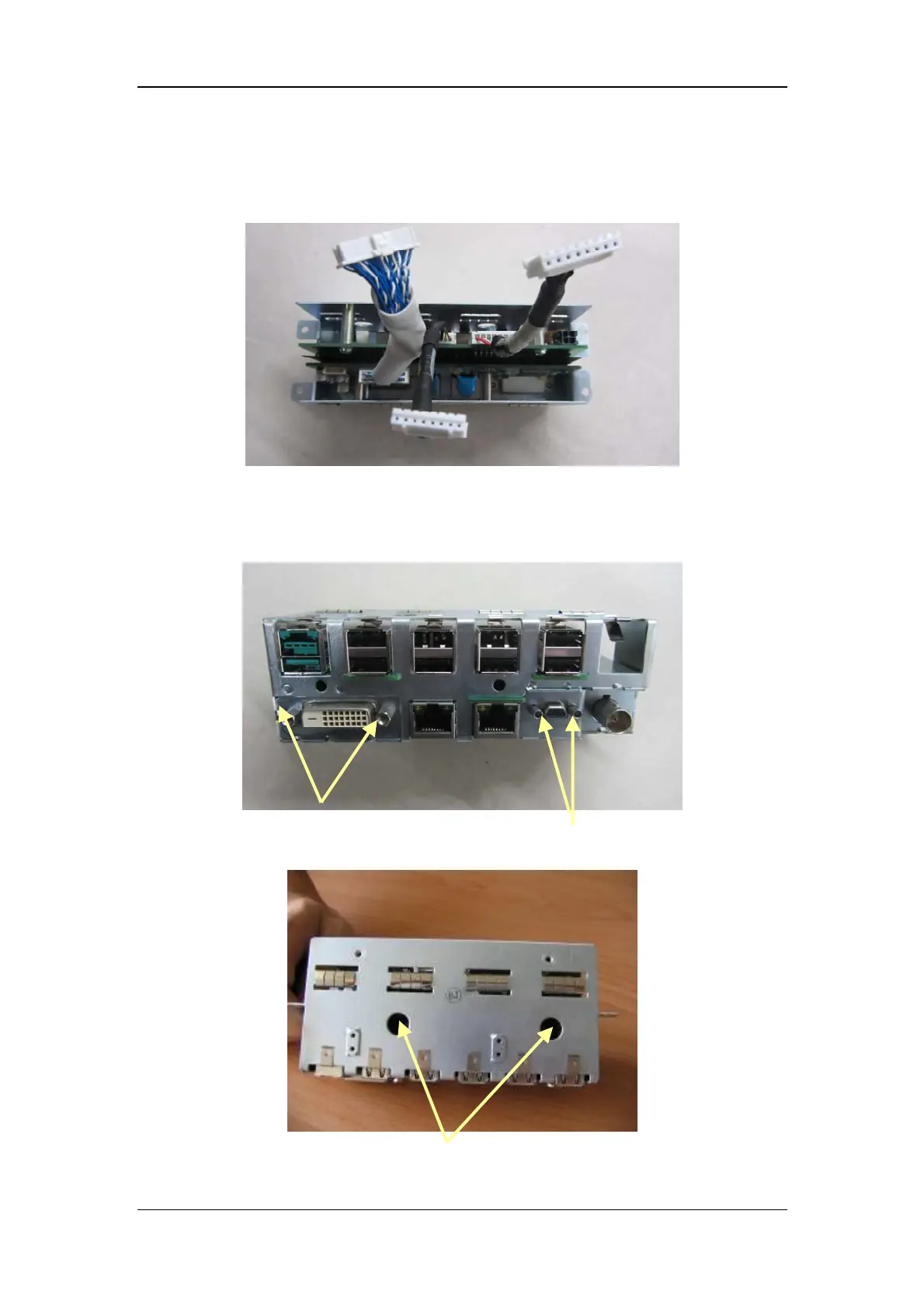

5.4.14 Removing the Interface Board Assembly
1. Unscrew the four M3×6 screws and remove the interface board assembly.
2. Unscrew the screws beside the DVI socket and micro-D socket. Then unscrew the two
M3×6 screws in the holes. After that, pull out the DVI interface board.
Screws beside DVI socket
Two M3×6 Screws in Holes
Screws beside micro-D socket
