6.7.2 SMR Inside Assembly

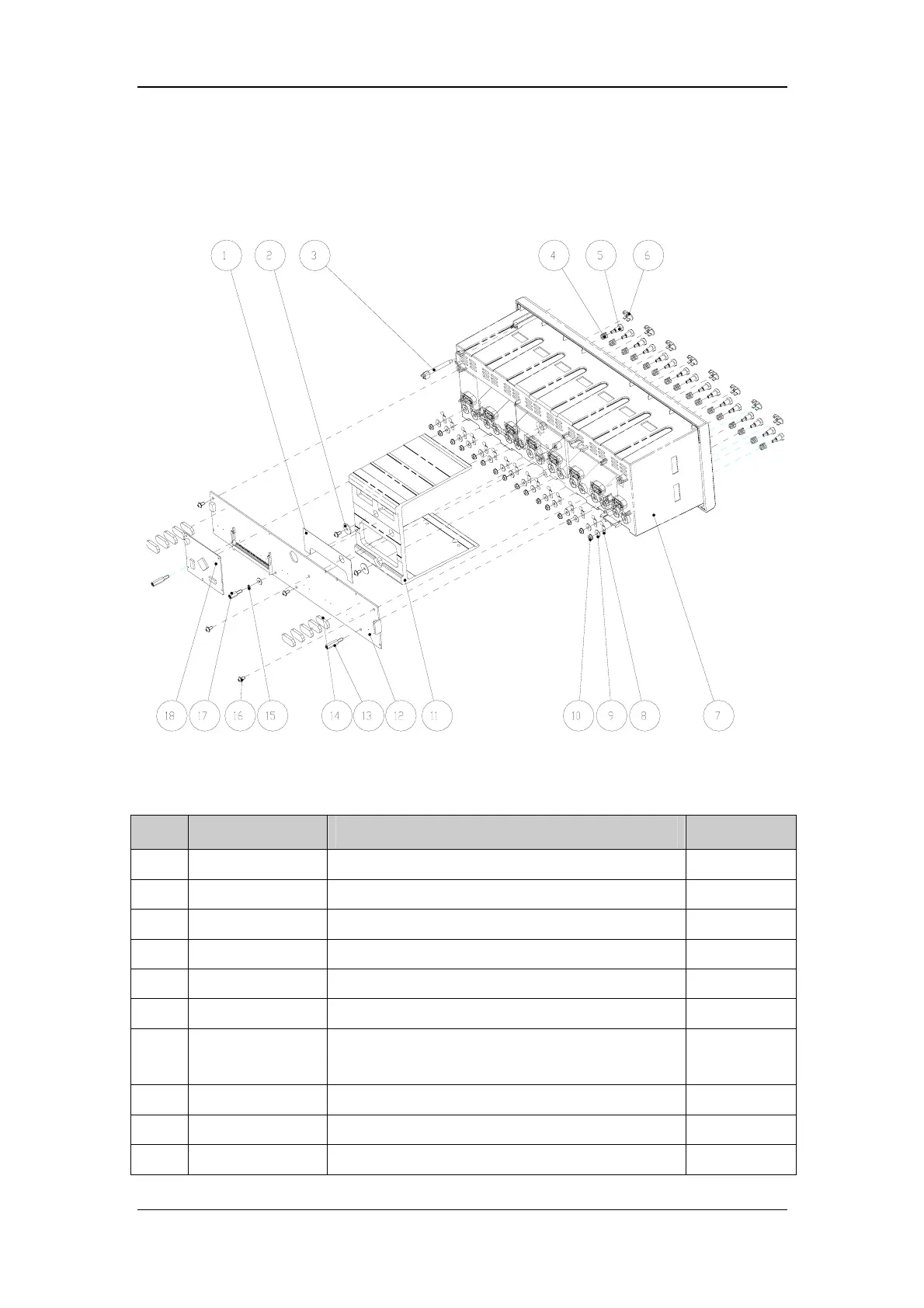

Exploded View
Parts List
SN P/N Description Qty
1 6800-20-50519 Insulating plate 1
2 9201-20-36010 Torsion spring washer 2
3 6800-20-50256 Light conducting pole 1
4 6800-20-50261 Contact spring 16
5 6800-21-51100 Contact screw 16
6 6800-20-50279 Infrared light filter 8
7
6800-20-50249 or
043-004118-00
SMR inside assembly 1
8 6800-20-50388 Leaf 16
9 M04-021024--- Washer 16
10 M04-011002--- Hex nut assy 16
